Just a quick few snaps of a set of arms ive been working on.
these are for the 97-03 F-150/Expo/etc... 2wd trucks. These specific arms are narrowed 1.5" on each side, and convert the lower control arm into a flipped chevy ball joint that will mount onto the spindle from the bottom side.
The uppers are Jeebus Joint and bolt directly into the stock spindles with no mods necessary. They get 12 degres more travel than the stock joints, and with the pitch i put the cup at, will lay a 26.
Im going to post more cleaned up pics, with the ball joints and Jeebus Joints installed later this week.
these are for the 97-03 F-150/Expo/etc... 2wd trucks. These specific arms are narrowed 1.5" on each side, and convert the lower control arm into a flipped chevy ball joint that will mount onto the spindle from the bottom side.
The uppers are Jeebus Joint and bolt directly into the stock spindles with no mods necessary. They get 12 degres more travel than the stock joints, and with the pitch i put the cup at, will lay a 26.
Im going to post more cleaned up pics, with the ball joints and Jeebus Joints installed later this week.
2001x
+1y
werd...well ill see if kevin has paypal and see if he can send it out to ya. zip code is 28117 mooresville nc
2001x
+1y
kevin does have paypal...let me knwo the addy you want it sent to and itll be there tomorrow suga
jeebus @ mmw
+1y
--------------------------------------------
plyrh8r1 said:
anything in the works for 2004 ford explorer
--------------------------------------------
Nothing as of yet, but thats not to say someone wont call tommorrow and order a set. If you need a set, i will make them, its that simple really, i will make them custom to your vehicle specifically.
Taylor
plyrh8r1 said:
anything in the works for 2004 ford explorer
--------------------------------------------
Nothing as of yet, but thats not to say someone wont call tommorrow and order a set. If you need a set, i will make them, its that simple really, i will make them custom to your vehicle specifically.
Taylor
jeebus @ mmw
+1y

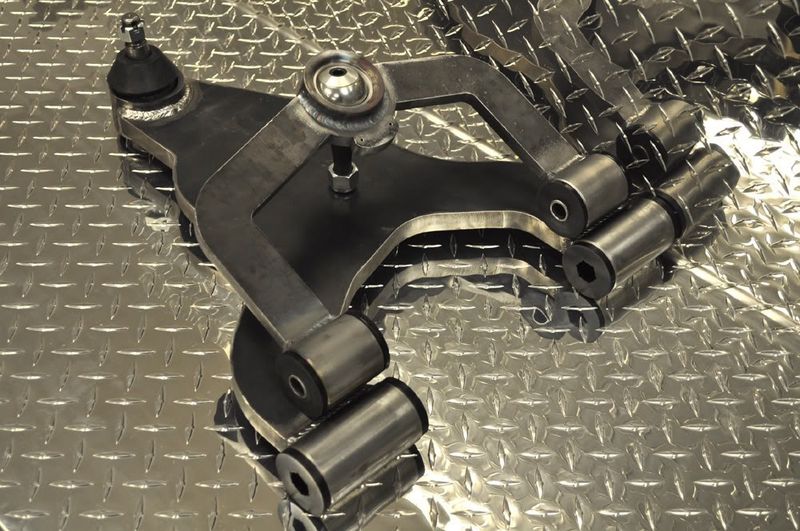

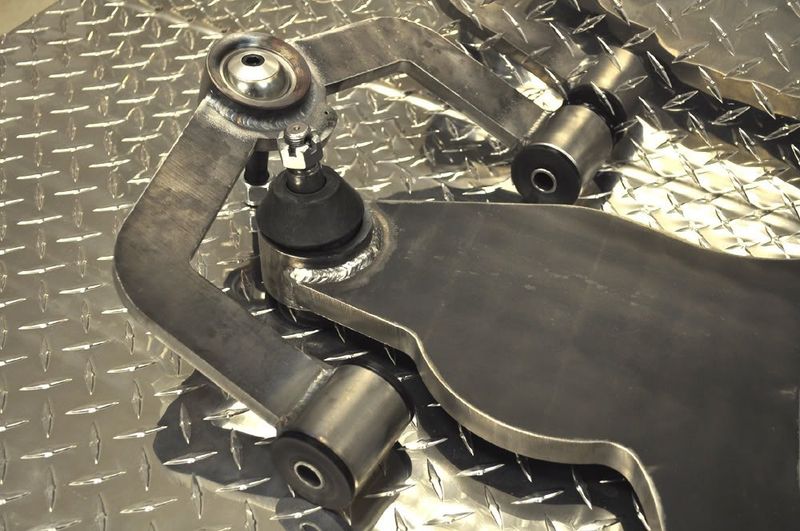

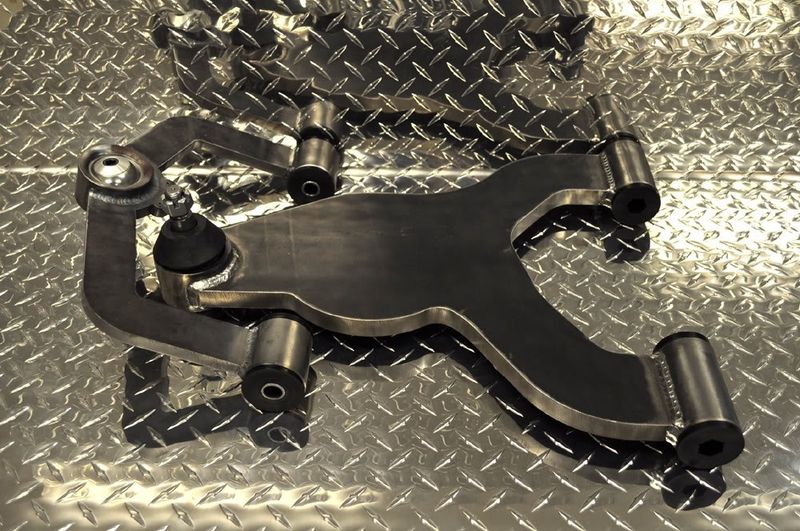

Ok, here are some cleaned up and assembled pics of the 97-03 F-150/Expo/ST arms.
This specific set was narrowed 3" to help lay on a 26. The lowers convert the lower ball joint to a chevy ball joint that flips it to the bottom side of the spindle, and gains 2" of extra drop. The upper are my Jeebus Joint version, tapered to fit a stock spindle, and an angled cup to lay on a 26.
These are available narrowed any amount needed, and also with stock ball joints if necessary.
899$ for the set like this, just a hair more for stock ball joints.
This specific set was narrowed 3" to help lay on a 26. The lowers convert the lower ball joint to a chevy ball joint that flips it to the bottom side of the spindle, and gains 2" of extra drop. The upper are my Jeebus Joint version, tapered to fit a stock spindle, and an angled cup to lay on a 26.
These are available narrowed any amount needed, and also with stock ball joints if necessary.
899$ for the set like this, just a hair more for stock ball joints.
CadeCustoms
+1y
Hey taylor, get at me so i can get the rest of that payment to you bro. i sent you an email, not sure if you got it or not. either email me at cudruln@yahoo.com or give me a shout at 949-254-6562. once again im sorry it took so long for everything. after the truck is painted and this suspension is in its gettin featured for a few mags. once again, i really appreciate your help and patience with me. Your customer service and patience is amazing.
jeebus @ mmw
+1y
Just a couple of pics from the shop this week...

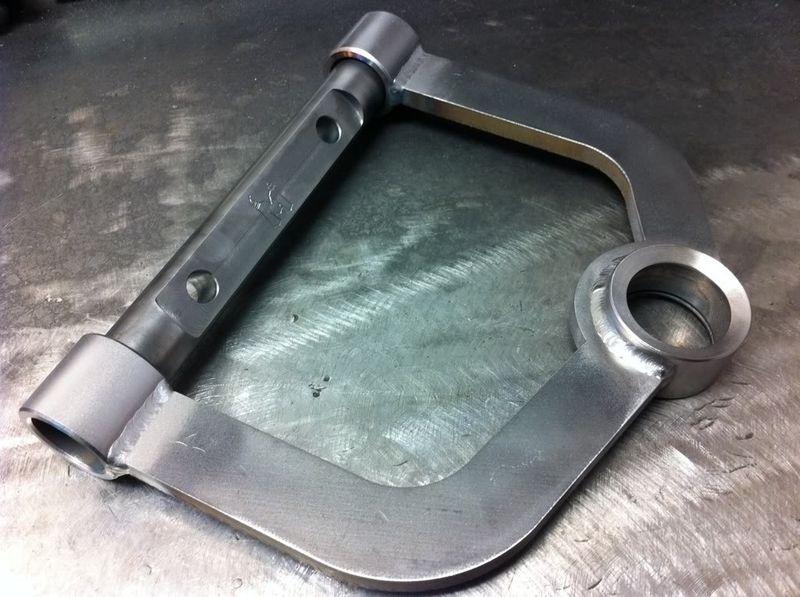

Set of Jeebus Joint C-10 Upper arms. Cleaned after welding, and ready to go get some powder coat. I had some people on a welding forum ask if i metal finish my welds when im done, to make them appear smooth like that. Nope :)

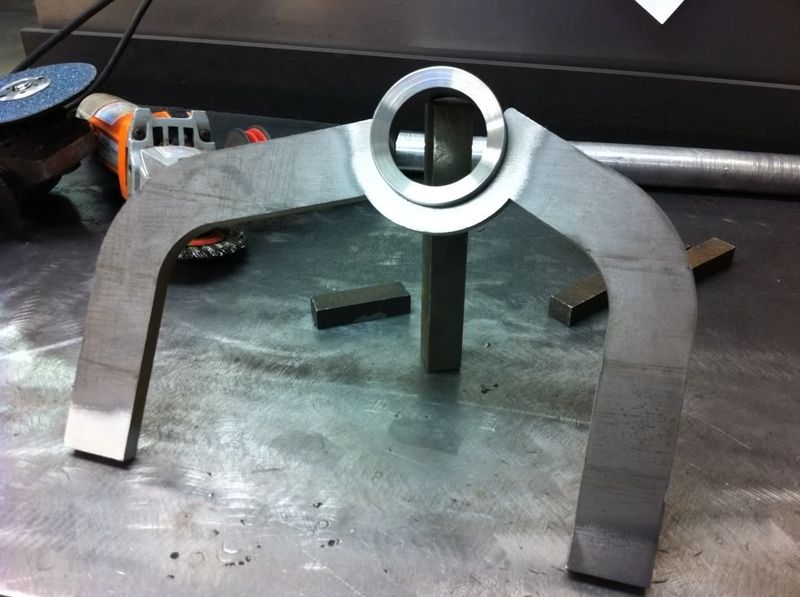

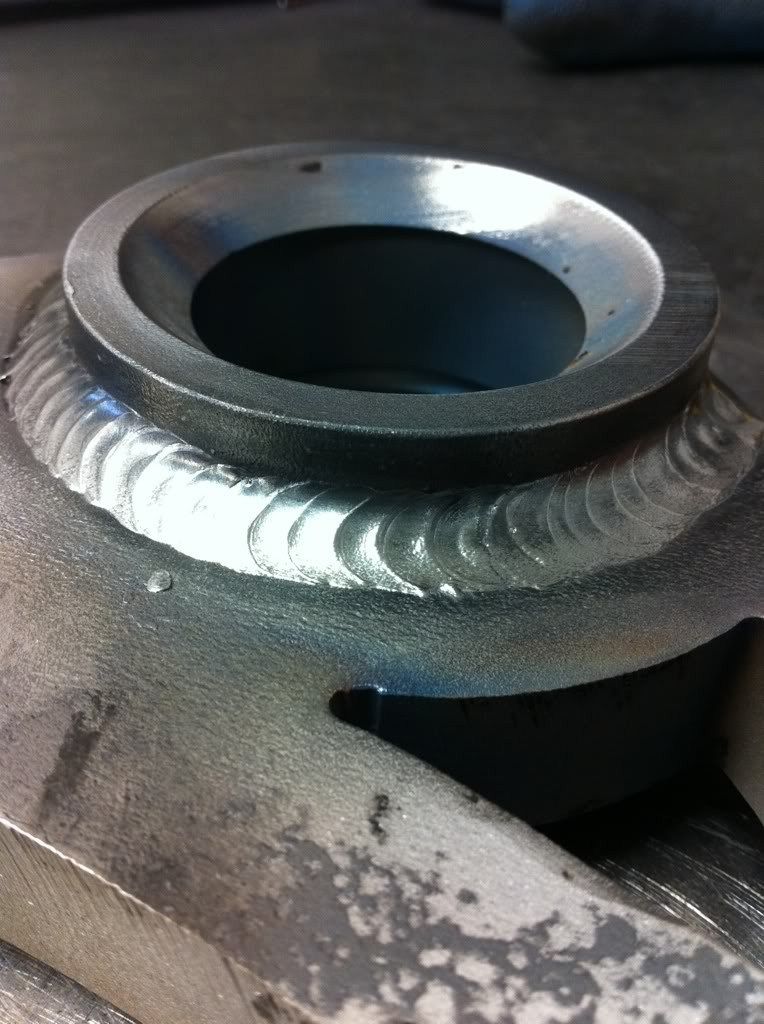

This is a upper control arm for the Stoute ram build. I was going for an exaggerated "stacked dime" appearance. Its going to look really cool under the powder coat i have chosen for these arms.

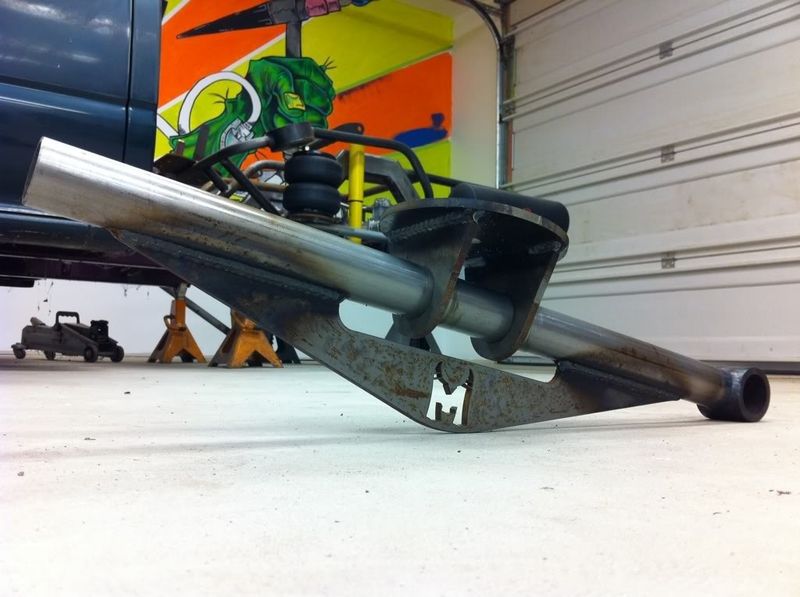

This is a quick adjustable cantilever link bar that i put together. Its able to be adjusted on site so that the customer can put the bracket just where it needs to be, but still have a solid welded bar.
Set of Jeebus Joint C-10 Upper arms. Cleaned after welding, and ready to go get some powder coat. I had some people on a welding forum ask if i metal finish my welds when im done, to make them appear smooth like that. Nope :)
This is a upper control arm for the Stoute ram build. I was going for an exaggerated "stacked dime" appearance. Its going to look really cool under the powder coat i have chosen for these arms.
This is a quick adjustable cantilever link bar that i put together. Its able to be adjusted on site so that the customer can put the bracket just where it needs to be, but still have a solid welded bar.
