josh   +1y
good stuff man. are you going to z it? id z it that 3/4 of an inch then your frame will lay and the x-member wont hold ya up. drop spindles will push your tires out.

josh
bodied b2600zx (josh)   +1y
Thanks for the comments guys! And LVNLO, its not gonna be movin anytime soon.. Its gettin the independent rear suspension, body drop and fe3 motor swap so it'll be in the garage a quick minute haha.

And Josh, that sounds like a good idea, I'll wait and see where it sits after I cut the firewall out and actually get the wheels I'm gonna run, and I'll probably Z it that much... I really don't want to run drop spindles, I like all stock stuff.. And the camber is SEXY
munfordsoccer21   +1y
4 wheel camber is o so sexy!!!!
munfordsoccer21   +1y
hey bro leavin tomorrow for basic the truck looks awesome i cant wait to see it when i get out keep up the flawless work and post plenty of pics.....later man
bodied b2600zx (josh)   +1y
Thanks kenny. I'm gonna miss you bud!!! I know you'll be doin great things!! You better fly me to where ever you get stationed and settled down!

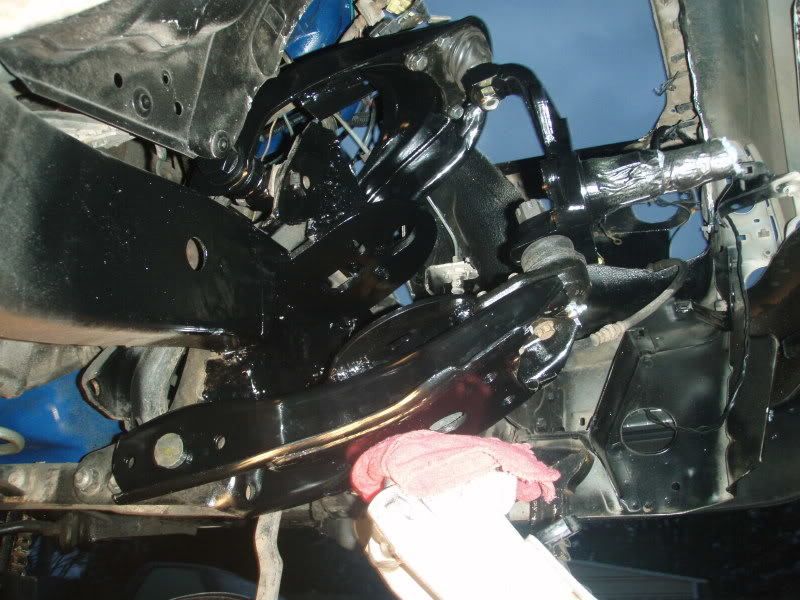

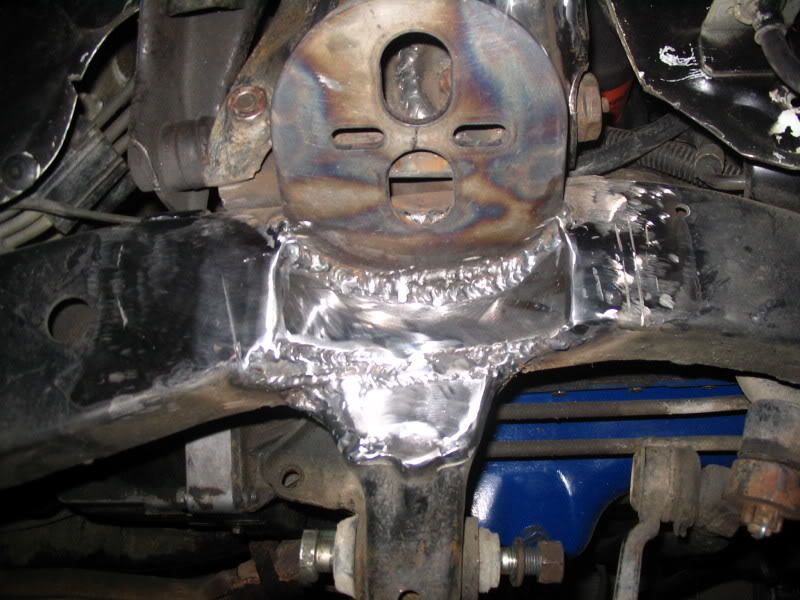

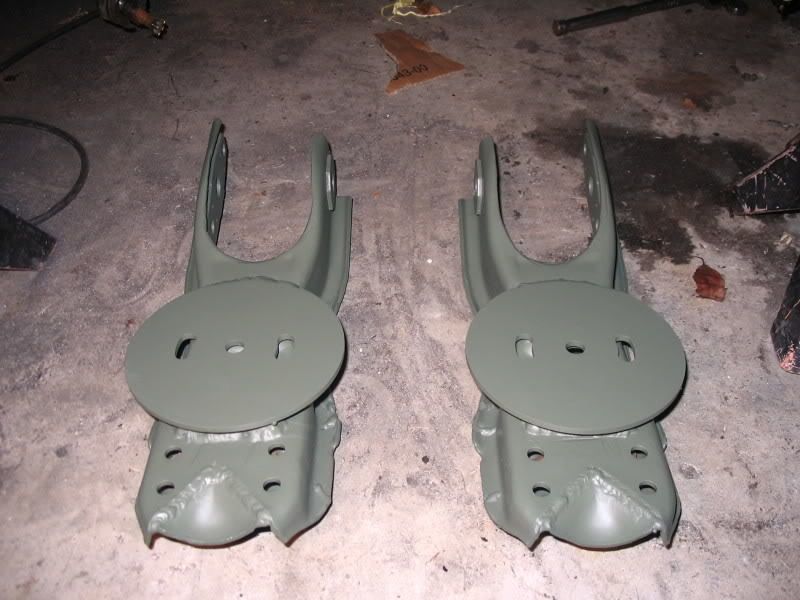

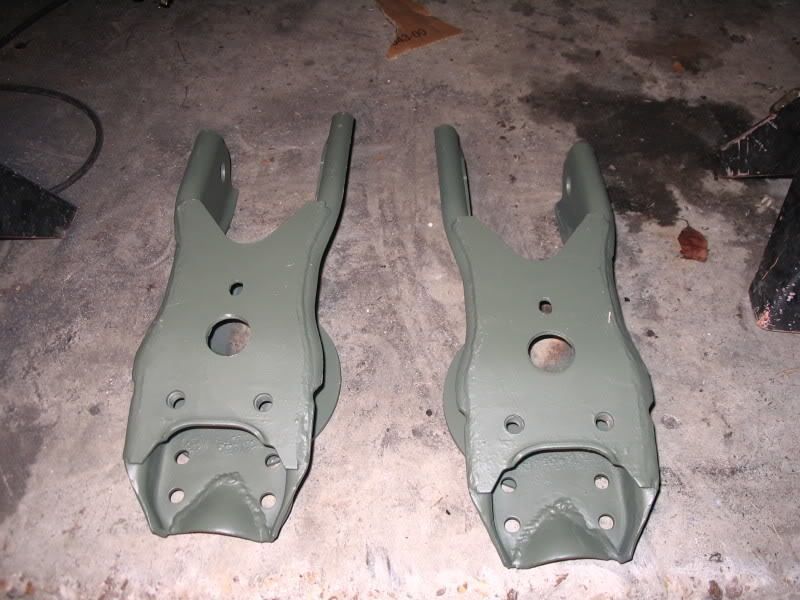

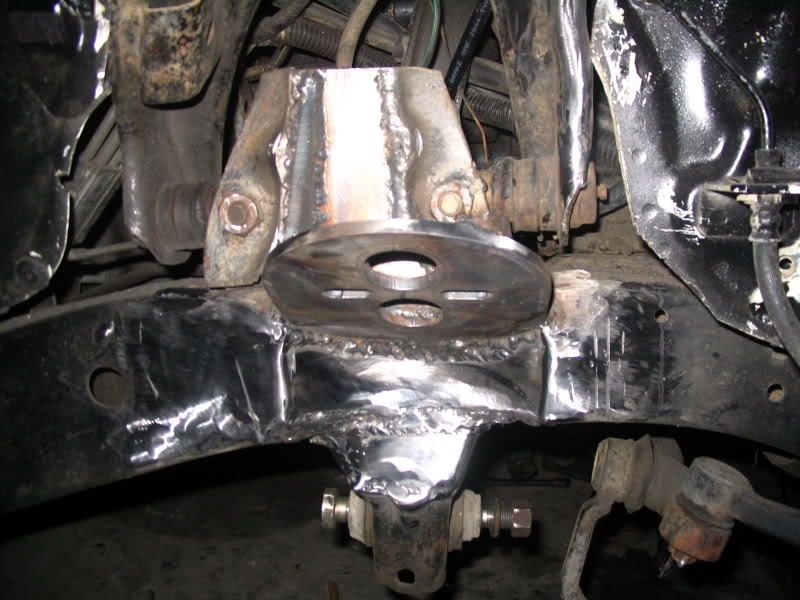

I wasnt gonna post these pics cuz its such a small update but why the hell not.. here ya go... got the pass side done and ready for paint... and I got the driver side lower control arm done too. I haven't started cuttin for the bag yet though, sorry kenny!!

thread post photo


thread post photo


thread post photo


thread post photo
munfordsoccer21   +1y
omg thats so sexy!!!!!
bodied b2600zx (josh)   +1y
Ok, I'm postin this here too so maybe I can get some help...

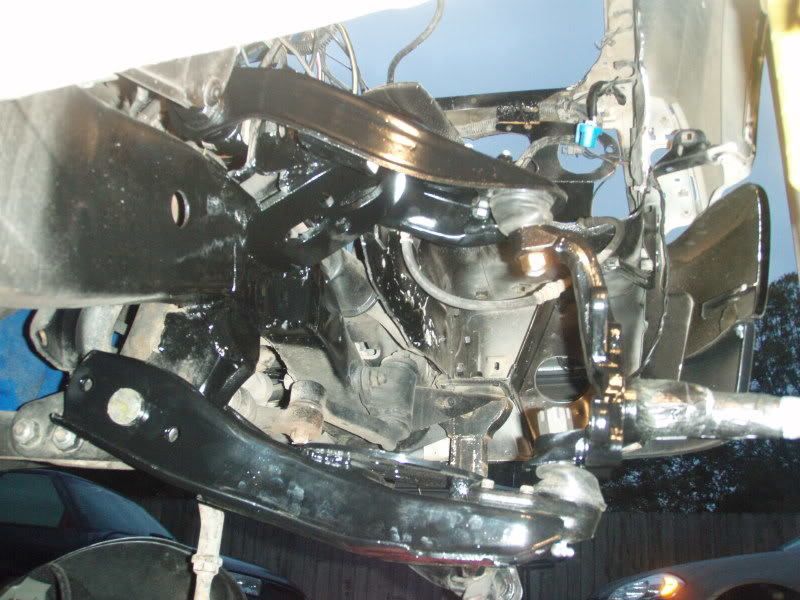

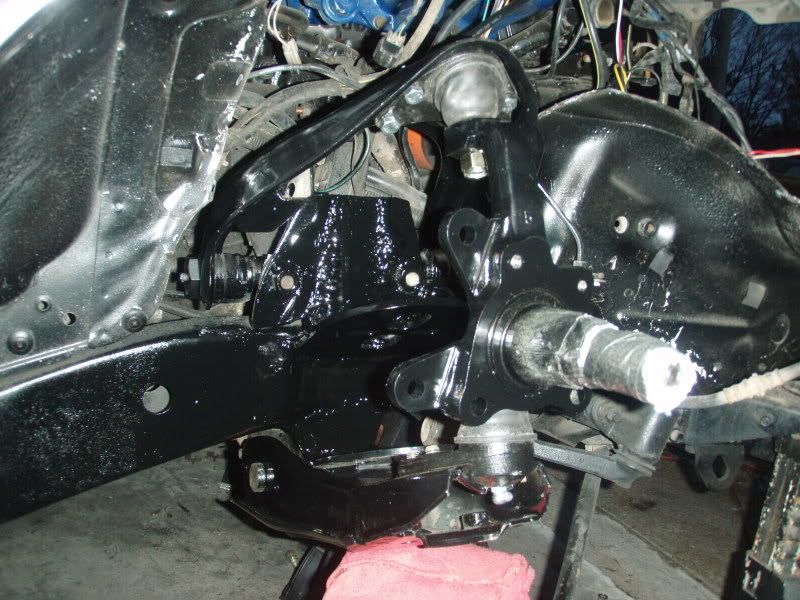

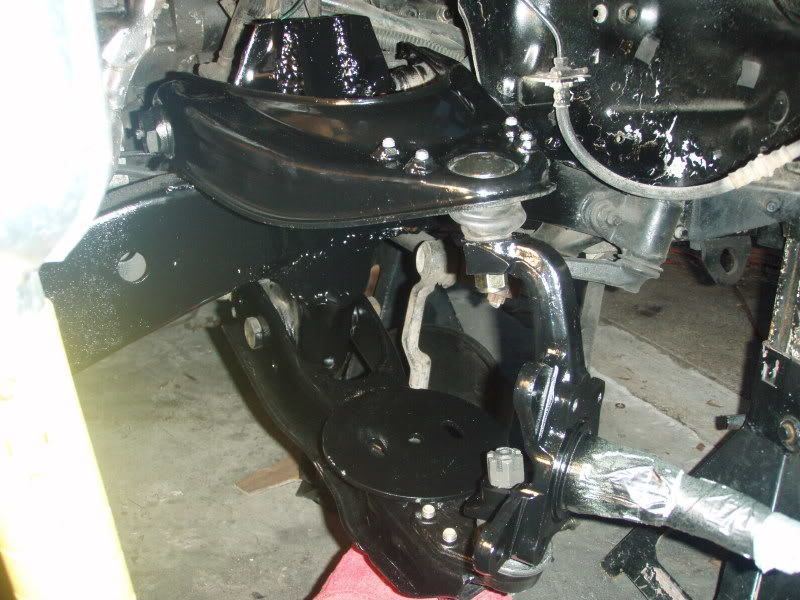

Well i went out and played with the ball joints a lil and took some measurements... It was quite surprising actually. The lower ball joint is locking out and restricting the amount of lift i will be able to get. And the upper ball joint is restricting the drop.. obviously I guess. I measured the tip of the spindle at full lift and full drop and there was only 9 inches of travel... That really sucks. If I unbolted the upper ball joint, I got another 2.5" of travel up from the lower control arm. So I think I should reverse pie cut my uppers and I was thinkin bout puttin a couple washers under the outer 2 lower ball joint bolts to angle it up a lil and maybe get a lil more lift Here's a few pics to show you full lift and drop....

thread post photo


thread post photo


thread post photo


thread post photo
bodied b2600zx (josh)   +1y
ok.. i messed with the lower ball joint and loosened the outer 2 bolts and got it to angle up and i can get 2 more inches of lift before it binds back up... I'm not sure if it'd effect the drop of the truck yet... I'm gonna go mess with that now..
bodied b2600zx (josh)   +1y

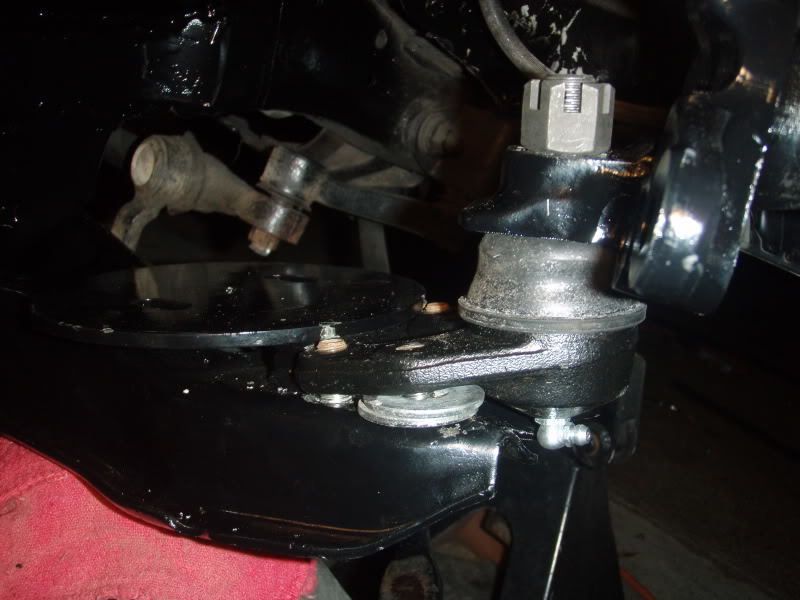

This is the lower ball joint, it doesn't bind on the way up and still gets the same amount of drop with actually plenty of room left to travel up...

thread post photo



I'm gonna screw up the paint and weld these washers on and grind em and make em look like they're supposed to be there...


And the upper arm, i'm gonna reverse pie cut it so the ball joint won't bind up so early and maybe i can get a couple more inches of drop... well as much as the bag bracket will allow
bgdb26k   +1y
Josh, your lower ball joint is facing the wrong way, you need to flip it so the threads are facing the ground!!
like this:

thats probably where your binding up issue is coming from
