anguswilly   +1y
Well you'll need to be prepared for some more fabbing.

Depending on your goals you should pick the smallest turbo you can.

Don't be afraid of a china turbo but buy from a reputable source. Personally I think it's hardly worth it for most guys with these trucks to spend big bucks on a turbo.
rokg   +1y



Are you going to go FI or stick with blow thru?

Also, do you think you could pm me the list you sent chromeghost when you havr time? I would really appreciate it.

Thanks,
cory_watson   +1y
I would love to go fuel injection but ill stick with blow thru for now. if I could find a probe locally I would pull the FI parts and switch it over. as for turbos I bought a holset hy35 from a dodge cummins, there is a lot of information about the f2 engines running them on the mx6 and probe forums. im prepared to fabricate as well. along with the turbo I bought a AEM uego wideband, t3 flange, stainless oil lines, 3" vband exhaust flange, and a few odds and ends. I still plan to buy a external wastegate before the install
anguswilly   +1y
You should Pm or better yet email me (ctpwrc at gmail dot com)

I have the probe setup (EVERYTHING) in a box here.

Also I have lots of ext. wastegates and other stuff too
cory_watson   +1y
emailed you angus
rokg   +1y
Is the blow thru turbo a viable option on the FE motor?
cory_watson   +1y

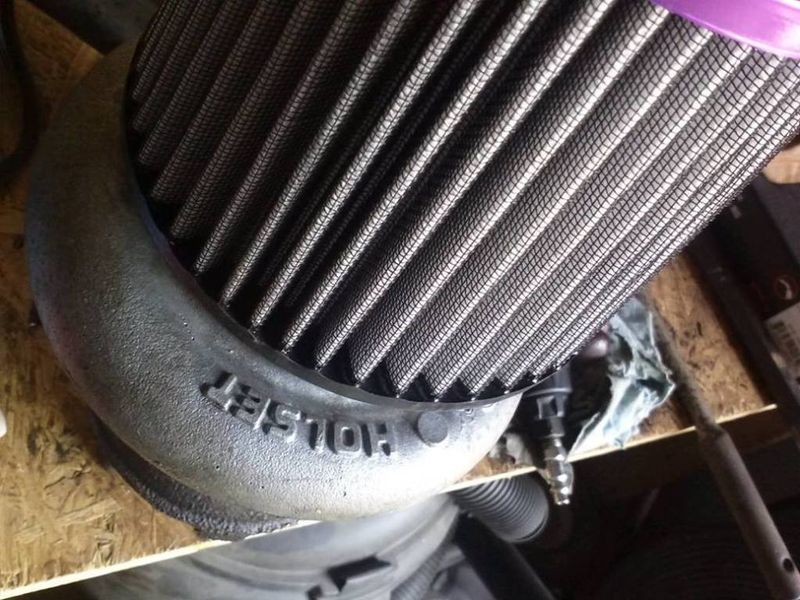

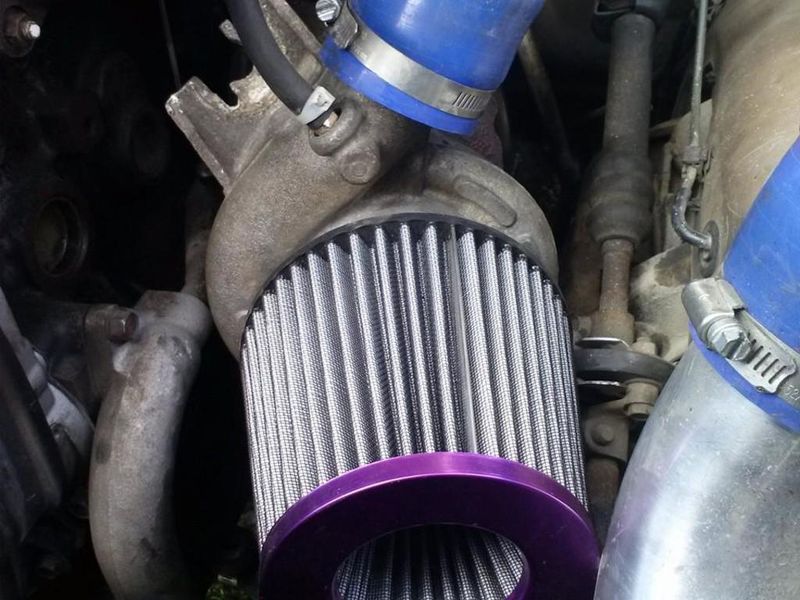

made some progress on getting the holset ready for my truck
thread post photo

image upload

thread post photo

image upload no limit

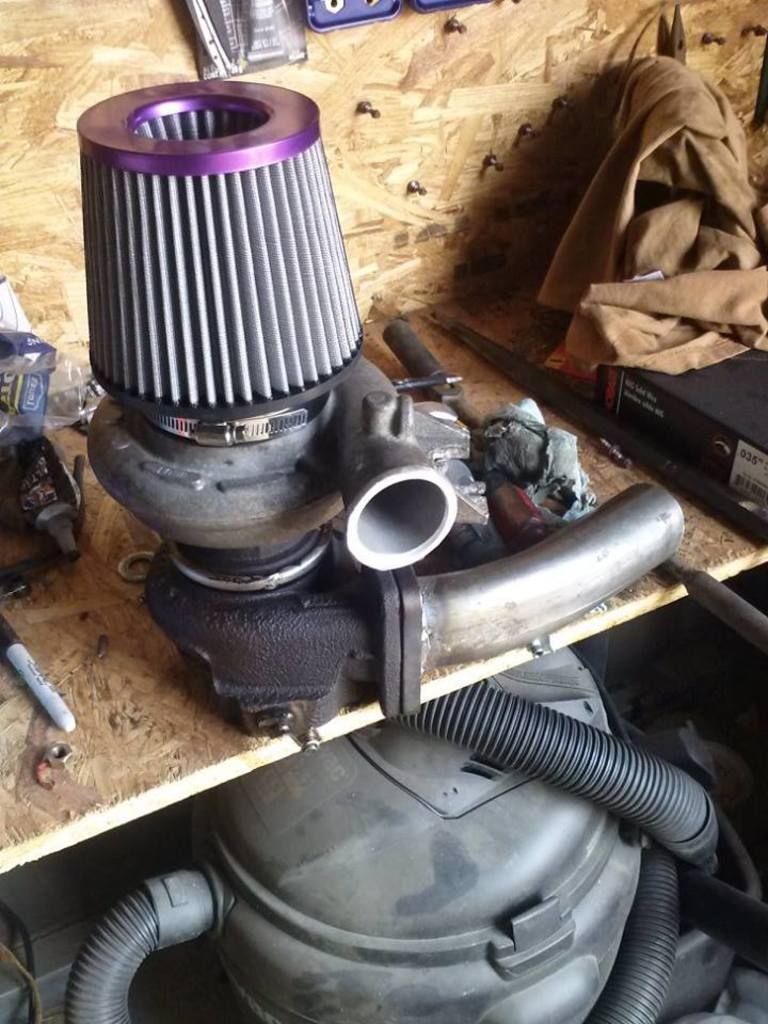

decided to use DOM tubing for the crossover between the manifold and the t3 flange. I am also going to add braces once it is test fitted
thread post photo

post a picture

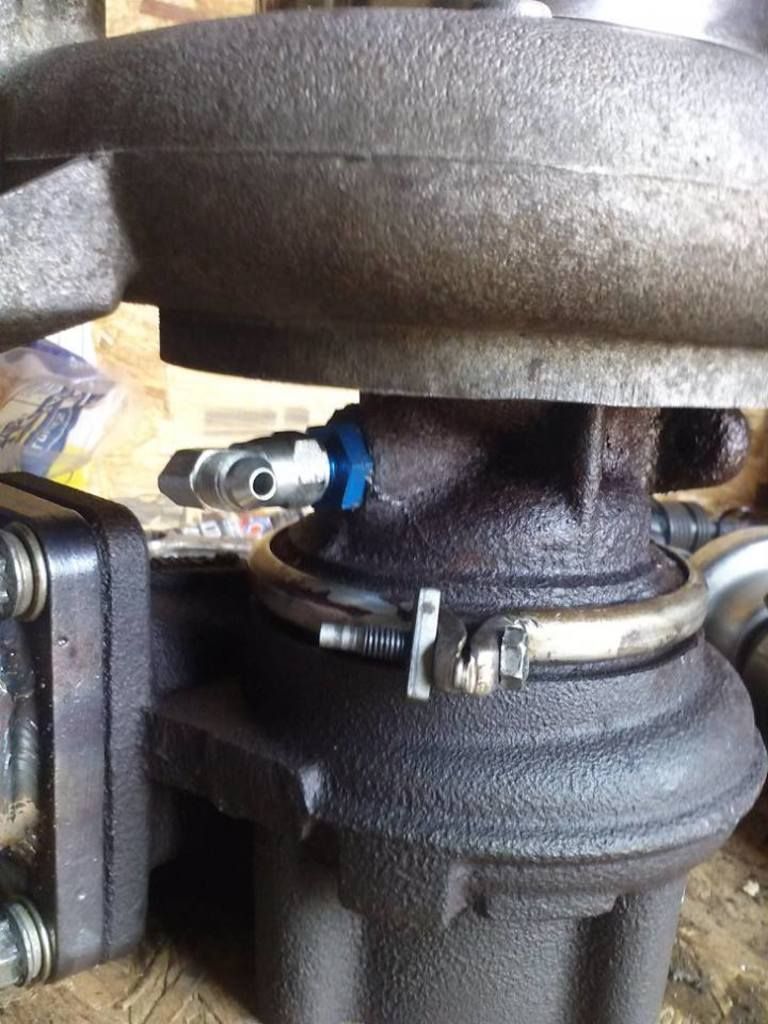

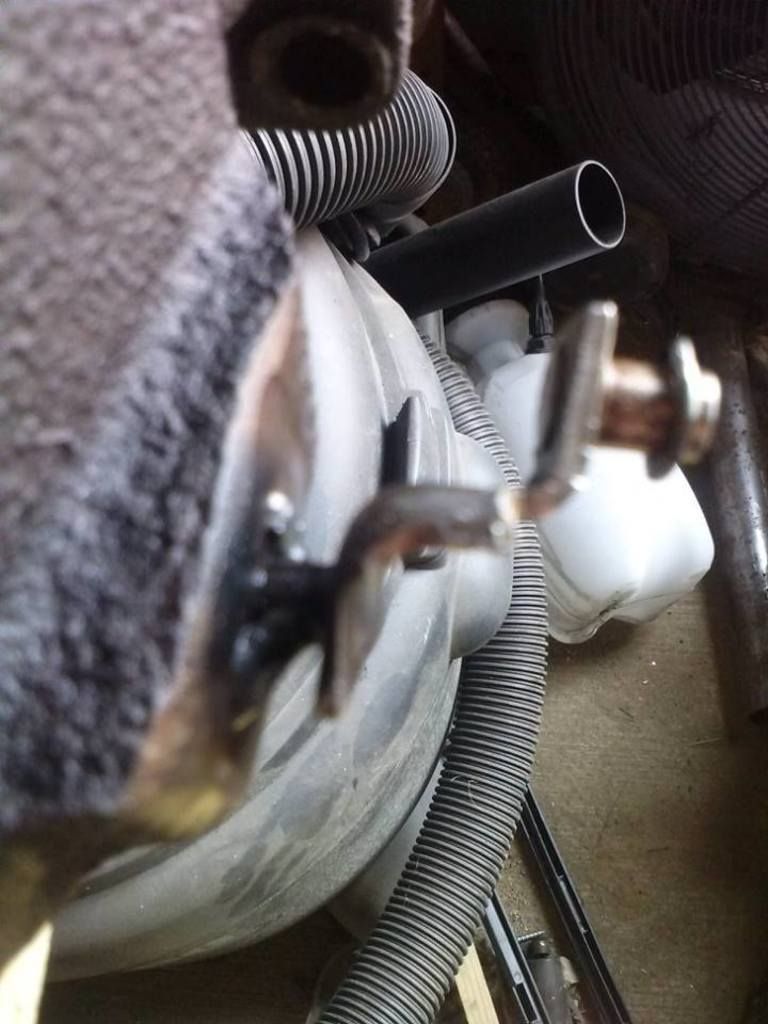

wastegate welded shut
thread post photo

img hosting

thread post photo

photo upload

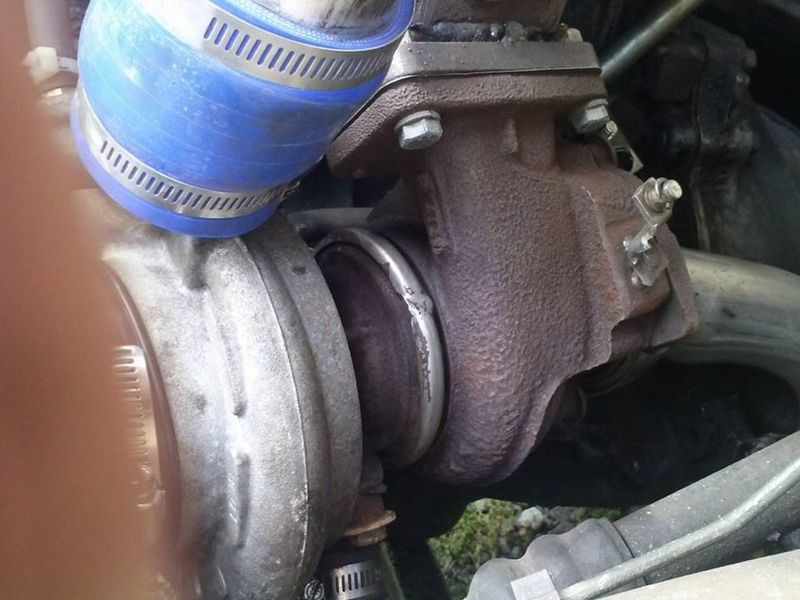

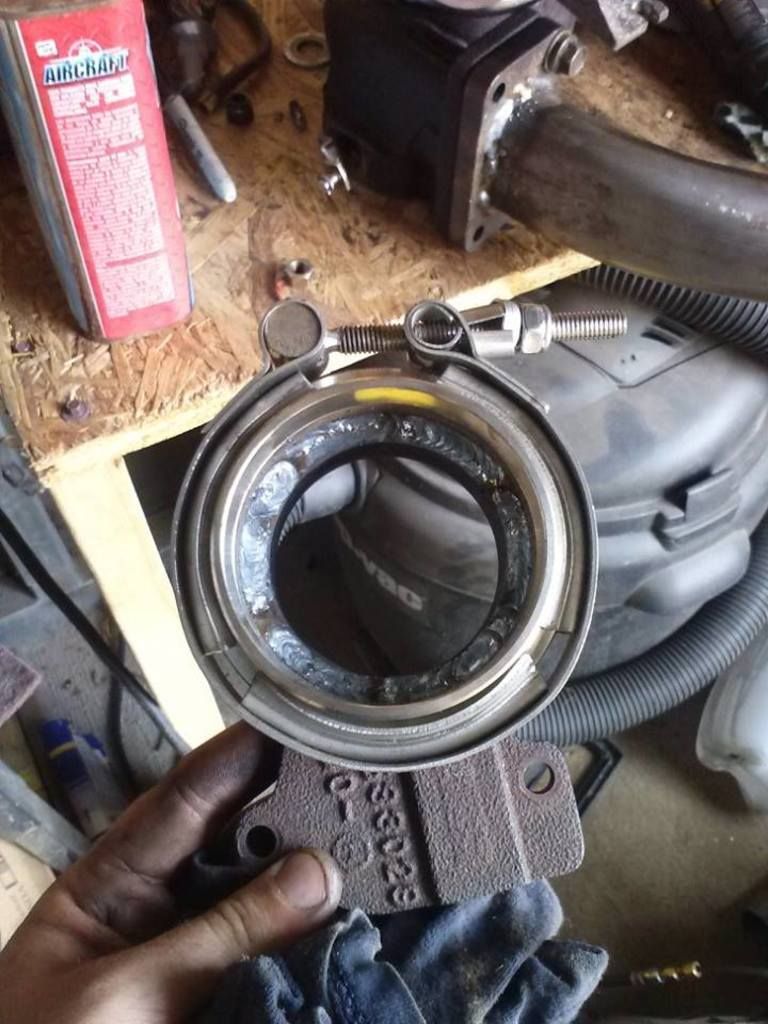

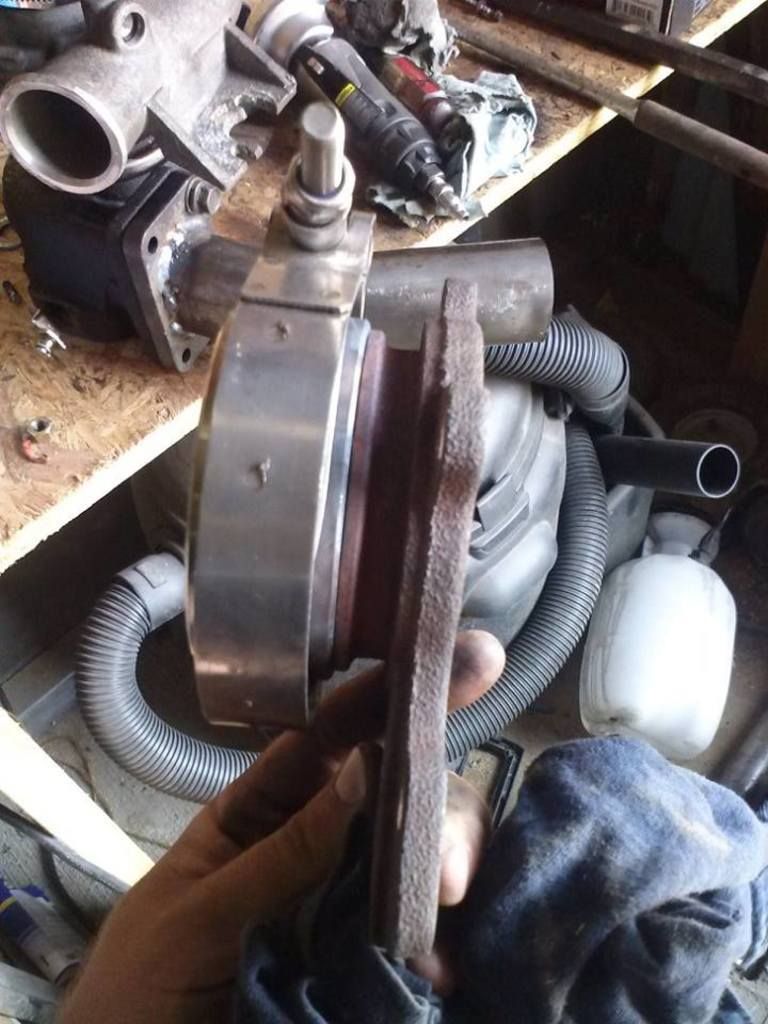

3" vband clamp welded to the factory holset exhaust flange
thread post photo

free photo hosting
thread post photo

uploading images
cory_watson   +1y

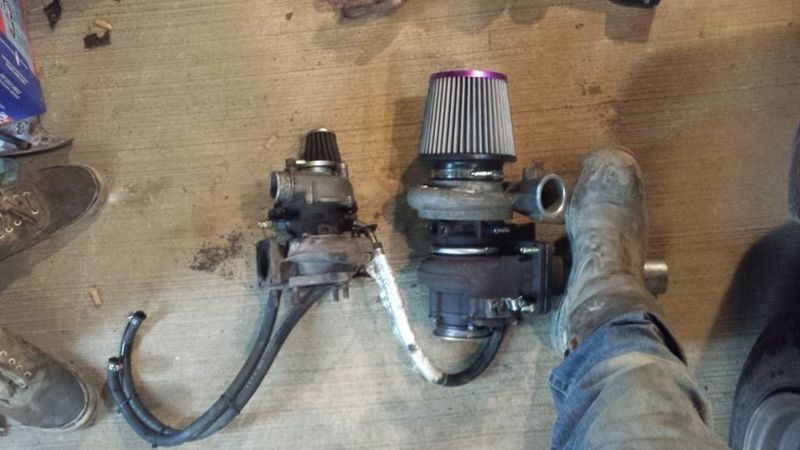

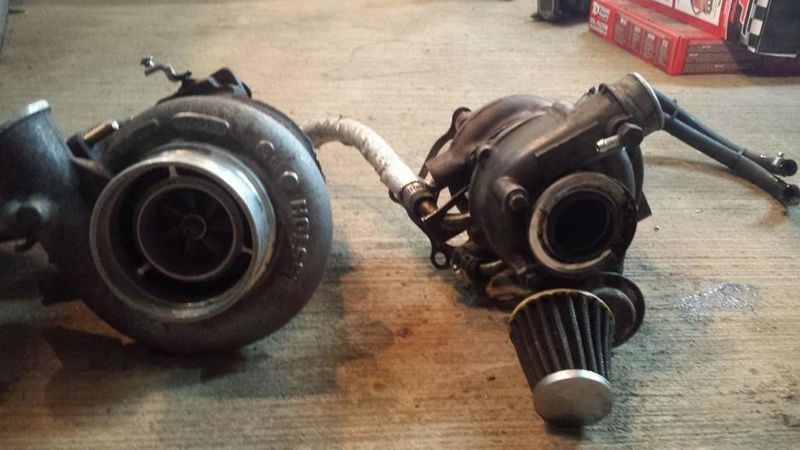

size comparison
thread post photo

image hosting free no registration

thread post photo

[url=app.php:1mm7m51n" target="_blank" rel="nofollow">php:1mm7m51n]how do i print screen

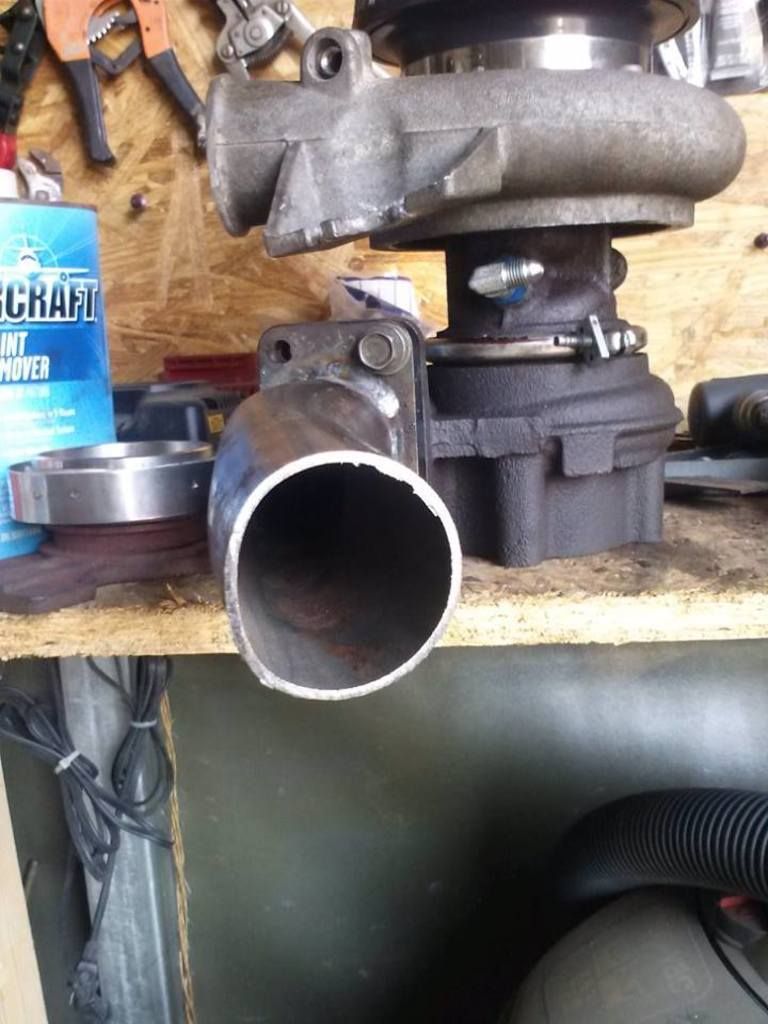

t3 flange is welded inside and out to the manifold
thread post photo

images upload

thread post photo

free image host

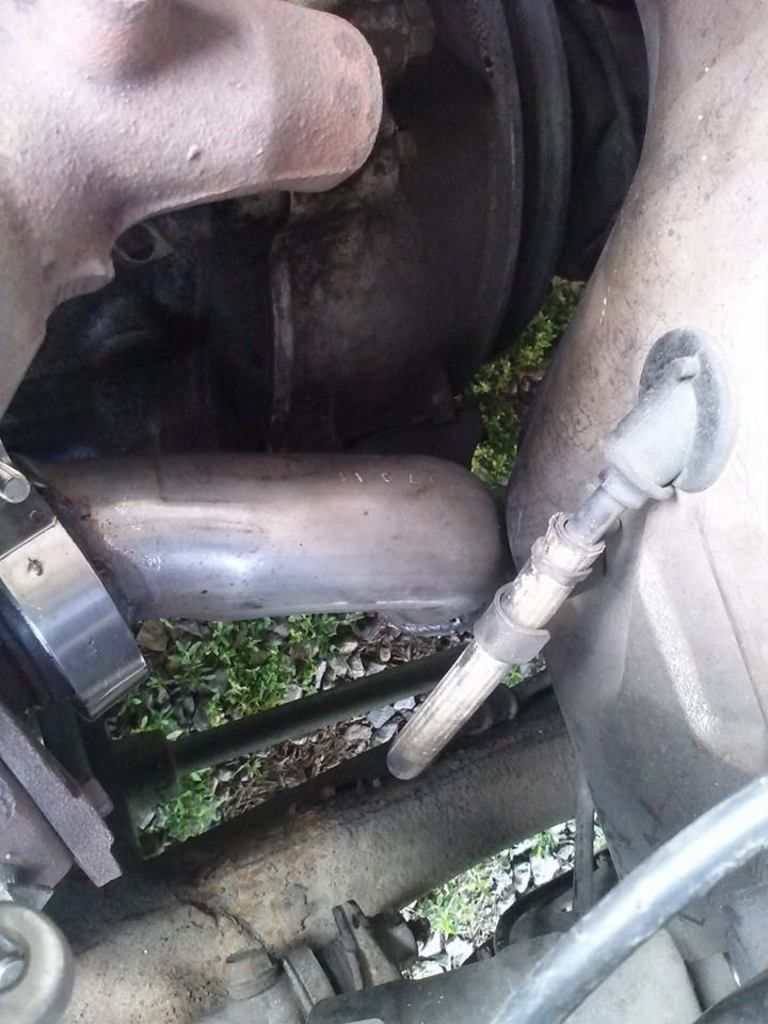

2.5" down pipe, exhaust shop couldn't bend 3inch tight enough to fit.
thread post photo

[url=app.php:1mm7m51n" target="_blank" rel="nofollow">php:1mm7m51n]screencast

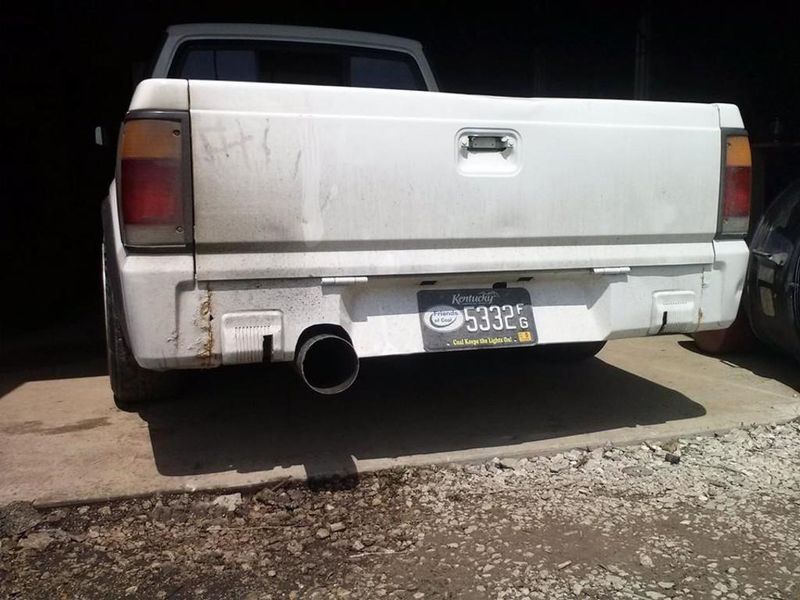

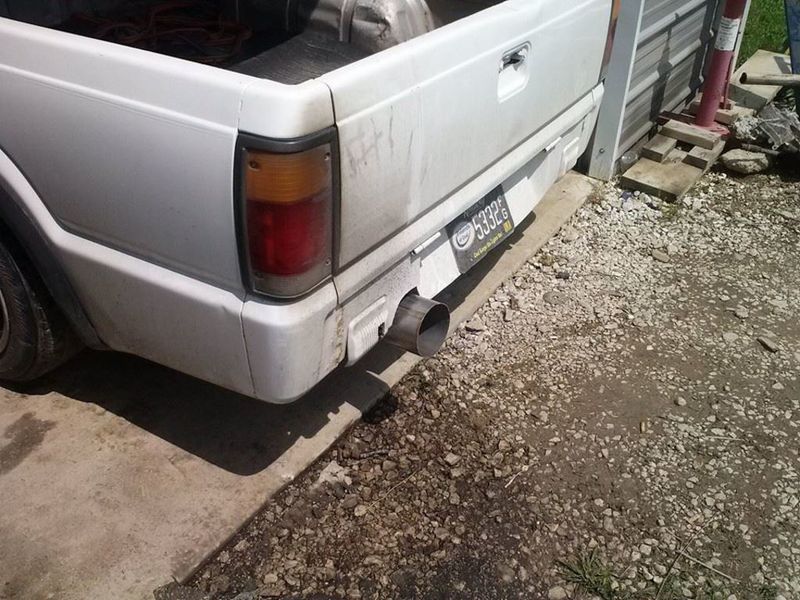

3" exhaust from down pipe into a flowmaster outlaw into a 5" exhaust tip
thread post photo

image hosting no register

thread post photo

image hosting site

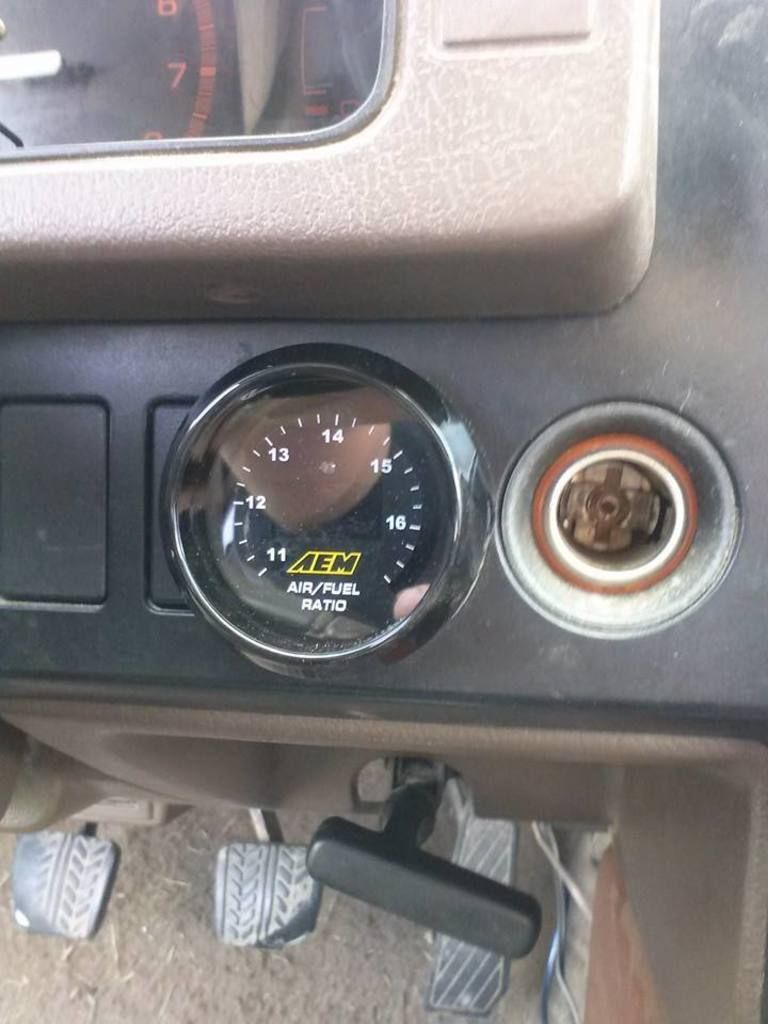

aem uego
thread post photo

free image host
low_life77   +1y
Looking good man! Damn 5'' exhaust from the muffler back that's crazy! What size is your Holset or rather what did it come off? Got any overall pics of the engine and turbo set up?
cory_watson   +1y
Thanks man, I'll get more pictures later this evening. It's a turbo from a 12 valve dodge Cummins.
