cory_watson   +1y
Holset hy 35 is the model number
cory_watson   +1y
thread post photo

img host
sincitylocal   +1y
That's a lot of turbo for your little tiny engine to spool up. Are you sure you aren't just adding weight to the engine?
cory_watson   +1y
I can boost 11psi under 5500 rpms no problem. the links that anguswilly posted of the 400hp car is running the same turbo pushing 25+psi
sincitylocal   +1y
I understand the engine might handle the boost. However, I question the engine's ability to provide enough exhaust to drive the turbo. The Cummins engine is nearly 3 times the displacement.
cory_watson   +1y
it seems fine, it starts to spool around 3300 rpms and has full boost by 4800 or so. alot of the dsm guys run them due to the high boost capability. i can tell that 11psi on the holset is a very big difference to 11psi on the ihi.
mjavy7   +1y
Looking good. I would also like to see pictures of how it sits in the engine bay.
anguswilly   +1y
That turbo is a little large, if you are not spooling below 3300 then you are losing out on a bit of the F2's power band.

However it is not too crazy if you add a cam to rev it higher you'll be good.

You also could gain some spool with a 3" DP - you can easily make the bend if you use short radius u-bend instead of trying to bed on a pipe bender.
cory_watson   +1y

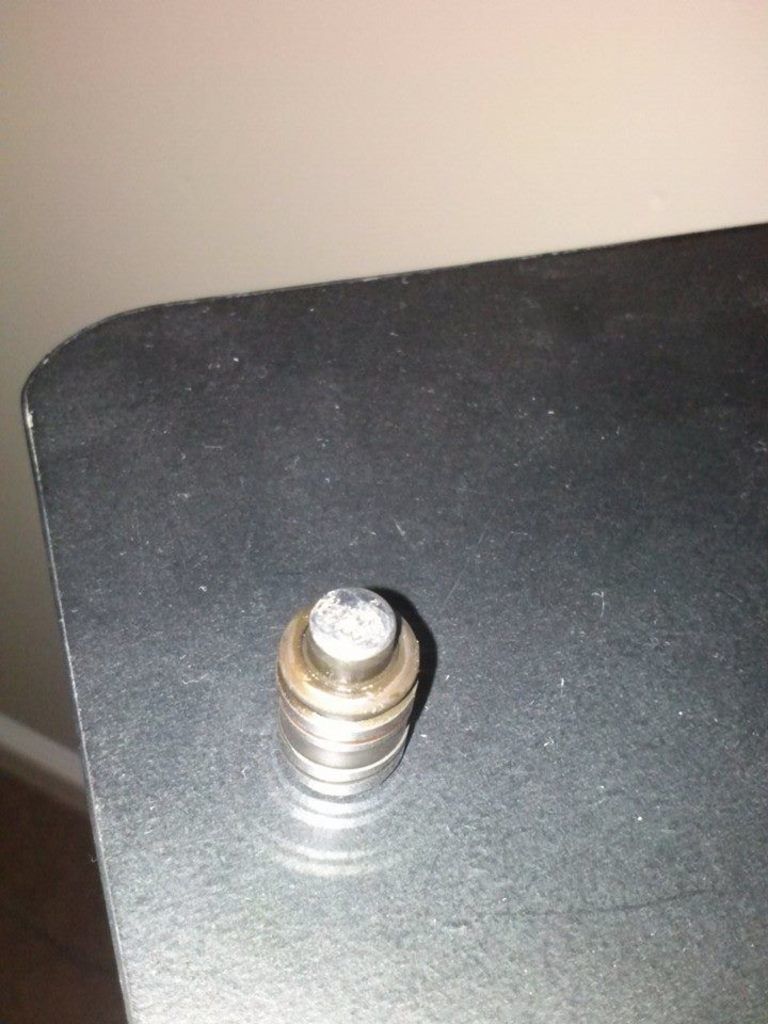

been having some lifter noise lately so I pulled the rocker assembly off to find #1 cylinder intake lifter to be completely collapsed with no resistance at all. and #4 cylinder exhaust lifter to be completely solid with no give and has some pretty bad wear on it.

thread post photo

free upload image

replaced the 2 lifters and now have a nice smooth and tick free engine.
cory_watson   +1y
I also added a 3/8" return line from my regulator back to the tank. I was having some fuel pressure creep at idle and this fixed the problem. I now have a steady 6psi at idle no problem. before the return it would jump between 5/9 psi at idle. it also helped my throttle response and I am now building boost at around 2700rpm. my guess is it was flooding the engine and took longer to burn the excess fuel out of the system.
