cory_watson   +1y
collecting parts to go efi, so far I have the harness, injectors, fuel rail, and lower manifold. I still need to make a upper manifold similar to jims junkyard efi system, a mass airflow meter, ecu, and throttle body.

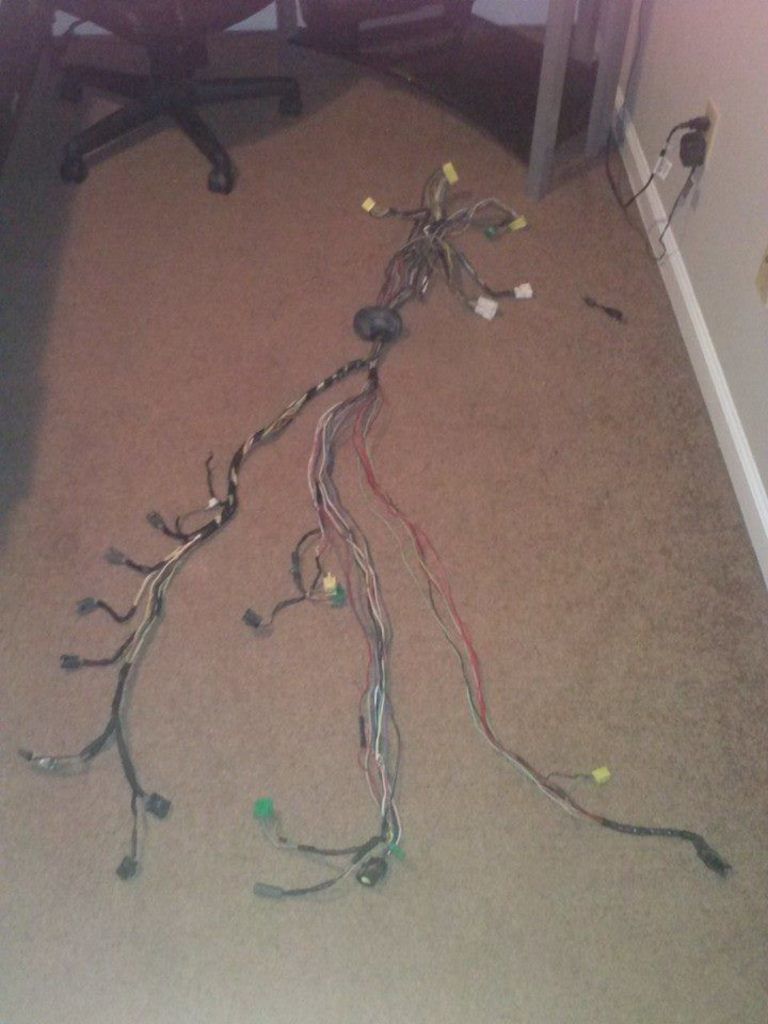

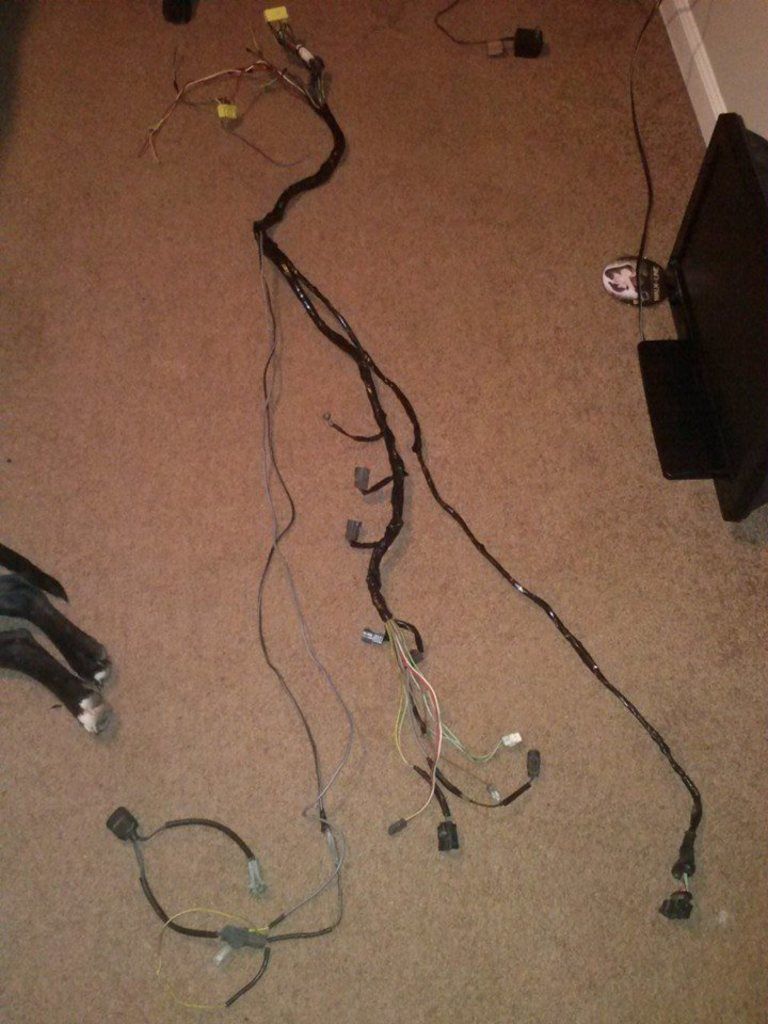

started sorting the harness out to thin it down.

thread post photo

upload image online
cory_watson   +1y

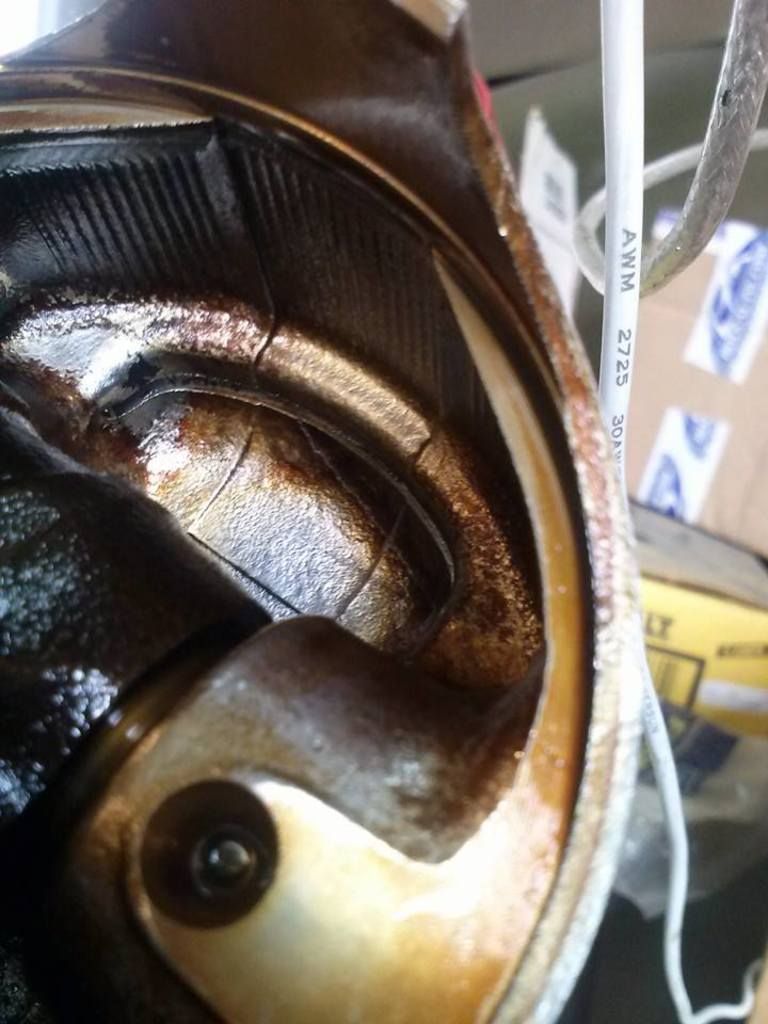

15psi without a sufficient amount of fuel will result in this

cracked #1 piston
thread post photo

upload image online
thread post photo

upload an image
thread post photo

[url=app.php:3ll51bqu" target="_blank" rel="nofollow">php:3ll51bqu" target="_blank" rel="nofollow">php:3ll51bqu" target="_blank" rel="nofollow">php:3ll51bqu]windows 7 screen shot

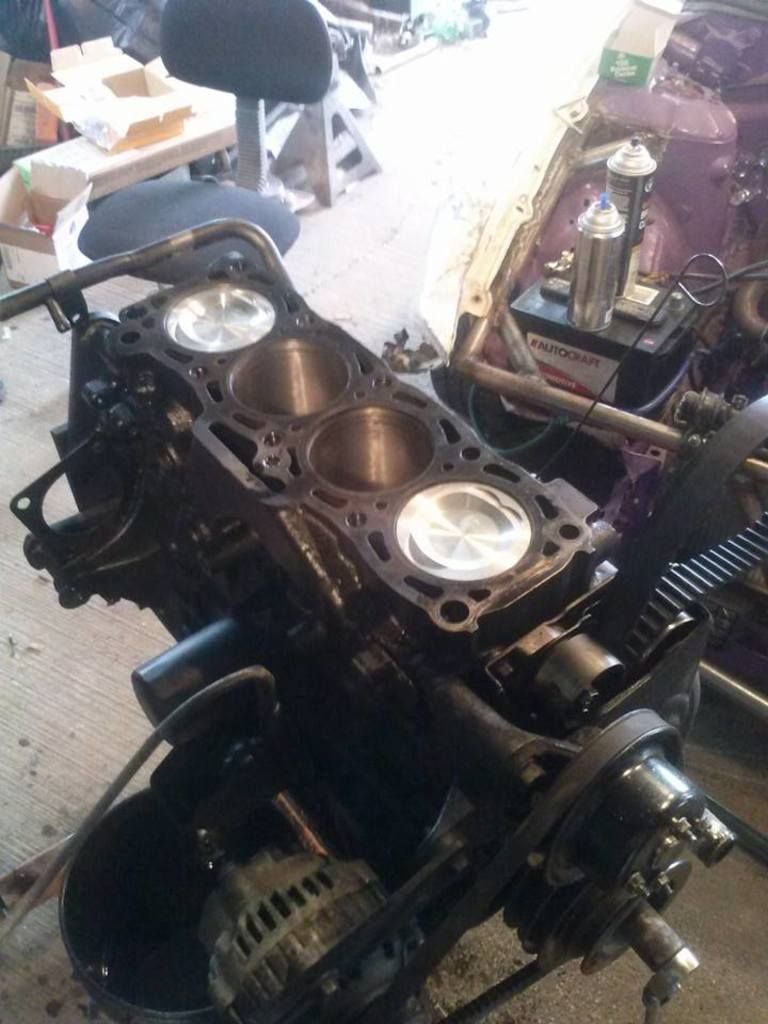

short block reassembled with npr pistons and rings
thread post photo

[url=app.php:3ll51bqu" target="_blank" rel="nofollow">php:3ll51bqu" target="_blank" rel="nofollow">php:3ll51bqu" target="_blank" rel="nofollow">php:3ll51bqu]screen shots

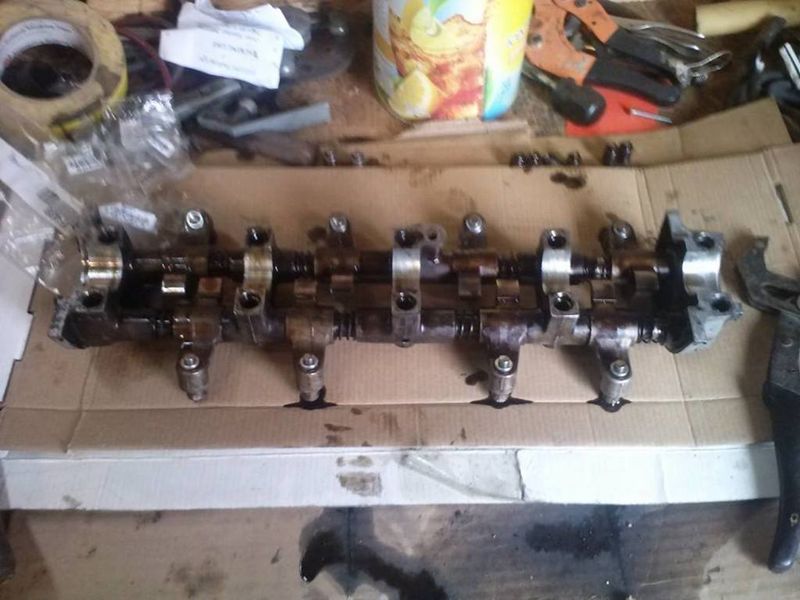

new lifters
thread post photo

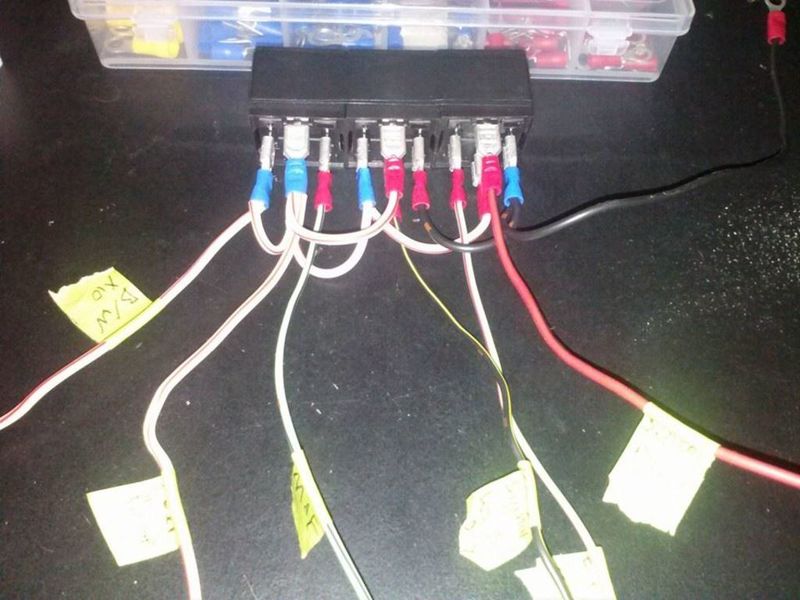

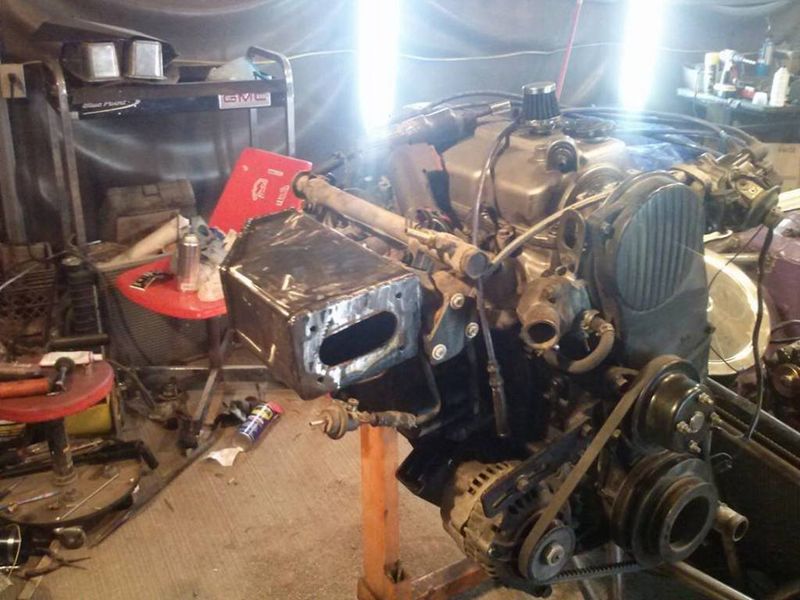

efi system
thread post photo

image hosting free

thread post photo

gif image hosting
thread post photo

images upload

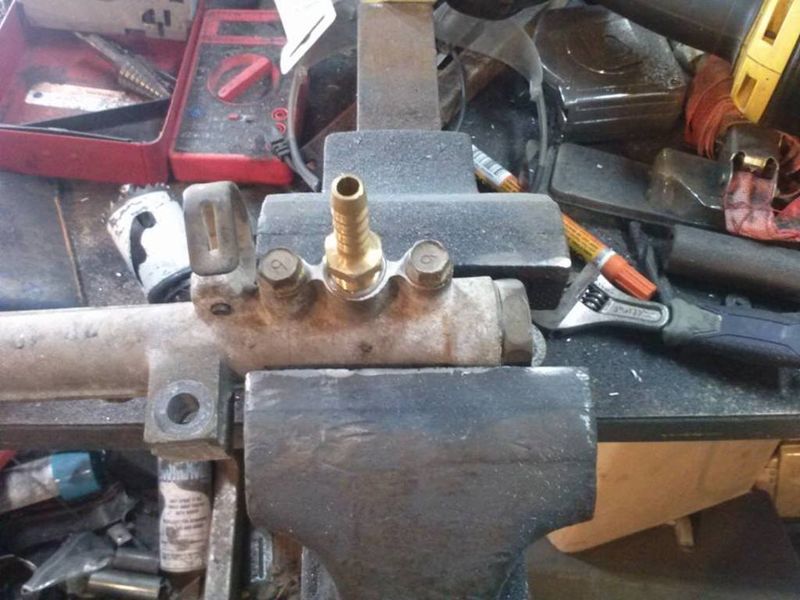

fuel rail tapped for 1/4" npt
thread post photo

imagehosting

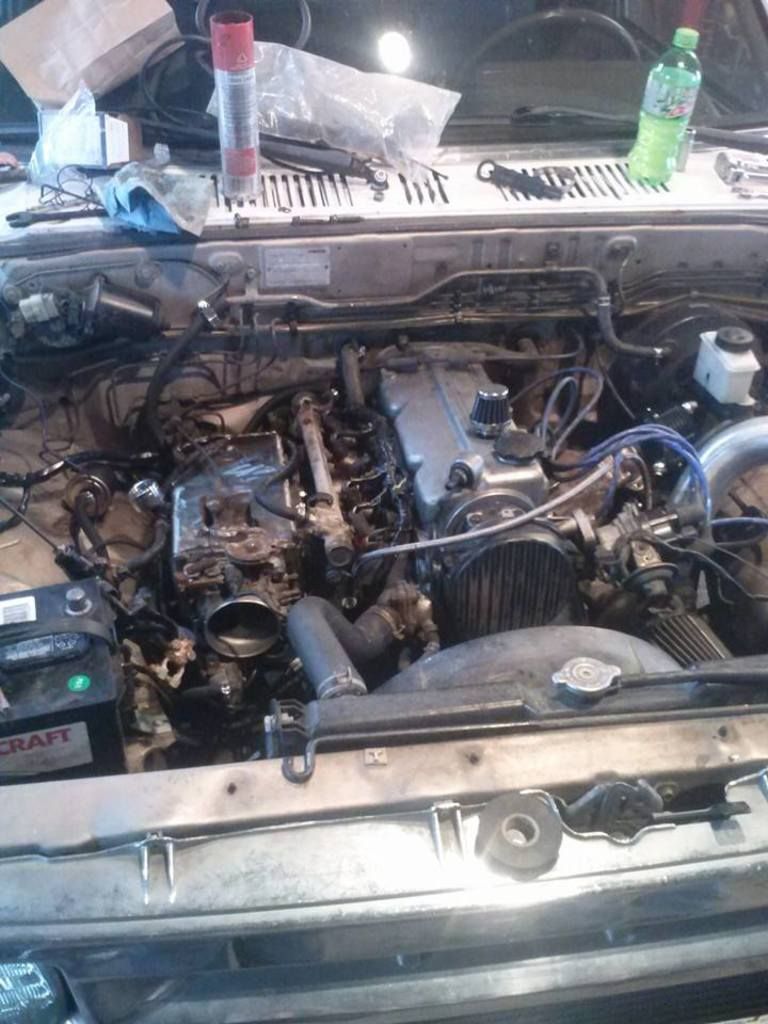

everything reassembled
thread post photo

[url=app.php:3ll51bqu" target="_blank" rel="nofollow">php:3ll51bqu" target="_blank" rel="nofollow">php:3ll51bqu" target="_blank" rel="nofollow">php:3ll51bqu]screen shot

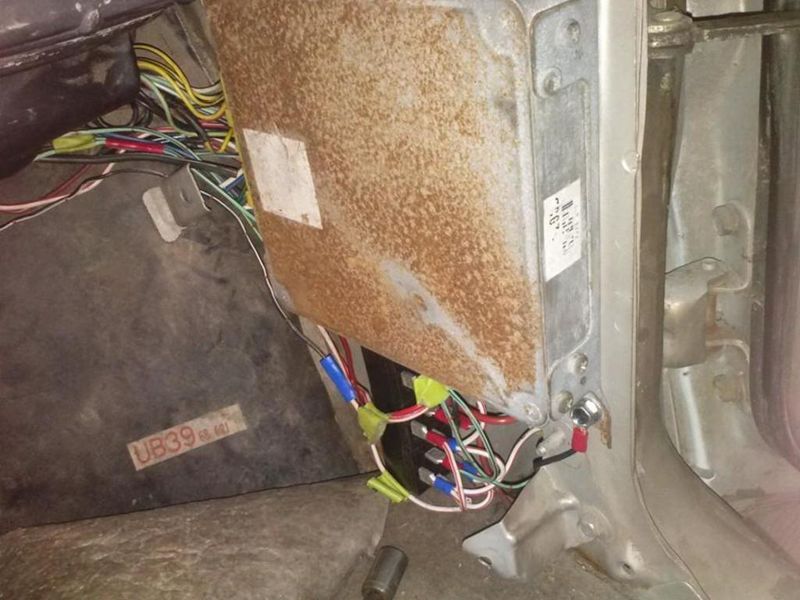

back in the truck and everything wired up still need to redo my intercooler piping
thread post photo

temporary image hosting



while it was out I also installed a exedy hd clutch kit, walbo 255 intank pump, and all new fuel injection rubber hoses. I will get a video of everything running in a few days.
low_life77   +1y
Glad to see you decided to go EFI man. Looking good I can't wait to see this thing running! I have been tossing the idea of rebuilding my 2.2 and converting to EFI to run boost as well, but am uncertain if the overall outcome will be worth the time and money spent.
cory_watson   +1y
ill let you know what I think about it in the next few days, I really hope it was worth the conversion.
low_life77   +1y

Awesome thanks man! I'm sure will notice quite the difference in an FI turbo set up verses the blow through set up. Way more efficient and a lot more tuning capabilities.
cory_watson   +1y
im still researching on tuning the n/a ecu, almost all the info is for the turbo ecu. im going to do a VAF hack to tune the a/f mixture but from what ive read it will only go so far. im using b2600 326cc injectors but I would eventually like to go bigger probably to rx7 440cc's.
cory_watson   +1y
finally got to drive it today. so far im very pleased with the EFI swap it seems to have so much better throttle response and even more useable power. im still tuning the MAF and fuel pressure to get it just right. here is where I left off for today. should have videos in a few days

thread post photo

image upload
cory_watson   +1y
I cant figure out how to embed the video, but here is a link to the truck running. I will get some better ones soon.

" target="_blank
low_life77   +1y
Looks great bro and sounds healthy! It looks like it it belongs there. Get that thing broken in, change that oil, then see what it can really do....after you get it tuned of course
cory_watson   +1y
it is so quite now with the new lifters and the loud ass carb gone. I almost thought something was wrong it was so quite and smooth
