Mazda Engine General \  So I just got this truck a few days ago.

So I just got this truck a few days ago.

Mazda Engine General Mazda Engine Mazda Tech
views 4111
replies 48
following 16

mazdawg(mikey)   +1y
You just run one vacuum hose from the distributor to the carb. The 32/36 carb is the best choice. I've got a 34 and I had to use a yota throttle cable.
xjoewhitex   +1y
Just to confirm, id hate to buy the wrong part because im broke as it is. But this right here will work without problems, just plug and play.

suicide   +1y
yes thats the kit you want
xjoewhitex   +1y

Any idea how the electric choke works? Or would I have to set it up differently since I have a manual truck.
immortal1 (linn)   +1y
The electric choke on the Weber has a terminal on it that basically connects to a terminal on the back of the alternator. Your stock carb should have an electric choke already so you just re-use that wire. The directions with the Weber will tell you how to adjust things.
xjoewhitex   +1y
I didn't realize that my truck already had an electric choke? I know I have to pull the knob inside the cab when starting the truck at times.. So I figured thats all I had . Thats why I wasnt sure how the electric would hook up.

(sorry for being noob)
immortal1 (linn)   +1y
Wow, guess your truck has a few more issues than I originally thought - sorry. To the best of my knowledge all B2200 trucks like yours came with an electric choke. It sounds like someone has converted your carb to a manual choke. If you get a Weber no worries, get one with an electric choke and we will show you how to wire it up.
immortal1 (linn)   +1y
For what it's worth the following may help...
xjoewhitex   +1y
Wow really? Yea I will take a picture tomorrow to show you my choke.. Actually looked kinda stock to me, but I didn't understand why a 93 wouldn't have a electric. But that would be awesome, thanks for the advice and I will get this weber ordered and get the rest of it figured out. Thanks a ton.

\m/
xjoewhitex   +1y

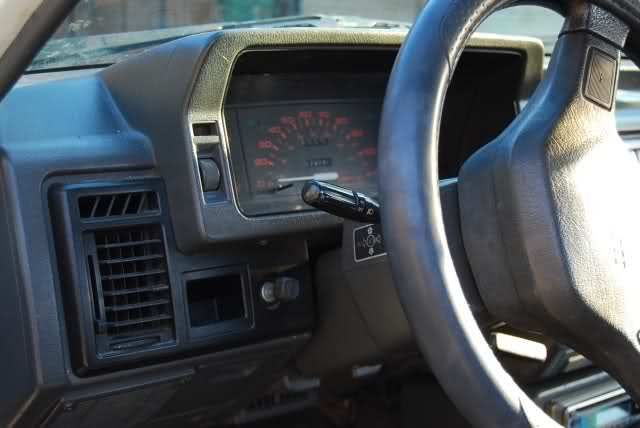

So heres my choke, I didnt even know what it was when I bought the truck and just randomly pulled it one day and it stalled the truck out lol.

thread post photo
