B2000 drift truck build

Ya the s13 i got the motor from, its driveshaft would be a huge hassle to adapt.

I want to run a solid shaft. Hopefully just the front ujoint from a s14 or truck and the rest would be stock mazda.

what exactly do these do...? can you explain a little more into this...?

That piece eliminates the rear shackles for the leaf springs. Its welded to the frame where the shackle pivot normally is. In a stock car there would most likely be no advantage. But in mine when im sliding sideways it will help the rear axle travel up and down adequately and locate the axle laterally much better than shackles. Oh ya and it will give the rear of the truck 2" of drop.

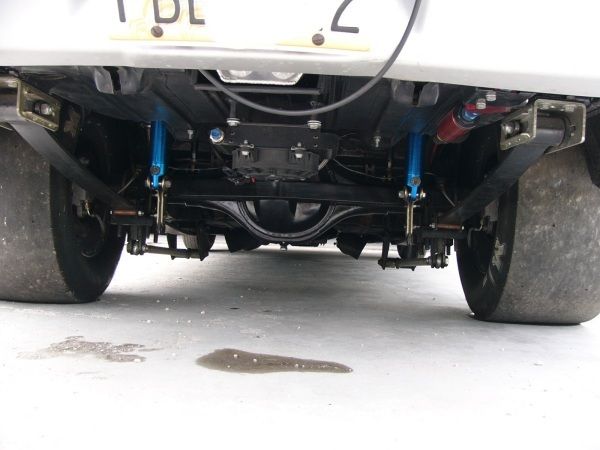

A pic is worth a thousand words.

i'm in love... that picture helps out a lot... and yeah... my truck isnt stock... and the lower you can go the better... i would think having those installed and putting my rear 2 pulled leafs from each side back in and i could still sit where i am now but have good ridin suspension back...

Yep. Mine will be recessed into the frame heavily. since im also modifying the front spring mount I should get 3" of drop out of this.

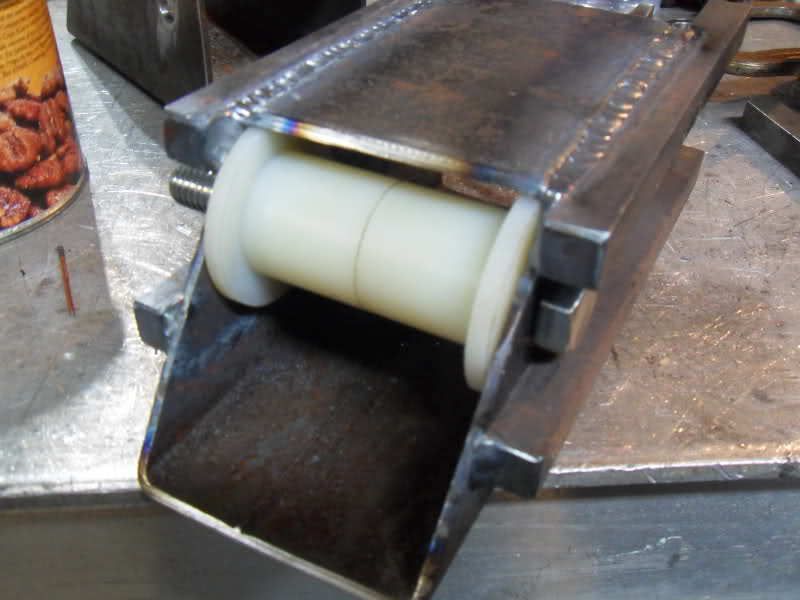

started on my slider setup today. Cant finish them untill I get my bearings.

Thank you for explaining that, this is turning into one of my favorite builds. I've always wanted to know more about drifting.

Well this build is extremely mild for a drift truck, but it should do pretty well.

burn Mazda burn

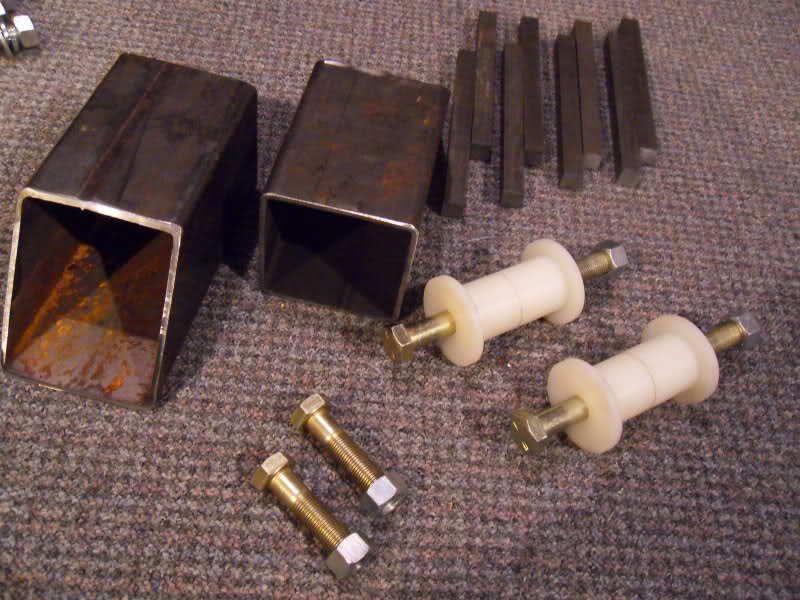

Bushings

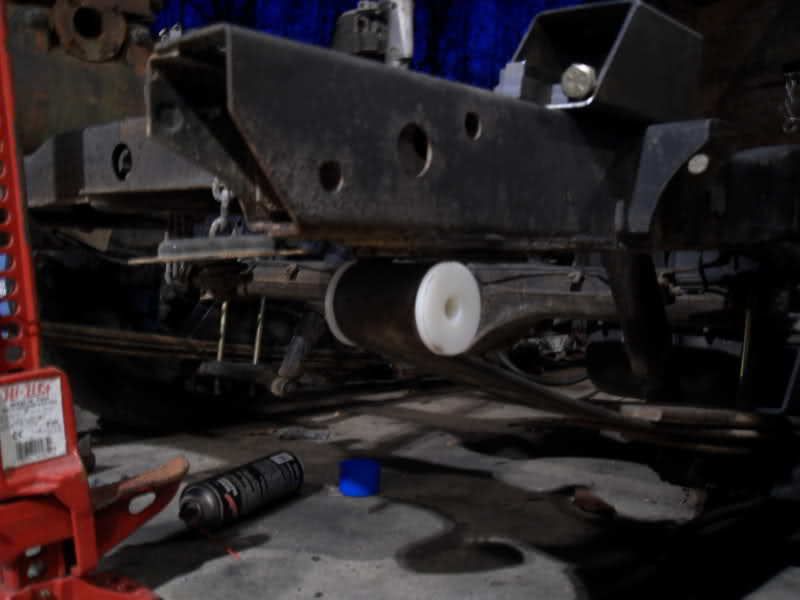

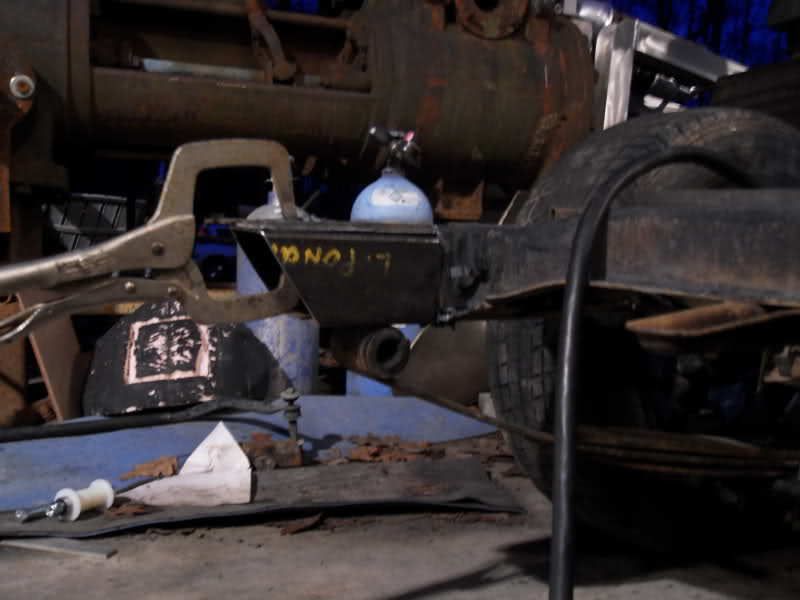

new piece rough placement

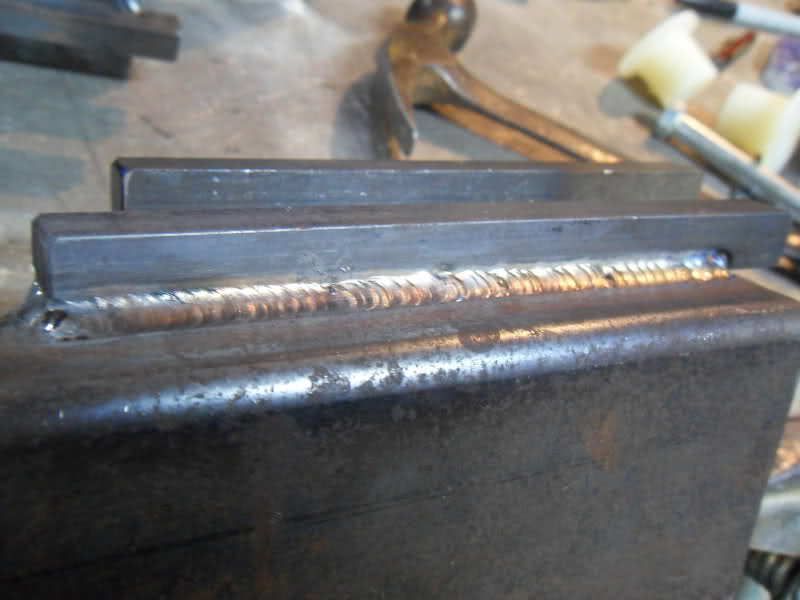

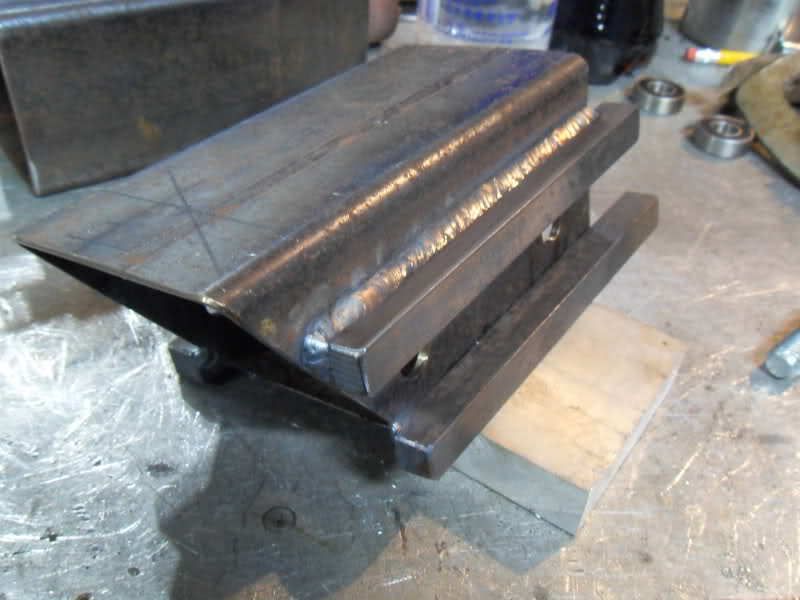

slider start

How much you charge me for a set?
