B2000 drift truck build

How did you get the extra steering lock? I am building a lil drift b2000 too mines a pre 85 thow. What else you got planned for the rear end? panhard bar?

At stock height the tre will hit the upper control arm. If the front end is lowered quite a bit, like mine, thats not a problem. There are adjustable stops in the knuckles that get taken out first. then the knuckle will contact the edge of the lower control arm on the back side. Tiny bit of grinding and you have lots more lock. At that point the stock steering box gets maxxed out.

I dont think ill need a panhard bar because of my shackeless slider setup. The leaves are located laterally in the front and rear so a panhard bar would be useless. Theoretically there could be a little bit of movement in the blocks but Ill be shortening them up.

i really like this build. its ery intersting and i find myself checkin it for updates a lot lol

Thanks hunter. Picking up some tubing for my c notches and other random stuff today. I went yesterday but the power was out after some tornados and they couldnt cut it. I can only hold 8 ft sections in my suzuki samurai.

very nice man looks great

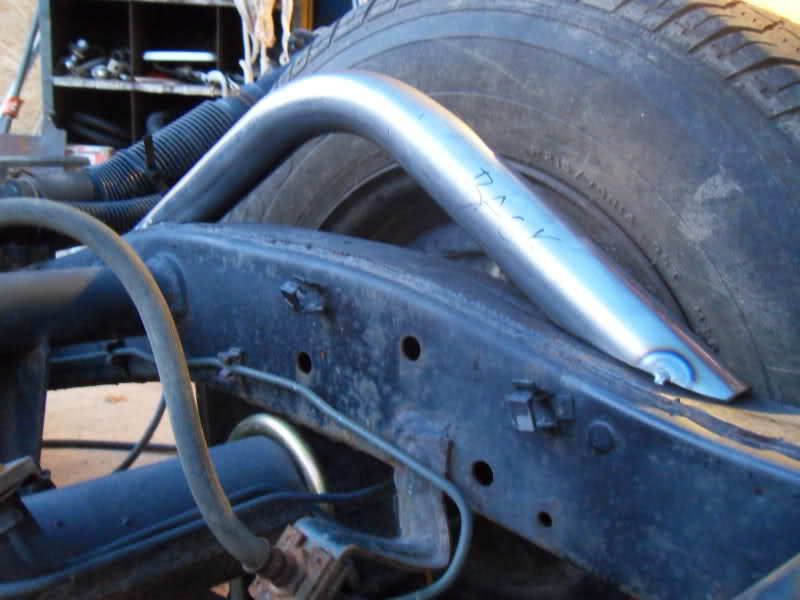

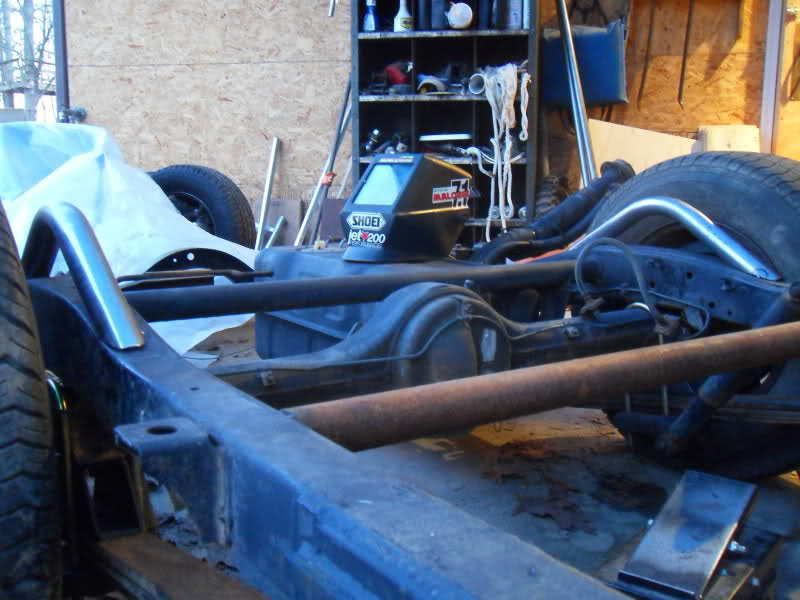

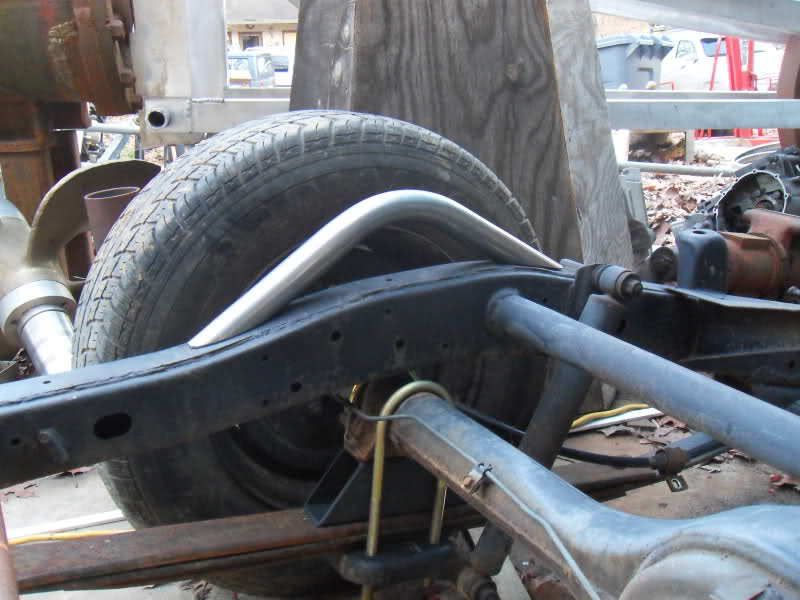

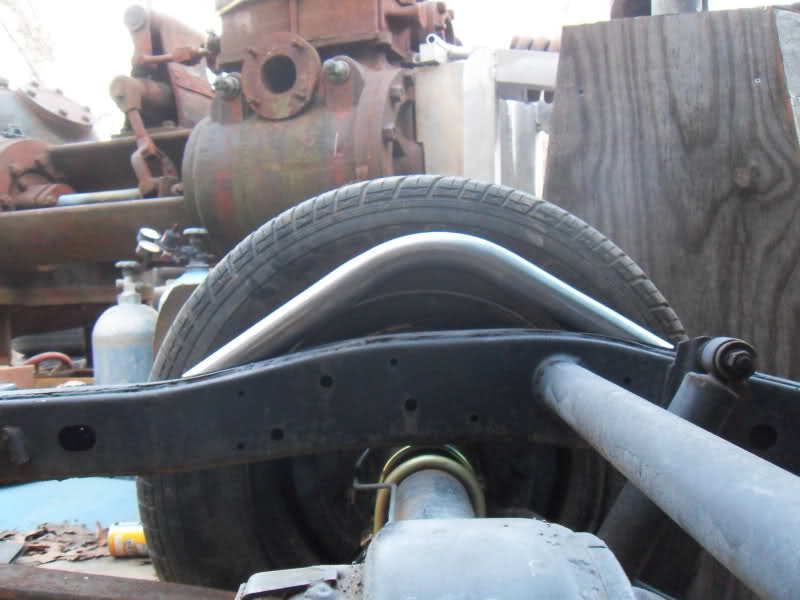

bent some tube up for the start of my C notches.

OOps

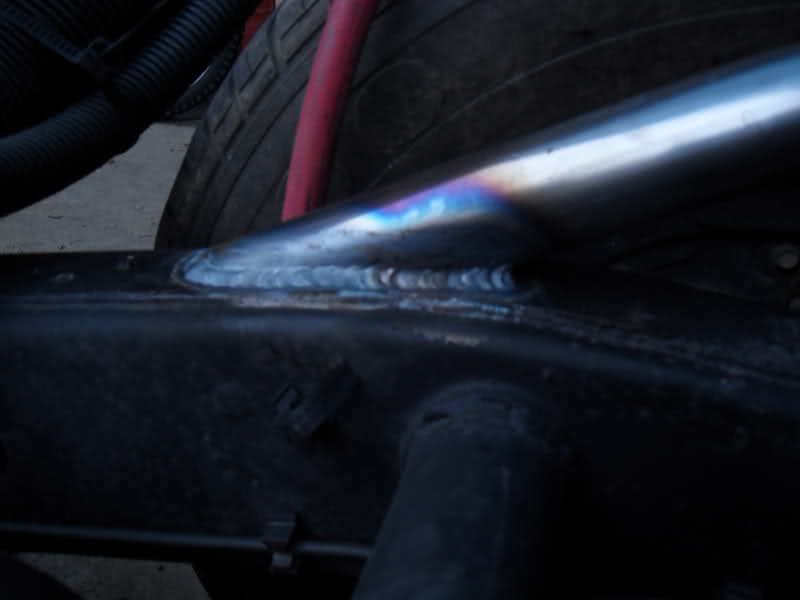

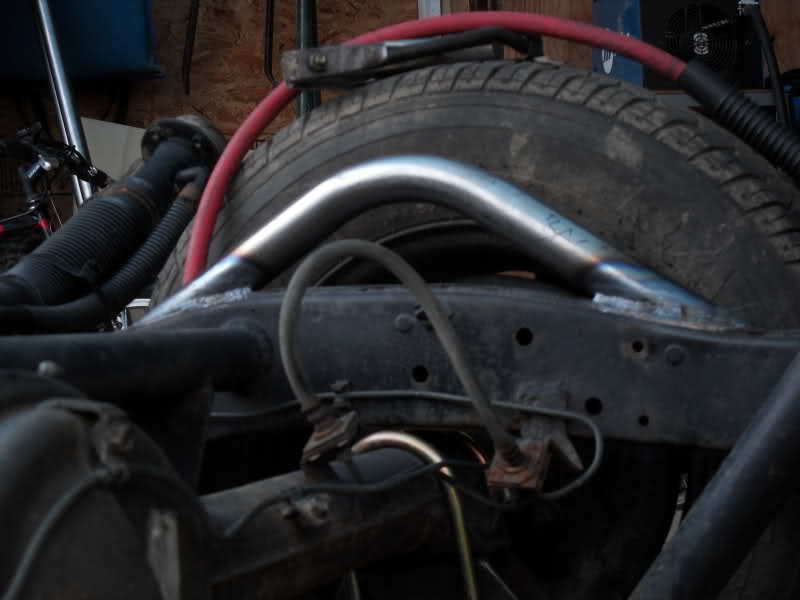

welded in

haha I love the ooops picture. Looking great man you are making good progress! Nice welds too. How do you plan to do the Cnotch?

more pics! do work. love this build

agreed this project is comin along great. i just got caught back up and its turnin out awesome mate. keep up the great work. and really nice beads there.
