Hooptastic new Frame pics page 5

Can ya post pics of the brackets, core support mount holes, etc? I was the the JY tpday & all the yotas there I saw all mounted the same way it looked like to me. There were a couple with the 3 piece & the 1 piece bumpers there, so...

they mount the same way on the core support but they are in different spots I will post some pics of my brackets tomorrow

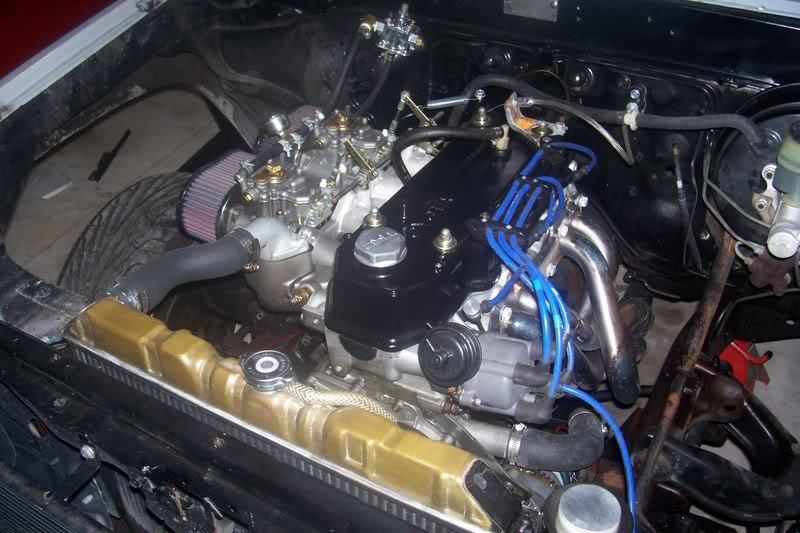

Here is a current pic of the motor with the header on and the throttle cable done

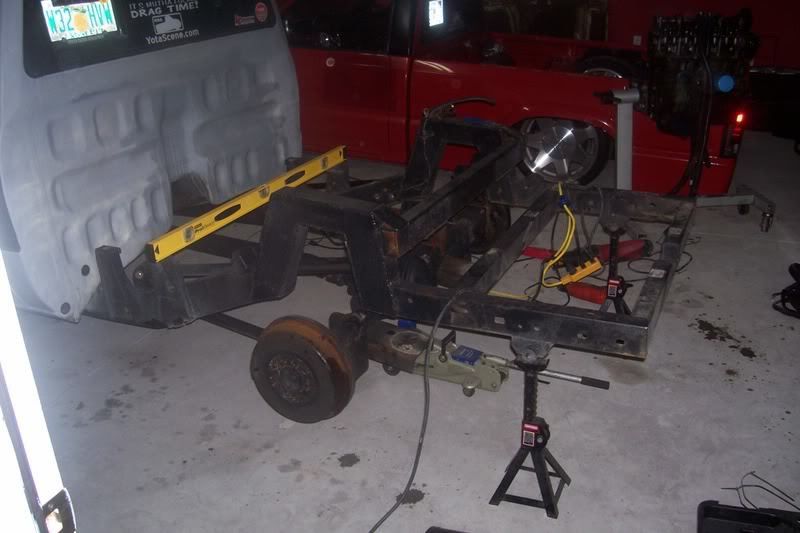

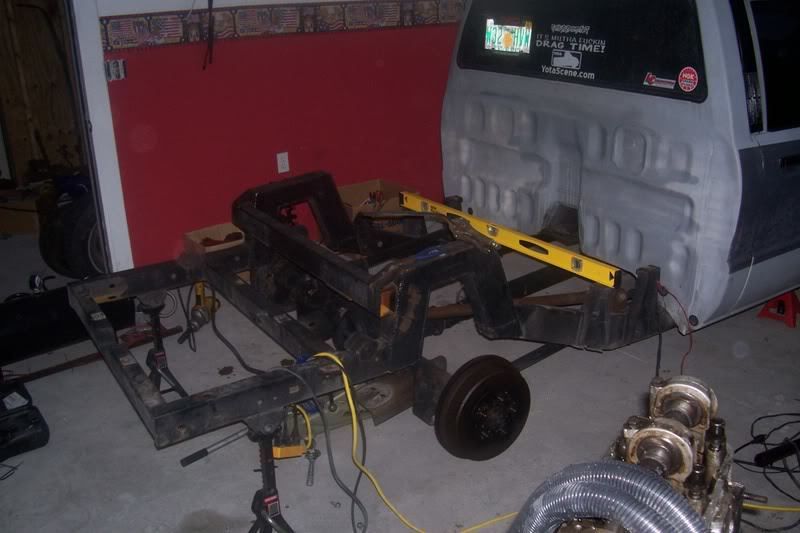

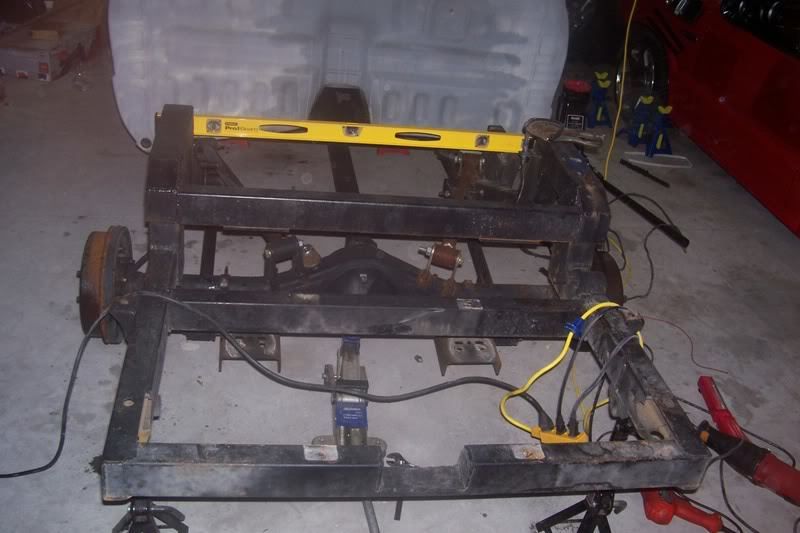

And here it is ready to be hacked again am doing a new back half out of 2x3 bag on bar dont know which way I'm going to be running the bars yet been thinking wishbone for the upper and RE7s on the lowers....
It is getting a new fuel cell new rear rims 18x8 1/2's hopefully got a 89 4x4 bumper and valance from a guy in the club for 30 so my bumper will be going up for sale and I'm going to be selling my rad cause I want a all alum rad, This will all be done for Unite

Also going to get a new rear end to save labor on cleaning mine up and am doing the rear disc conversion

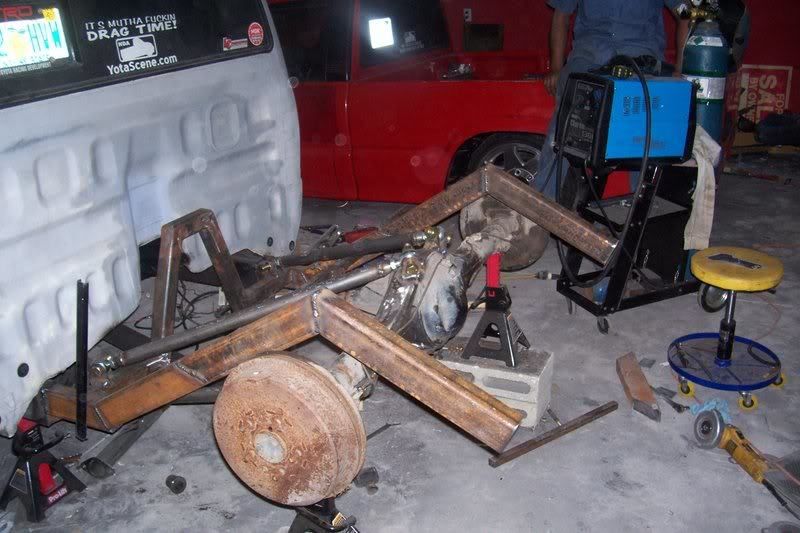

Some Progress pics

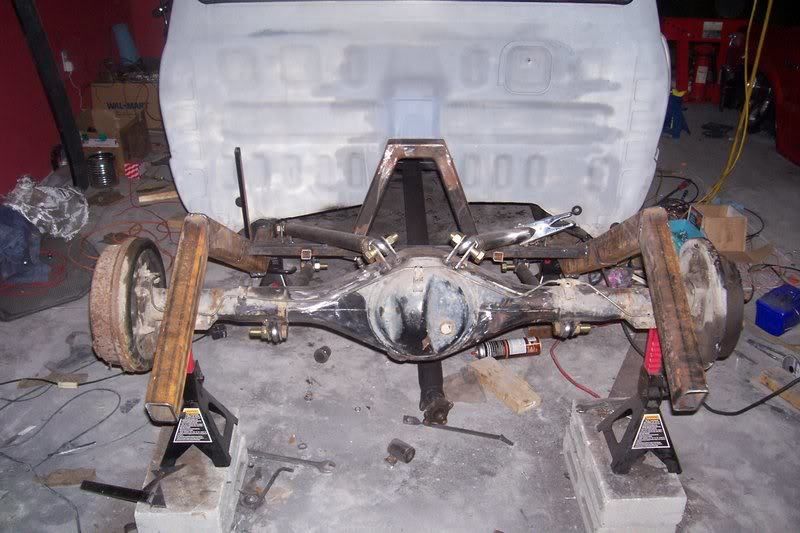

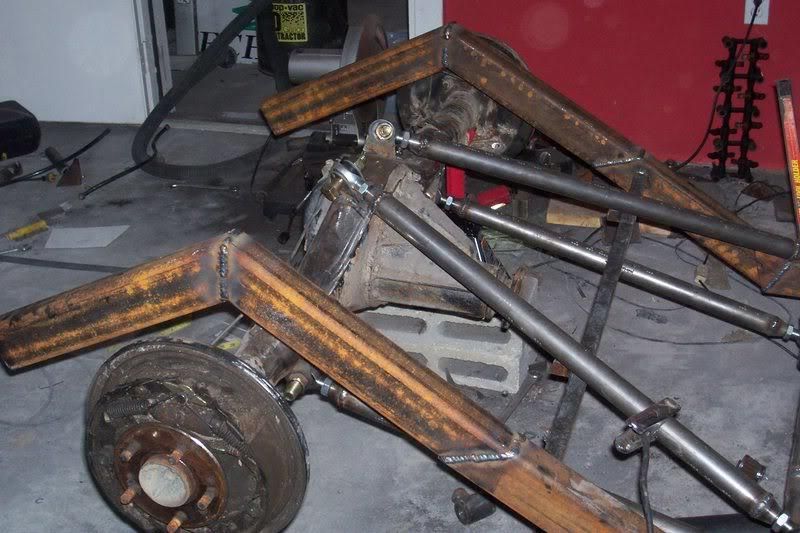

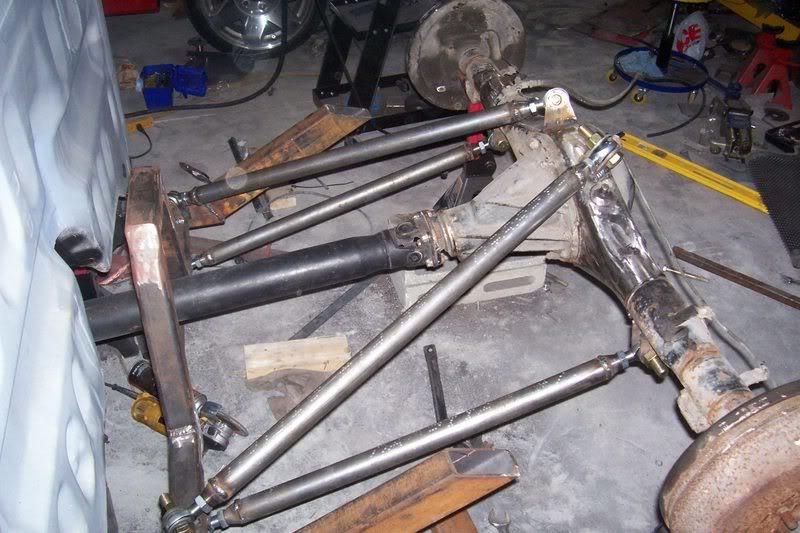

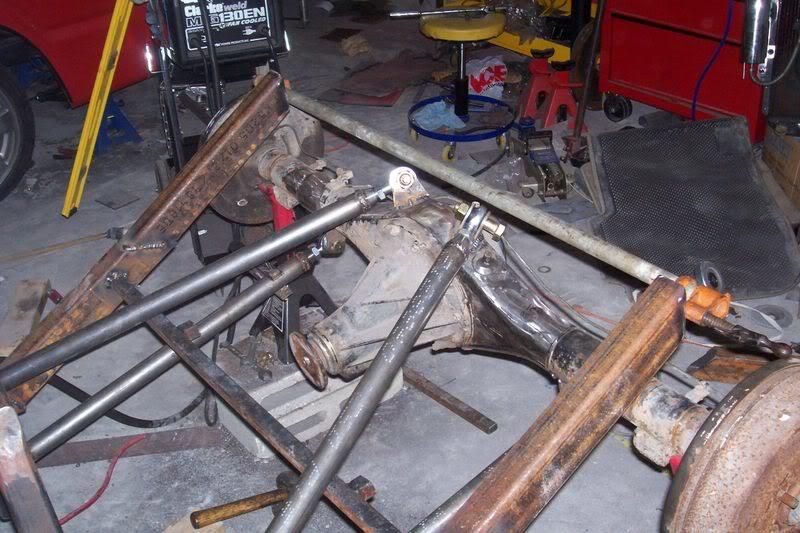

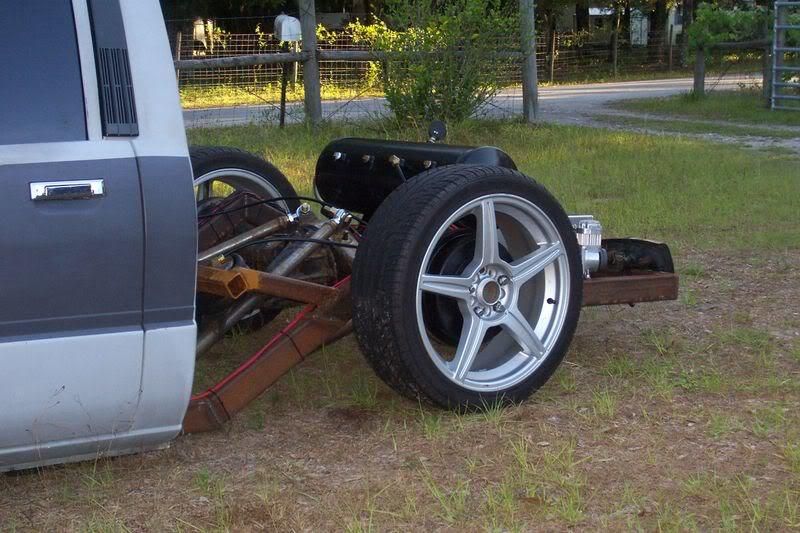

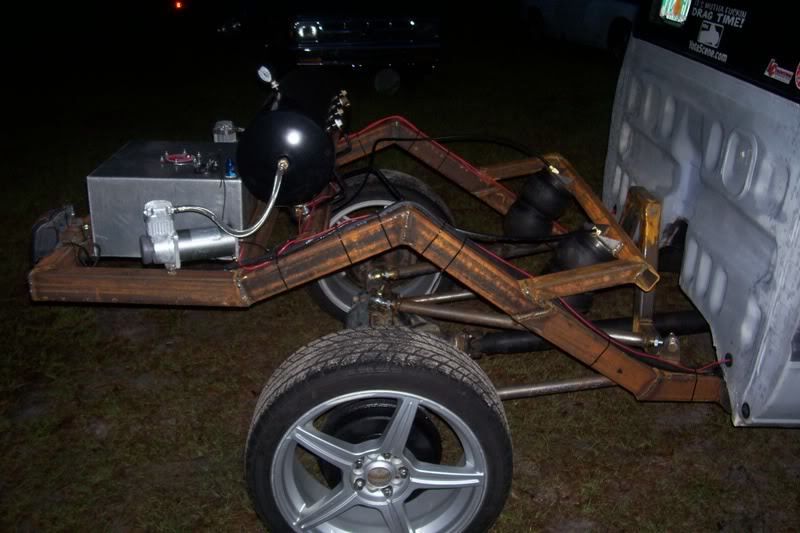

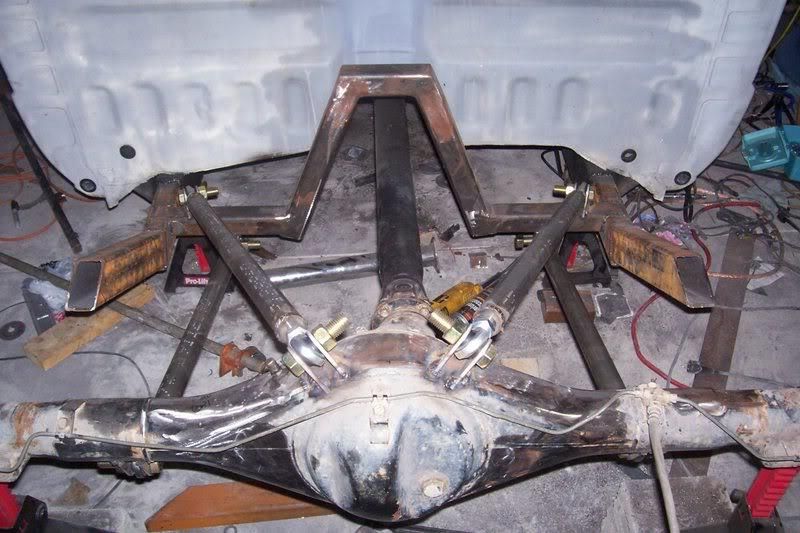

Here are some pics of a Almost finished frame, It hasn't been gusseted yet and it needs to be cleaned up and painted but it gets retarded lift with where the bags are Everythi hawire wise and it is wire tucked like a mug you cant see any wires except the dist wire and am going to get a DUI Dist from LC

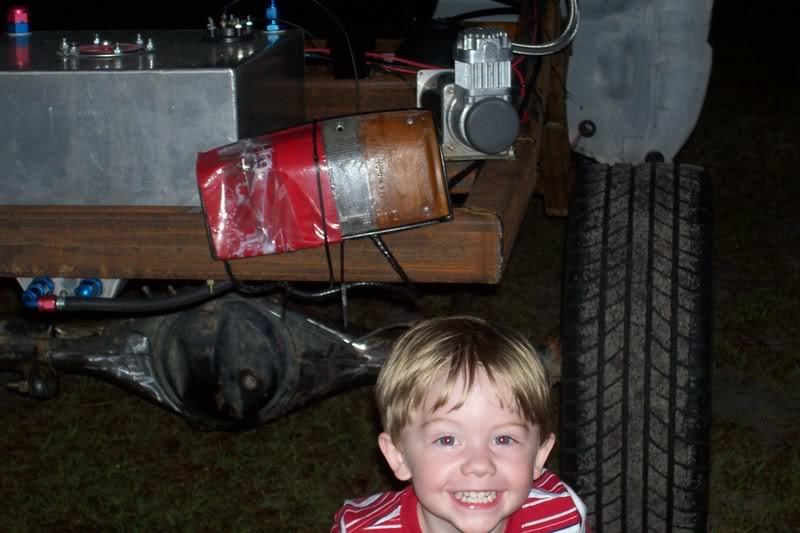

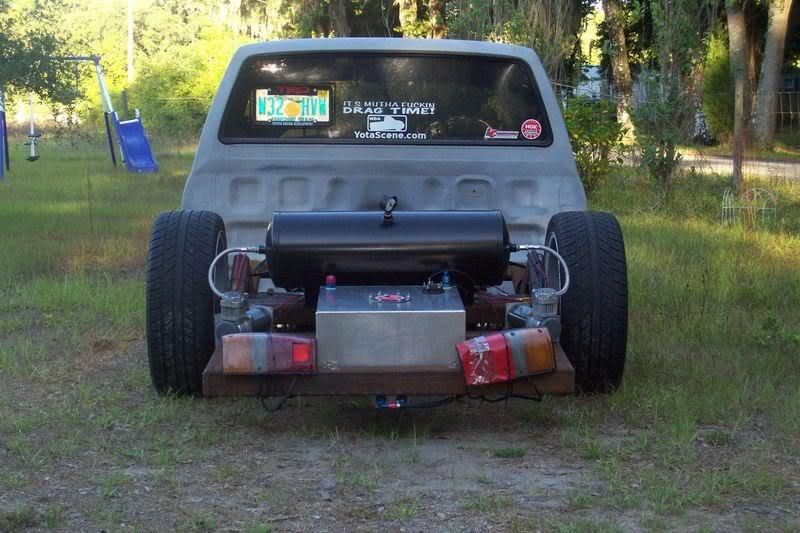

The rear of the frame over my 2yrs old son

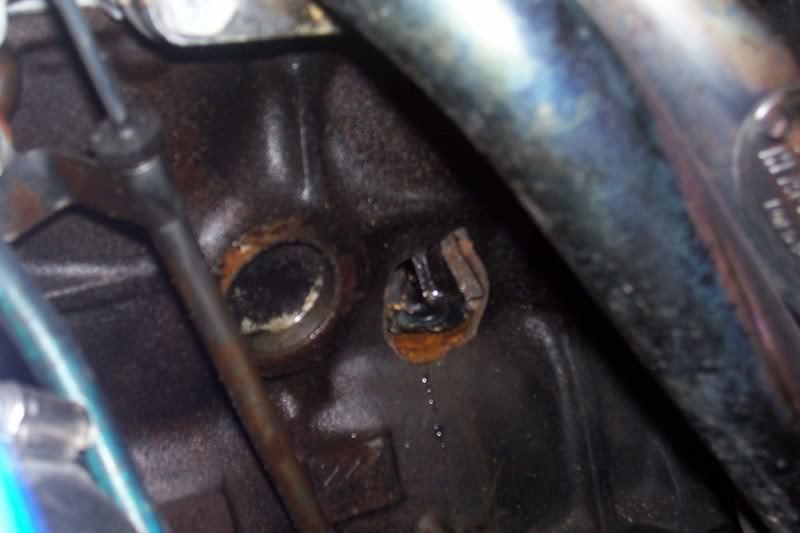

Here is a pic of the hole in my block on the way to Unite

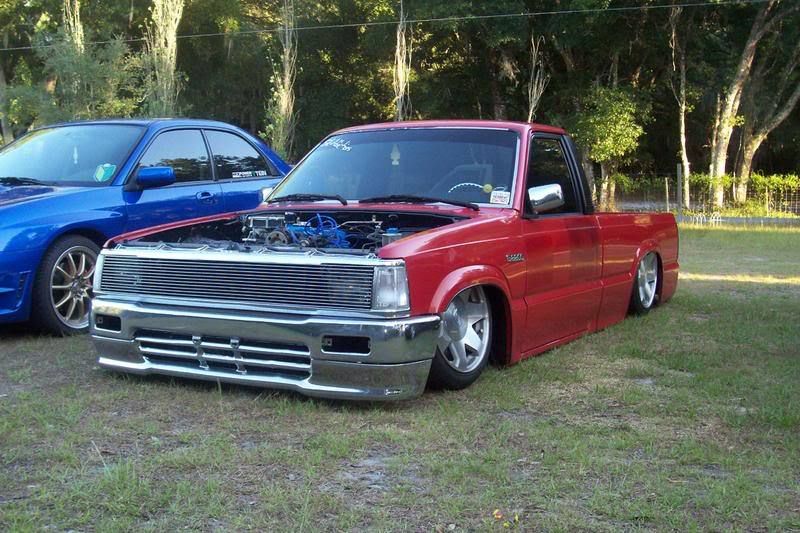

And a pic of my little bros BD Mazda

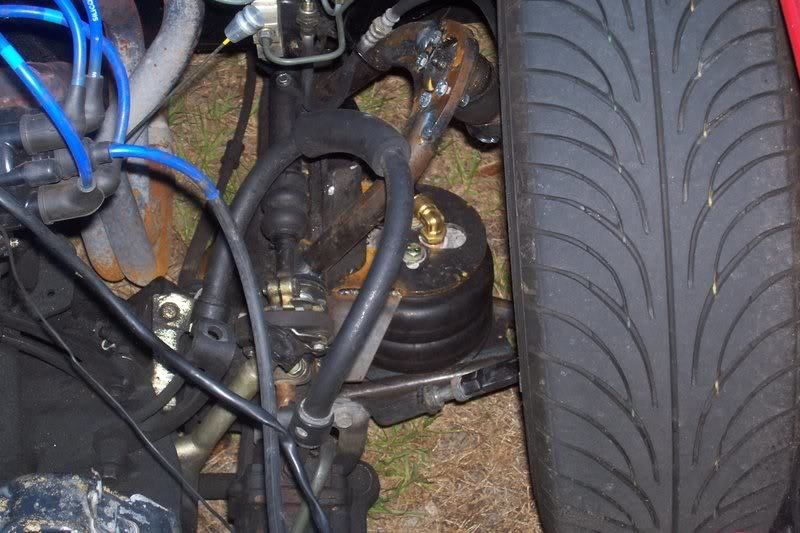

The front of the Mazda on CanDo arms it is on 17 right now and set up for 18's

I'm still up in the air about BD my truck But while the motor is getting re done I'm taking the cab off and Zing the front and bagging on Can Do arms Shaving the fire wall,I have to make a whole new harness as There is no reminates of any Toyota harness left When I built the back half I put in a CanDo cross member
The only reason I may not BD it is cause of my exhaust Issues I have to run 3in pipe for the turbo for flow and for my AF ratio's

looking at the pic of the frame... at the two pieces that look buttwelded in front of the rear wheel... did you slide anything inside those two pieces to strengthen that? or is it just the two welded end to end cause as soon as i saw that i already didnt trust it. not trying to bust your bubble but if you go as far to build a subframe do it right... another thing the bag mount.. is there any supports going towards the front of the truck or just those two that are angled towards the rear?

No there is nothing inside the joining peices have sight angles in them so you are welding in a V inside o 2 pieces butted to gether like I said none of the joints have been gusseted yet a couple eut am going to get some more from Kyle, I am also going to get in contact with him about the bag mounts and have one cut to fill that gap Plus anything from the crossmember back dosent really bear any weight or torque from the truck I could have stopped at the front crossmeber and drove the truck the rest of the frame only need to support it's own weight and the bed

lookin good man, both trucks. dont really like that window in your block though.... that musta sucked.

sucks about blowing your block...truck looks good though
