Sparky (Warning, not Toyota)

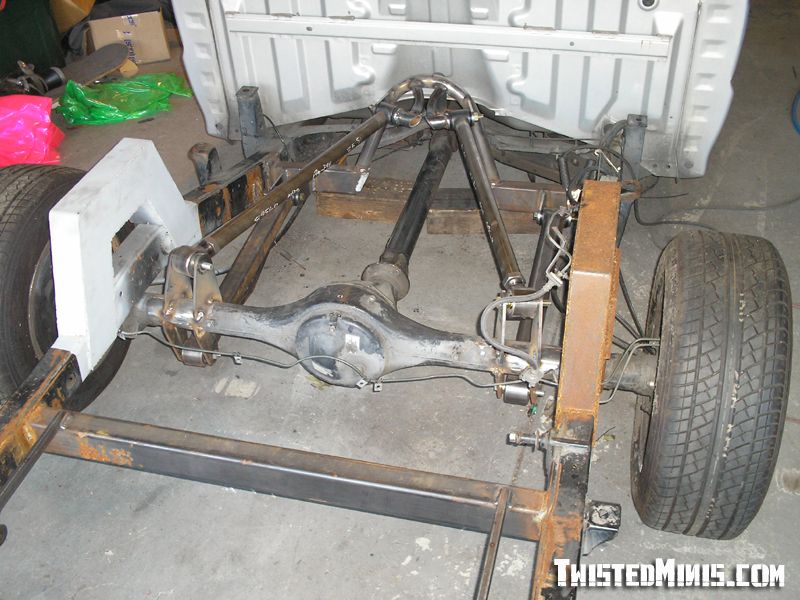

Yeah all 4 mounting points on the axle are super pivots.

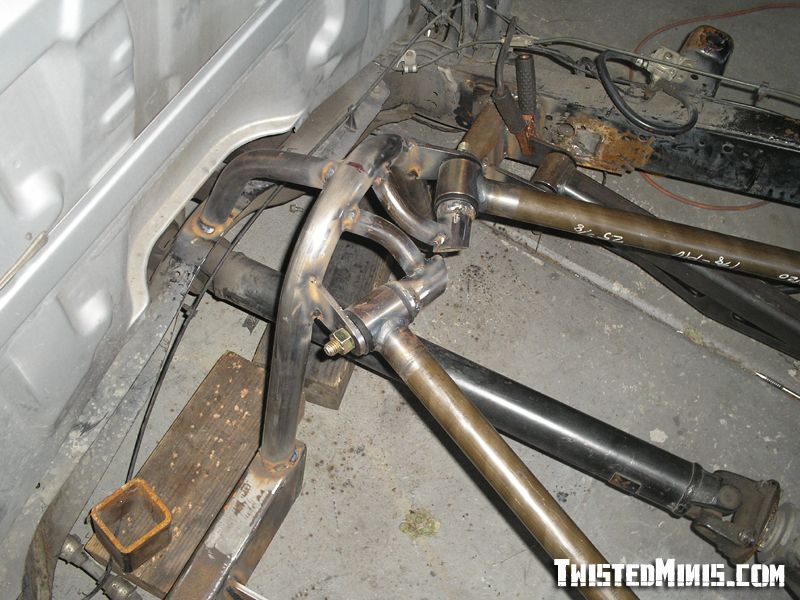

Got the 4-link mounts buttoned up. I'm really happy with the way they turned out.

looking good man.

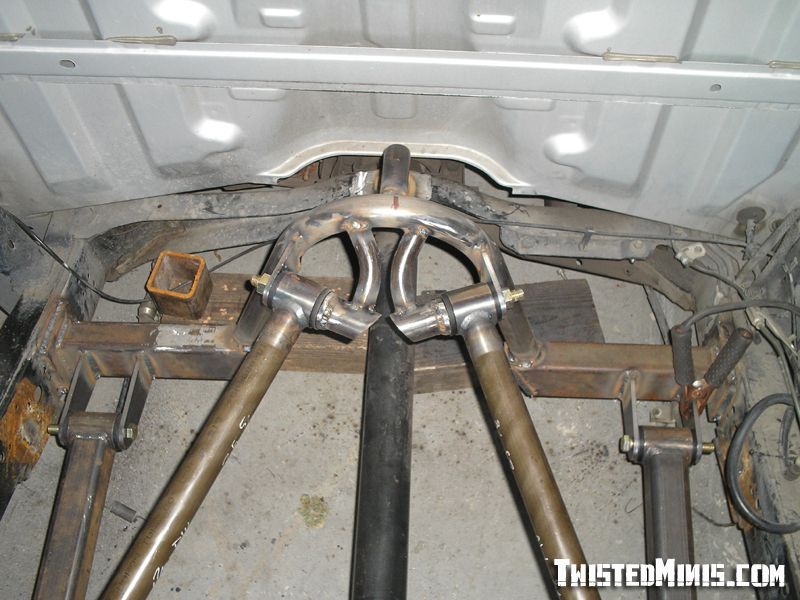

hey seth how does that way to mount the uppers to the crossmember work and how to make i see these on a lot of trucks and want to know how to make these mounts

Its basically a piece of tube cut at an angle. Then you weld a plate on the straight side with a hole in the center. I usually use a holesaw to cut the plate to ensure the hole is centered. Just use the next size up holesaw and it fits pretty well.

what size plate u use for the flat side....also what bender u use

I used 1/4" on those. I cut it out on the drill press with a 2" holesaw. On lighter duty stuff I use 1/8" plate, like shock mounts and stuff.

Right now I'm using a pipe bender to do small bends (up to 35 degrees) on heavy wall tubing. But its very limited. Ther larger radius bend I had done at an exhast shop.

I'm in the middle of building a full hydraulic bender in my machine shop right now.

Damn I'm typing like a drunk tonight.

im hungover from last nite..

are these good benders
