I have been working full speed on the wiring. Jeremy had the accuair fully functioning and wired up nicely but I wanted to hide it all.

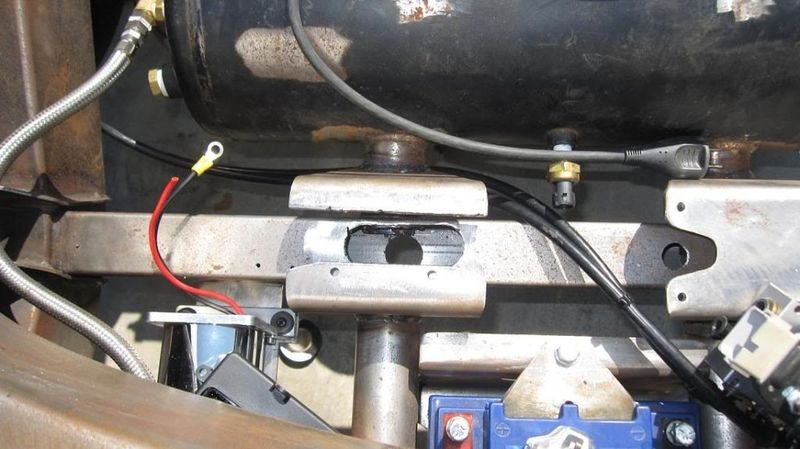

I cut out the Accuair brain mount and cut an opening below it for the wires to come through.

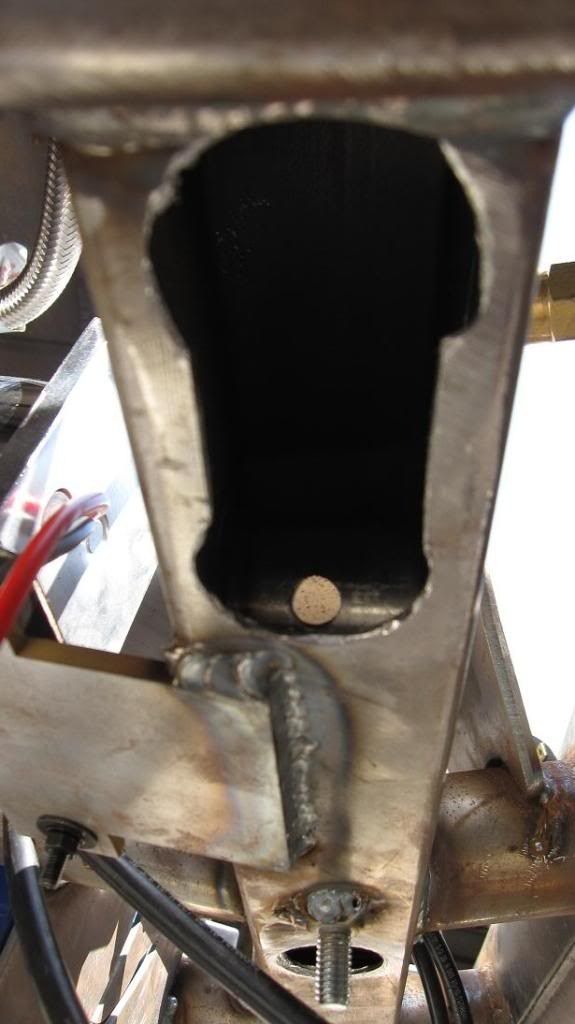

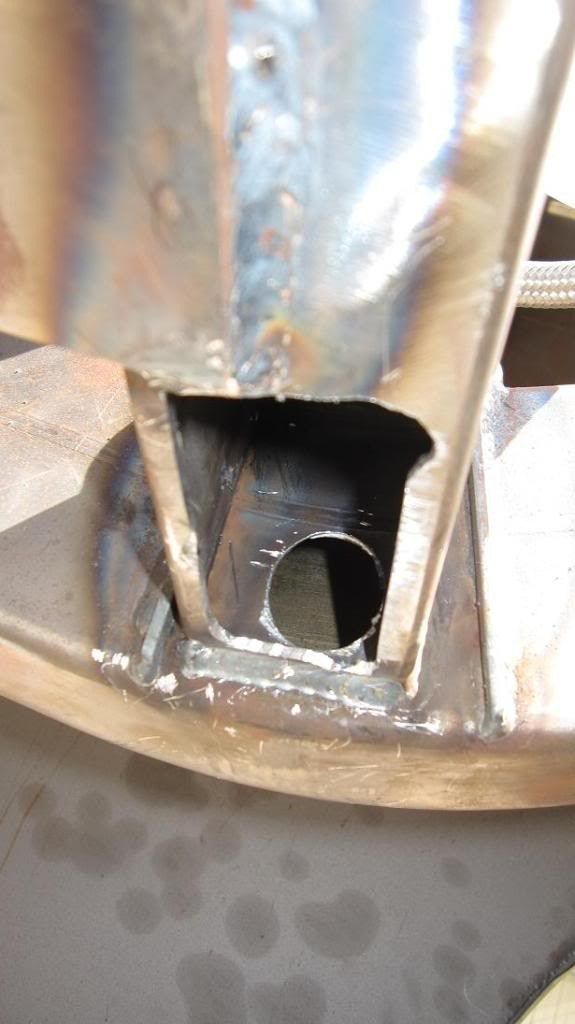

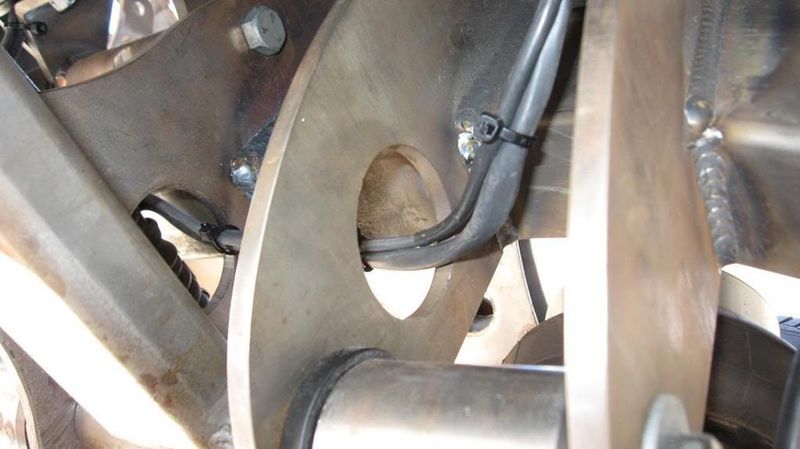

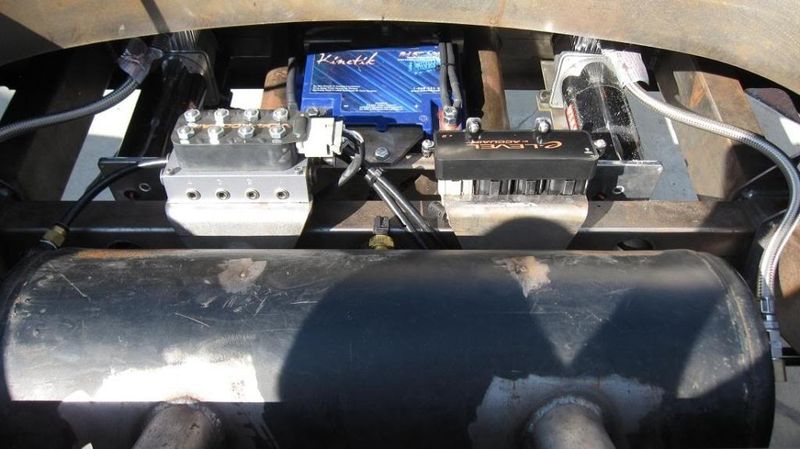

I opened up the bottom of the back crossmember and stuffed the wiring, big fuse, and relay inside. The little beauty holes made this challenging. I also drilled out the frame rails so the wires can pass through the crossmember to the framerails. I ended up drilling a hole into each beauty hole and ran the compressors and pressure switch wires into the crossmember through them.

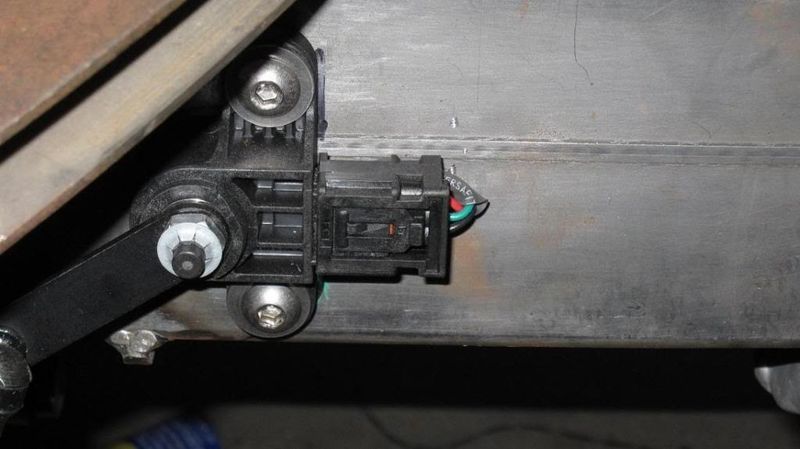

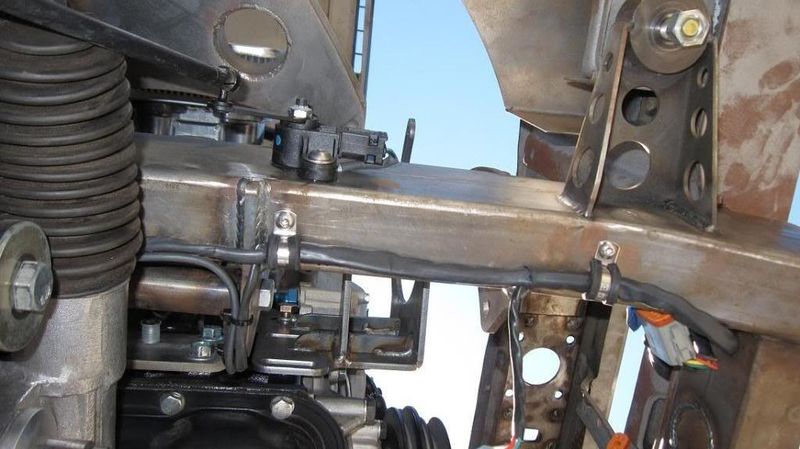

The level sensor wires are now ran through frame and exit behind the connector.
The controller wire goes down the left frame rail and exits mid frame runs along brake tube and into the back of the cab
I made a cover to cover the newly hacked up crossmember and wiring.

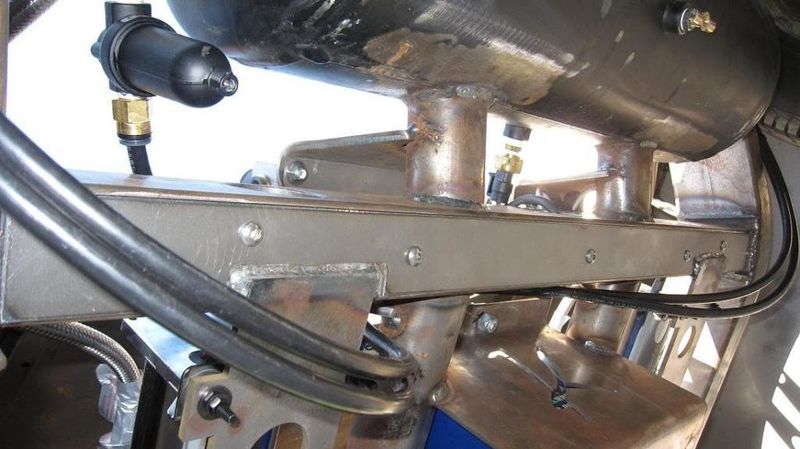

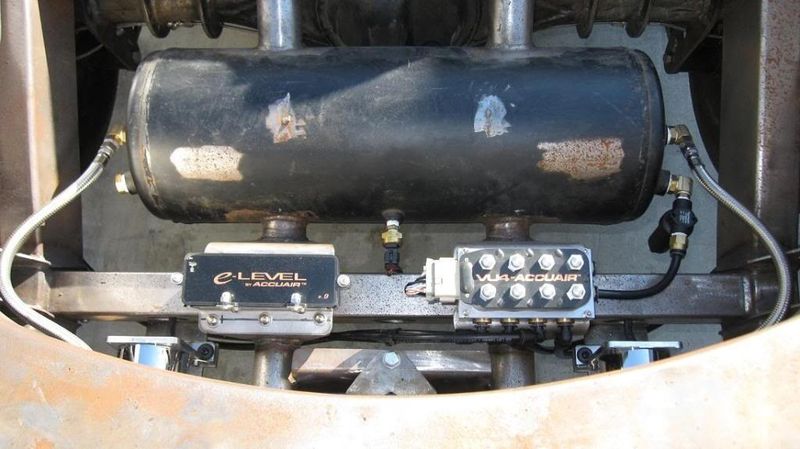

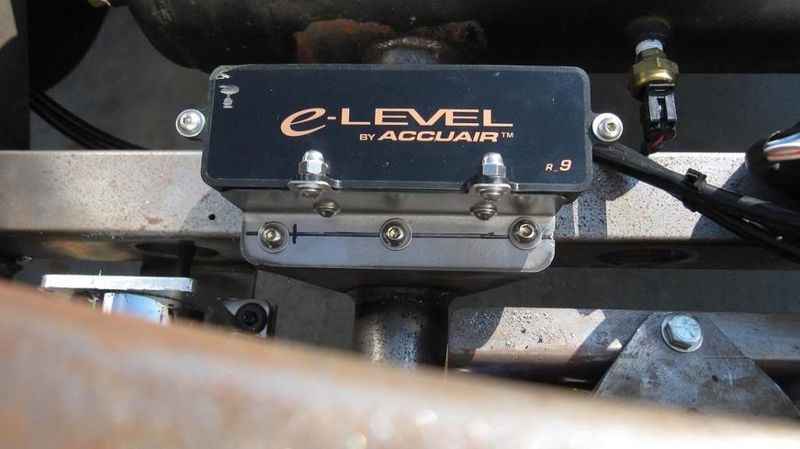

I flipped the Accuair so the connectors face downward so the wiring is less noticeable. I also lengthened the harness that connects thebrain to VU-4 so they can go through the crossmember. I had to make a bracket to hold the brain. A couple airlines were moved under the crossmember.

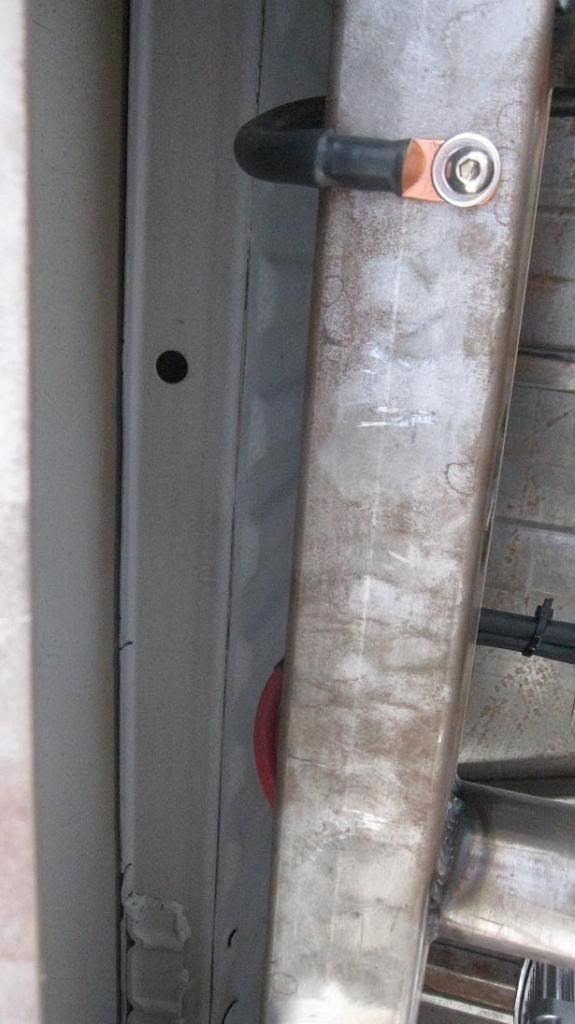

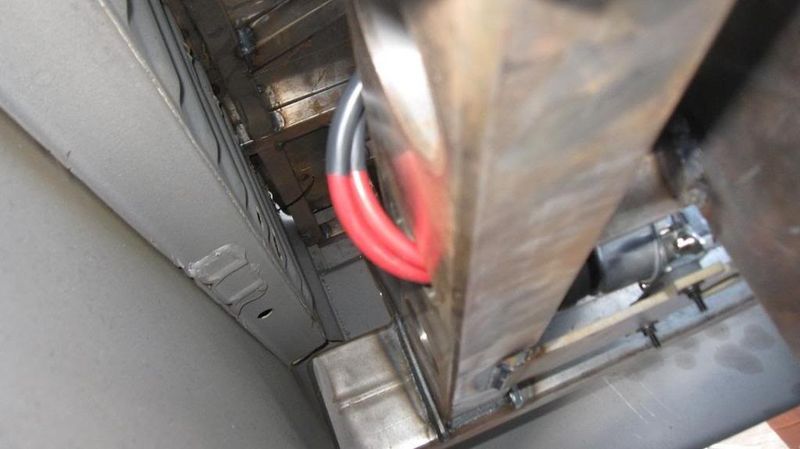

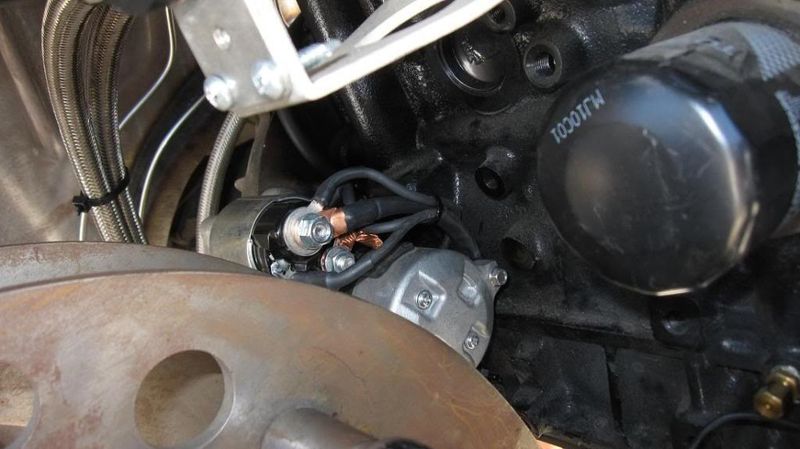

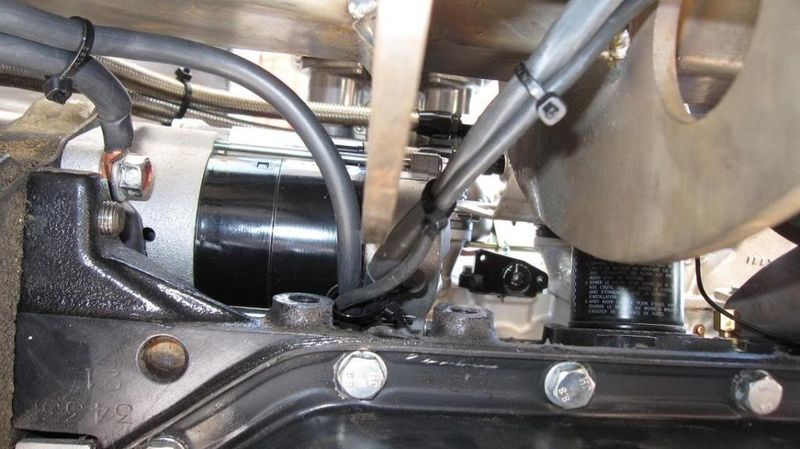

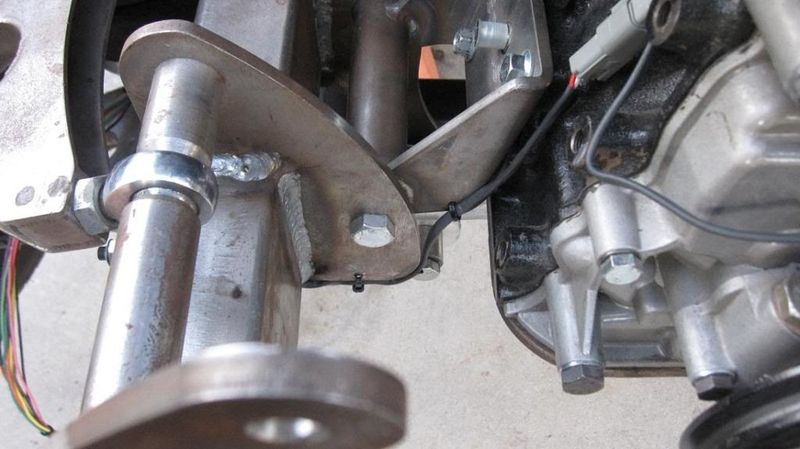

I routed the battery cables to the rear of the truck. The power goes into a tube and then in the crossmember and down the right framerail. Since it is carbed there is not very much engine wiring.

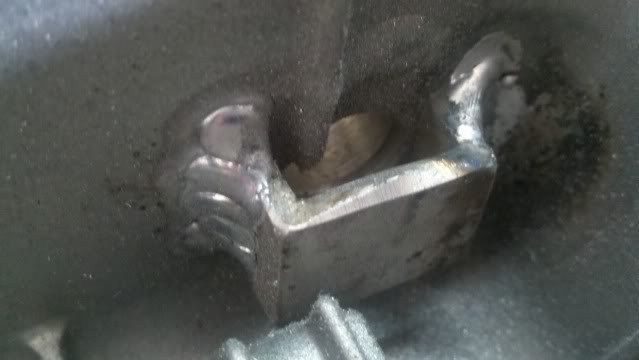

Bungs welded on radiator for fan sensor and gauge sensor

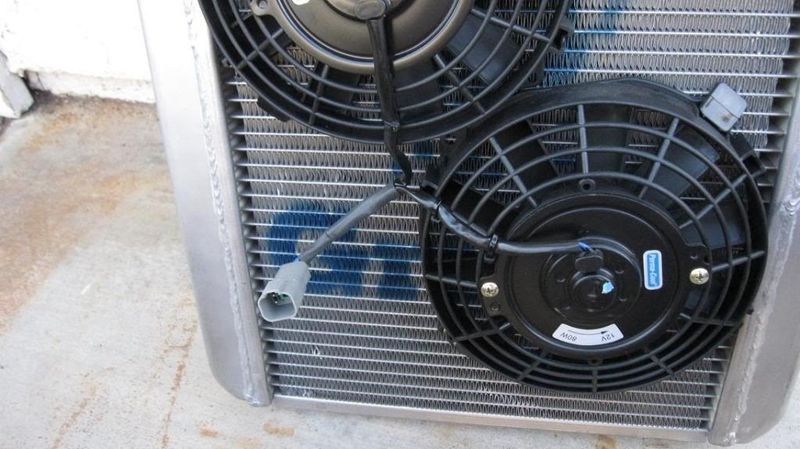

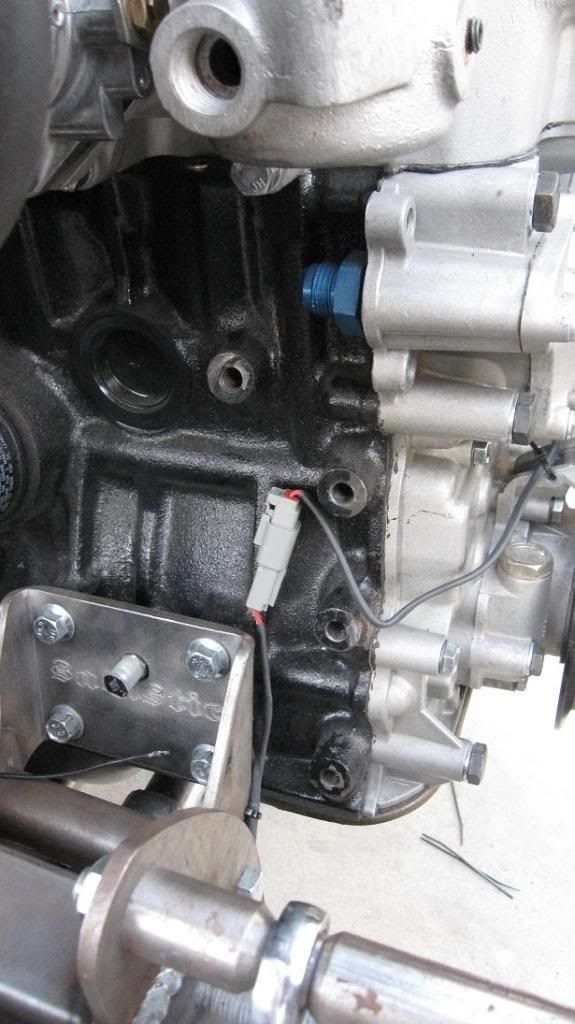

Fan connector
I cut out the Accuair brain mount and cut an opening below it for the wires to come through.
I opened up the bottom of the back crossmember and stuffed the wiring, big fuse, and relay inside. The little beauty holes made this challenging. I also drilled out the frame rails so the wires can pass through the crossmember to the framerails. I ended up drilling a hole into each beauty hole and ran the compressors and pressure switch wires into the crossmember through them.
The level sensor wires are now ran through frame and exit behind the connector.
The controller wire goes down the left frame rail and exits mid frame runs along brake tube and into the back of the cab
I made a cover to cover the newly hacked up crossmember and wiring.
I flipped the Accuair so the connectors face downward so the wiring is less noticeable. I also lengthened the harness that connects thebrain to VU-4 so they can go through the crossmember. I had to make a bracket to hold the brain. A couple airlines were moved under the crossmember.
I routed the battery cables to the rear of the truck. The power goes into a tube and then in the crossmember and down the right framerail. Since it is carbed there is not very much engine wiring.
Bungs welded on radiator for fan sensor and gauge sensor
Fan connector
