Project: ALMOST LEGAL

Nice job Craig...

Lookin good, can't wait to see this thing on the ground completely.

Keep us updated, and feel free to hit me up with anymore questions.


Devon

Well the upper A arm does hit the upper mount but when it hits its at 10" of lift between plates. I will trim the end of the plates only need 1/4 or so to make them clear. Both sidea are tacked in ready to weld up. I hope to get that all done mon night and slap the bags in. I hope this was the hard part (front) I plan on doing the rear next weekend.... i still need to get a comp thow

Thanks DevB22 for the help this weekend and with the parts. I wish i had another set of the upper bag mounts for the rear like the ones in the front...how long would it take to get them? By the weekend? I think when we talked you said to run the 6 in the front and the 5 in the rear right? Thanks again, Craig

I sent you an email!



Dev

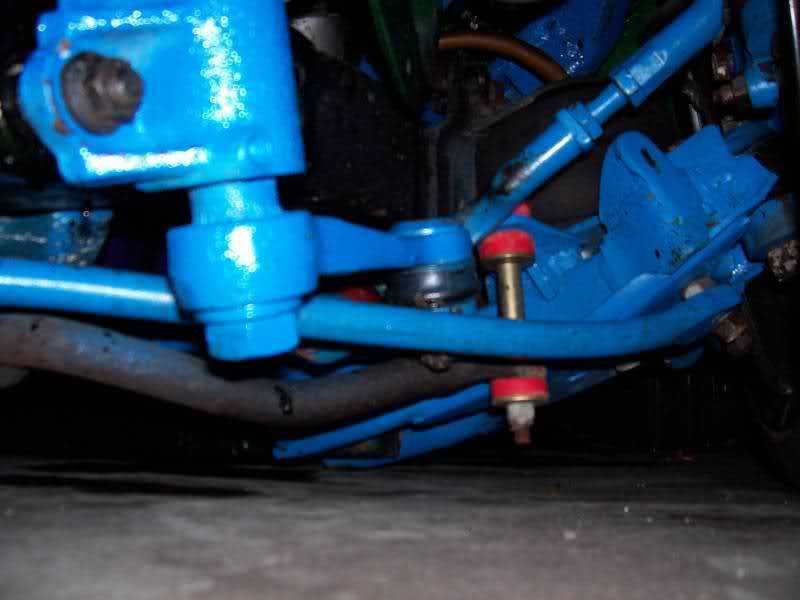

Ok guys this is bugging me i need pics of some sway bars? I have found tons of pics on the front but not one of them had a sway bar....leave it off??? I would rather run it if possible. Thanks, Craig

from the research i have done the sway bar gets scrapped when you bag the front.




-justin

I can see the pros and cons both ways... off it frees up each side and allows it to move better....on it make for a more stable ride.

I'm a big fan of sway bars, but they aren't necessary really. If you have nice shocks the truck won't sway much. I haven't seen a Mazda with a sway bar on it, the one I bagged had everything removed already, so I can't tell you if its possible to make them work or not.

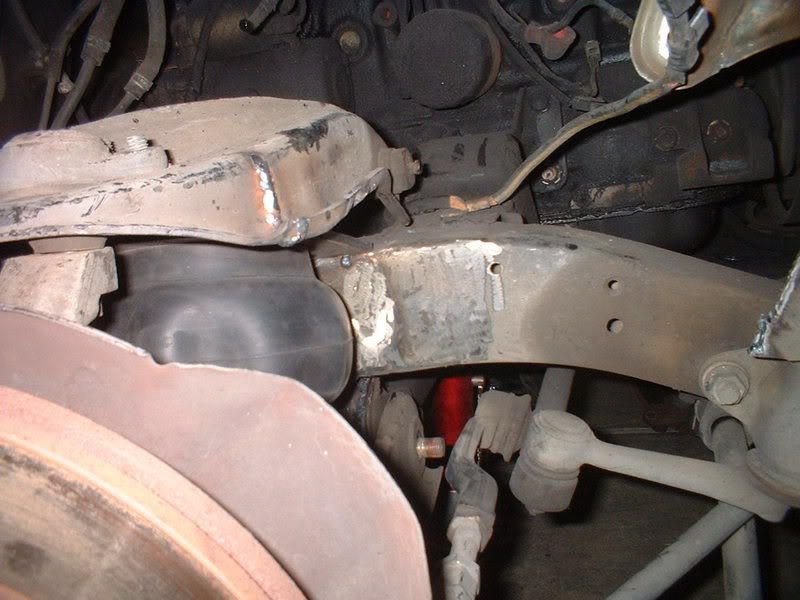

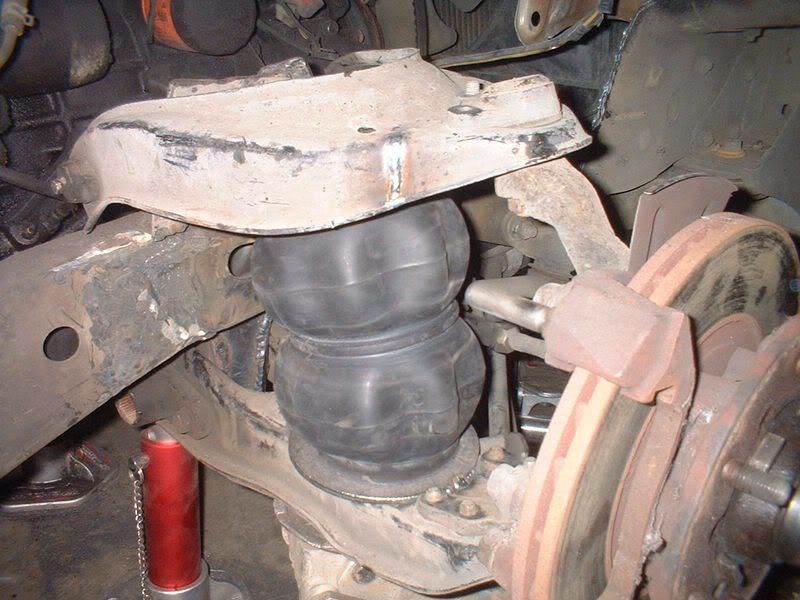

Here's a couple of pictures of the bag mounted in on the RF.





-Kyler

Best shot I can get. Tried to take pic with front end down to show how tight things get. Otherwise once the front is up to ride height there is no issues.

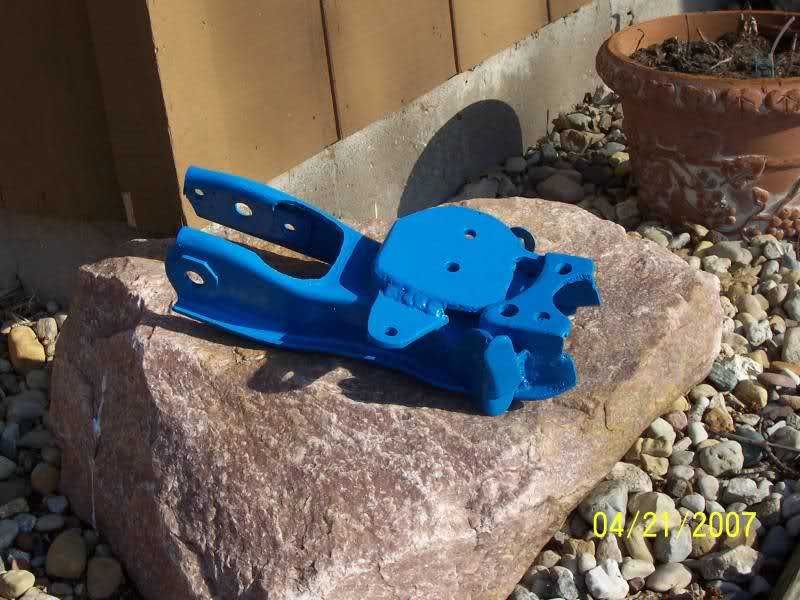

For what it's worth, this is just the lower control arm.
