Project: Sheeba

no updates?

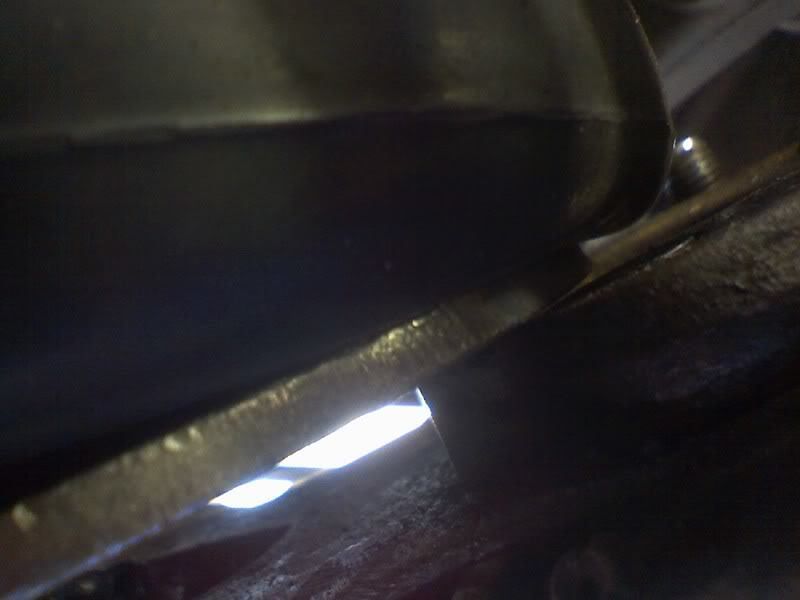

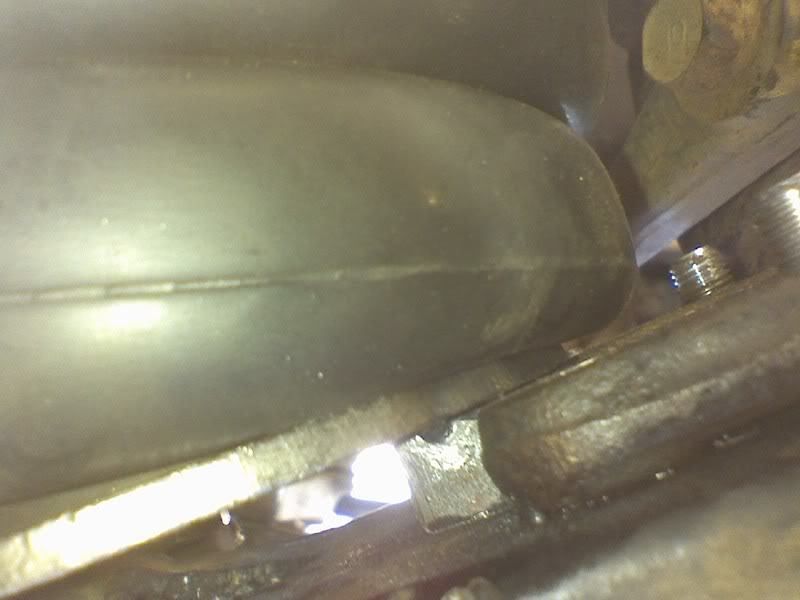

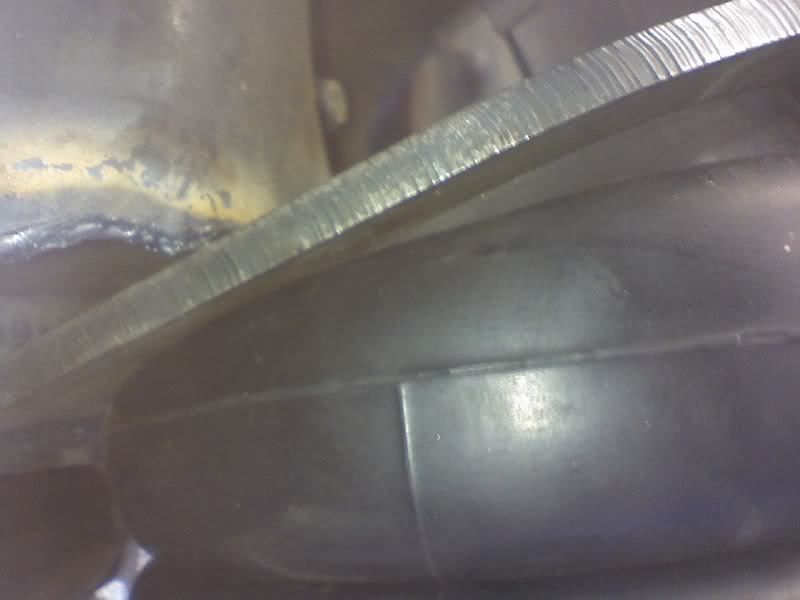

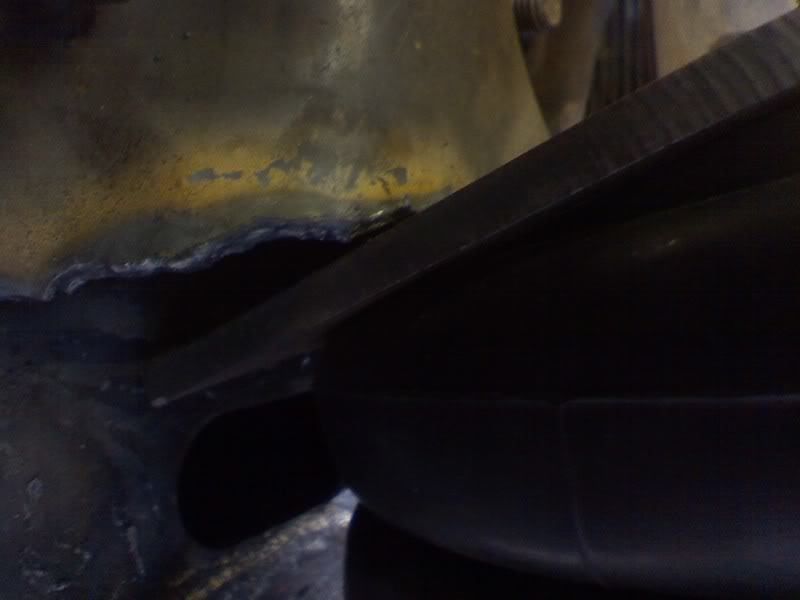

okay i need some help. it seems these re6's are alot harder to stuff in here than what everyone is tellin me without notching the frame. this first pic is the lower plate at the balljoint with the bag in and collapsed. the second one is the upper on the frame side. seems like it will be rubbing. judging by these two pics is this going to hurt anything and what can i do to make it do differently. the bag is perfectly collapsed straight on itself as far as i can tell.






hoping for some quick imput. thanks guys.





-justin

damn those pics are about to dark i believe ima go try some more with some better lighting





-justin

looks like you gotta go higher with the top bracket to straighten it up some. then it wouldnt rub

-justin

hey mazdawg man how far are you from me? got any plans for tonight? wanna help a fella out?





-justin

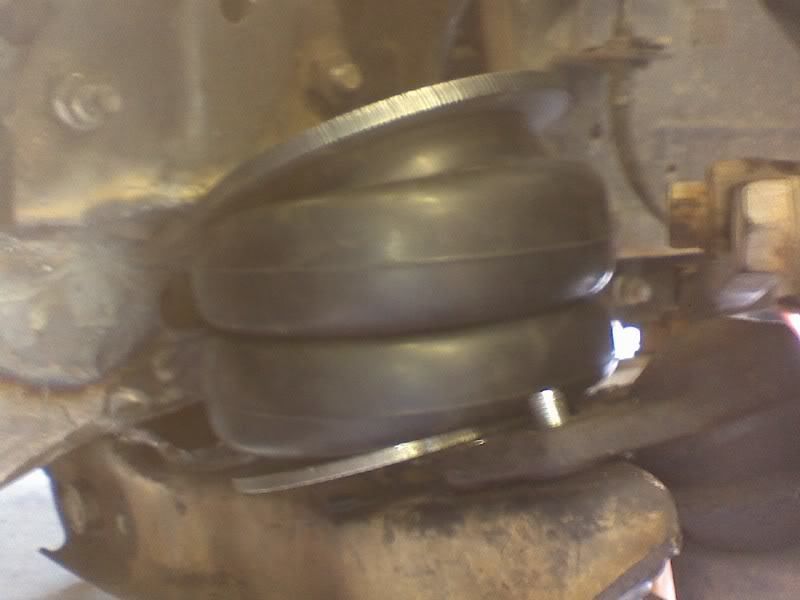

Hmm, Mine doesnt do that, But my lower bag plate isnt as far out as yours as well, These bags had no problem fitting in there with no issues at all, My upper is at the top of the fram raile, and lower is moved a lil back I have about a 1/2" clearance from everywhere, trying spacing the lower closer, or even cutting the upp shorter so it doesnt stick out as far so the bag doesnt collapse over an rub the lower plate

wanna give me that hood?.....lol

Lookin at the pics Im pretty sure you need to cut that upper plate shorter, We cut mine and mine was even shorter than yours starting out.

ALso make sure you measuer correctly, That bag isnt fully compressed, You wanna maximize your lift, So when tacing the welds on that upper plate be certain to have someone or something holding it down to keep the bag compressed fully
