hex0rz
+1y
Hey dropped, give this a little try..
Now according to:
The OD of the bag is 6".
So, if you take that measurement and add 1/2" to it so its 6 1/2" I would think that by doing so you can cut your upper bracket at this so it mounts to the bag and still has 1/2" clearance behind the bag at the frame rail. You may even need to go less, but I figure your thumb would be about that thick.
So with that said, get the upper bracket parallel with the lower with the bag out. Drop a plumb bob or even a weight like a small lead weight for fishing and drop it through the upper bracket. You then can use it to center up the lower bracket. Which means now, your lower should'nt be sitting on top of the balljoint.
Play around with it like that and see what you get. I'm sure you already know that if you need to tack it in to see what you get.
By the looks of it, you still have too much angle on the brackets and it is'nt collapsing in on itself or else the top and bottom of the bag would'nt look like that.
Well anyways, give her a whirl and see what you get! Its what I would try and do atleast...
Now according to:
The OD of the bag is 6".
So, if you take that measurement and add 1/2" to it so its 6 1/2" I would think that by doing so you can cut your upper bracket at this so it mounts to the bag and still has 1/2" clearance behind the bag at the frame rail. You may even need to go less, but I figure your thumb would be about that thick.
So with that said, get the upper bracket parallel with the lower with the bag out. Drop a plumb bob or even a weight like a small lead weight for fishing and drop it through the upper bracket. You then can use it to center up the lower bracket. Which means now, your lower should'nt be sitting on top of the balljoint.
Play around with it like that and see what you get. I'm sure you already know that if you need to tack it in to see what you get.
By the looks of it, you still have too much angle on the brackets and it is'nt collapsing in on itself or else the top and bottom of the bag would'nt look like that.
Well anyways, give her a whirl and see what you get! Its what I would try and do atleast...
dropped90(justin)
+1y
lol mazdawg i cant give you the hood. But im completely serious when asking what is your plans for tonight. i dont have the funds to pay you but i would give you gas money. it would be sweet if we could work something out. im gettin really frustrated with this thing. my number is 828-638-3416. not asking you to come do it for me but to come and maybe give me some pointers and stuff like that.
-justin
-justin
slammedyota91
+1y

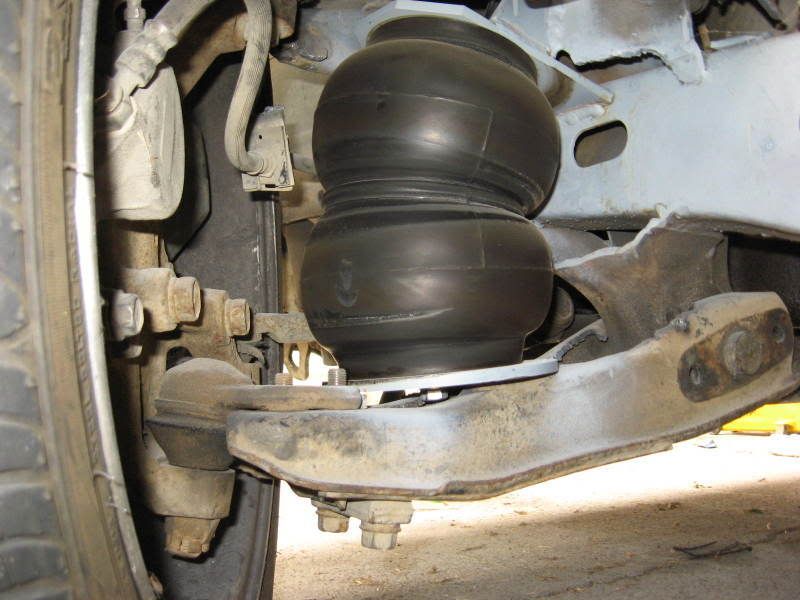

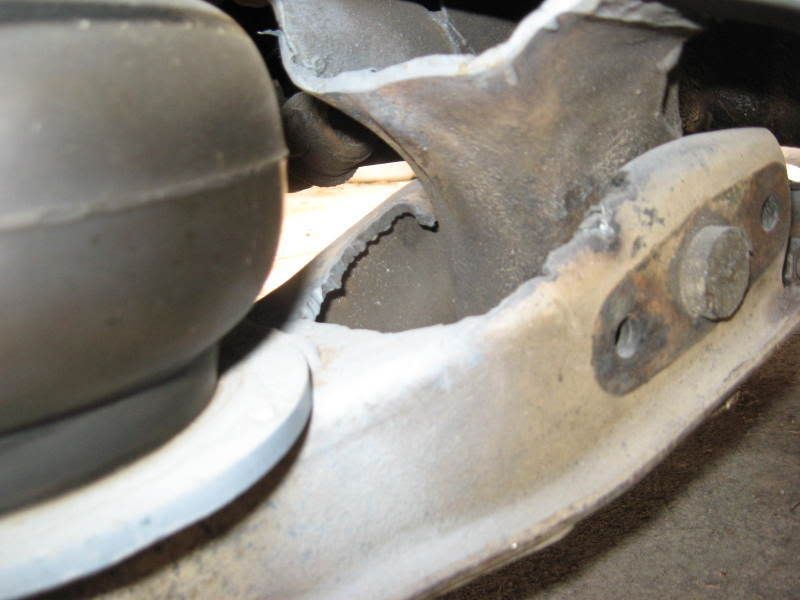

That would be kickass if he could help you, I would if I was clser lol, Sorry man, I took a pic of how much we cut outta my lower arm, And how short my upper bag plate is.. Im uploading them right now for you
slammedyota91
+1y
That would be kickass if he could help you, I would if I was clser lol, Sorry man, I took a pic of how much we cut outta my lower arm, And how short my upper bag plate is.. Im uploading them right now for you
slammedyota91
+1y
Mine still isnt done so everyone knows, I dont drive the truck often, Were adding gussets to it and filling the hole, Just havent had time for a while

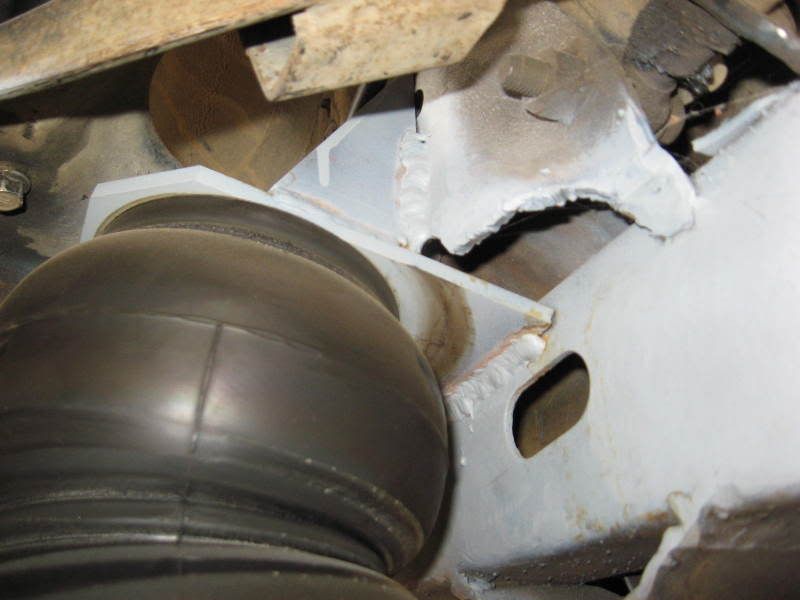

See how much shorter my upper plate is..
Mine still isnt done so everyone knows, I dont drive the truck often, Were adding gussets to it and filling the hole, Just havent had time for a while
See how much shorter my upper plate is..
dropped90(justin)
+1y
my plate is just about that small man. im tackin in the upper now on the top almost level and see what i get
-justin
-justin
dropped90(justin)
+1y
im thinkin maybe the lower plate needs to go towards the frame. the upper cant be any shorter because its gonna hit the frame if i do cuz layed out is like a 1/4" gap
-justin
im thinkin maybe the lower plate needs to go towards the frame. the upper cant be any shorter because its gonna hit the frame if i do cuz layed out is like a 1/4" gap
-justin
slammedyota91
+1y
That looks good, My lower isnt near the bj, Yours shouldnt be, Cuz how you suppose to change it out if you need to... Move that plate toward the fram a lil bit and you should be good.
