Canadian built... Project Dool-Eh!... Lots of pics

Ok here's what I've got for the front...I really hate the way the front crossmember looks and the old spring pockets were rusty as fuck, so I decided to build my own ends that give me more room for the bags and look much better. They actually sort of resemble the rear bridge.

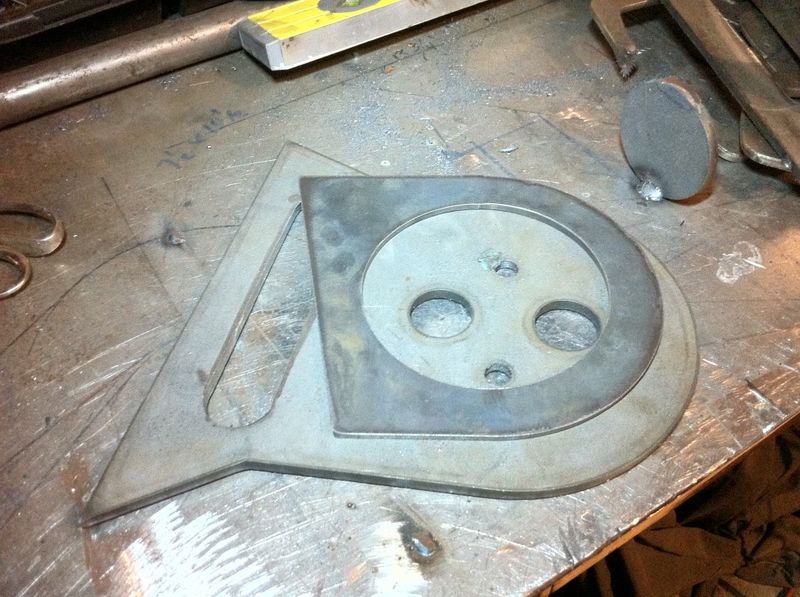

After a bunch of measurements and templates, I had by pal burn me out the top and bottom plates

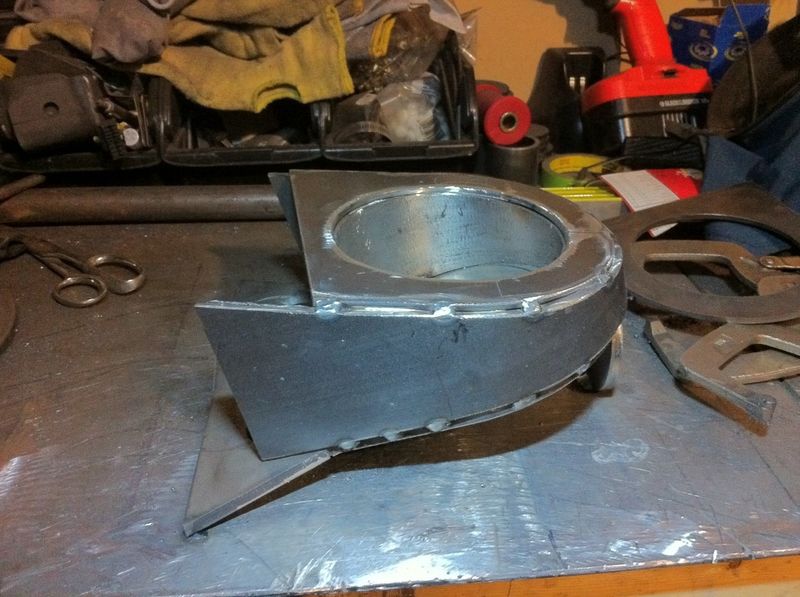

Then started tacking it up with a piece of 5" pipe in there as well

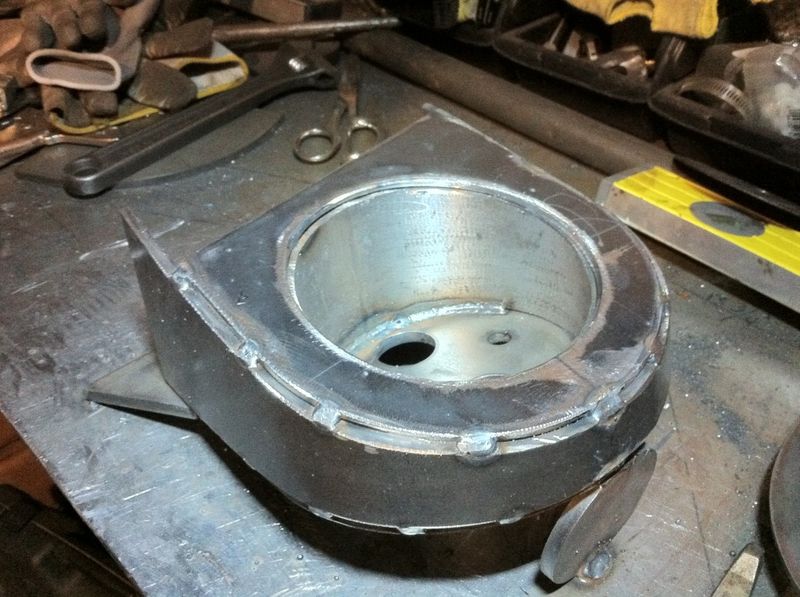

Coming together

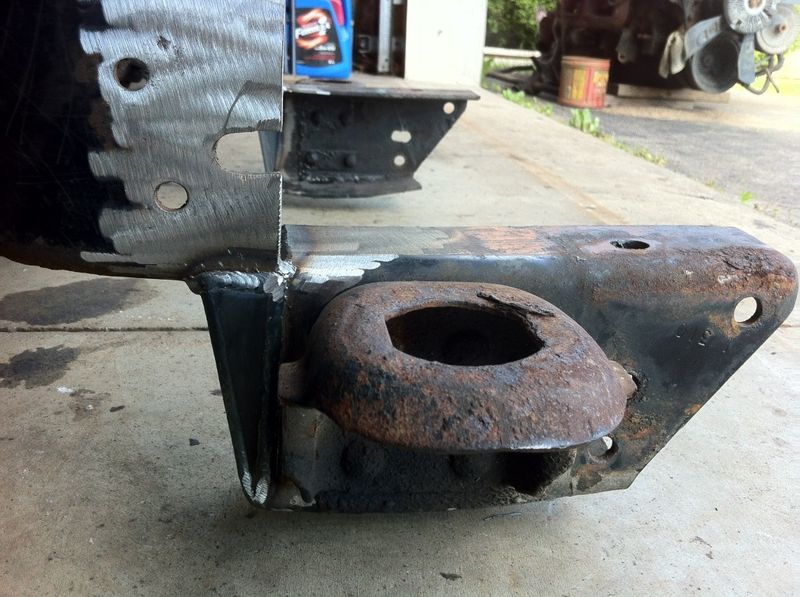

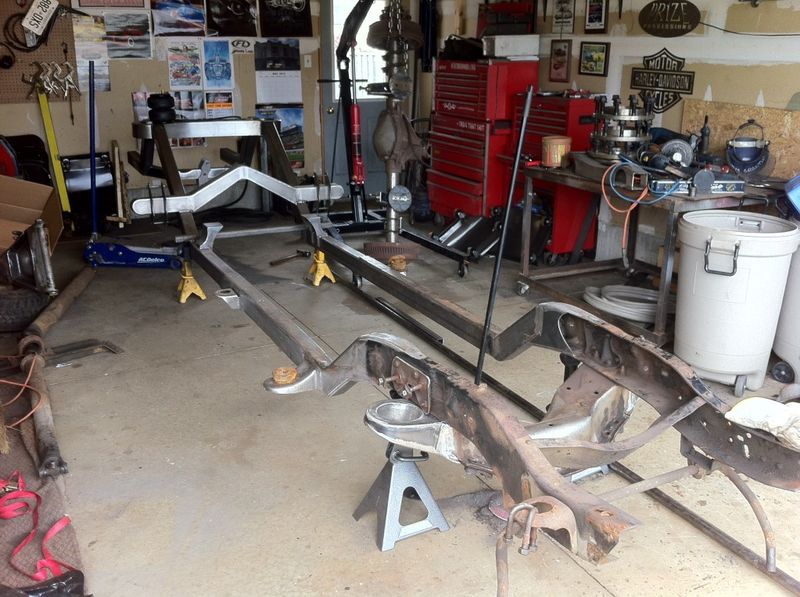

I was working away so good that I didn't snap any pics of them welded but they turned out pretty nice I promise. After more measuring, it was time to cut the old ends off

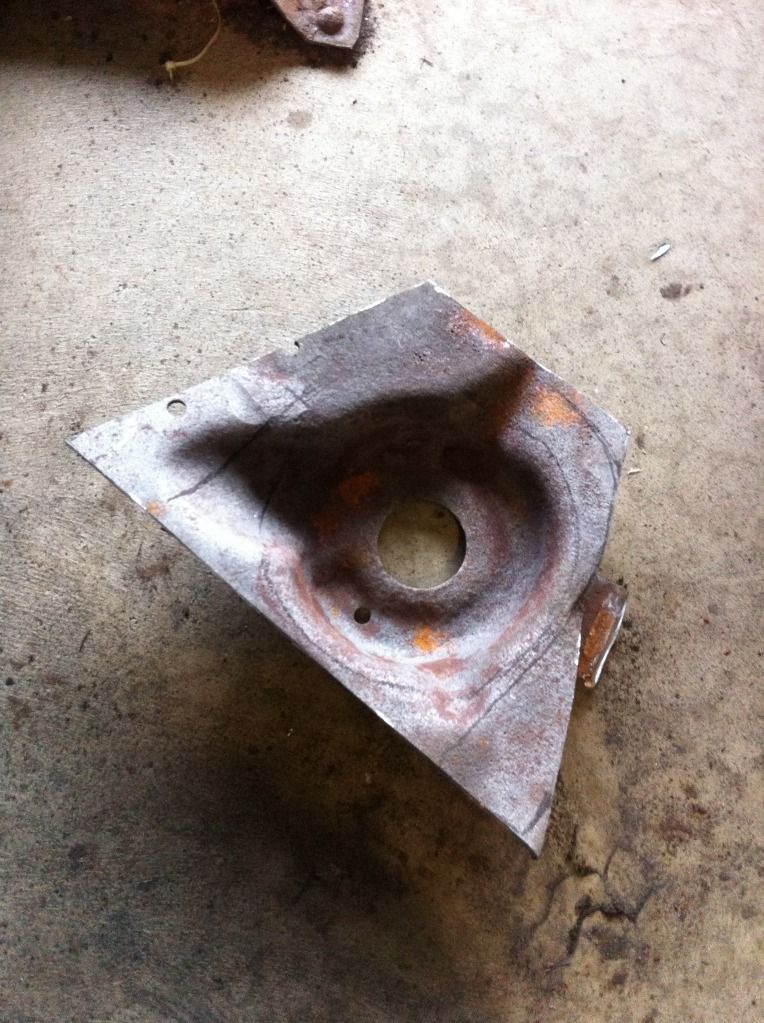

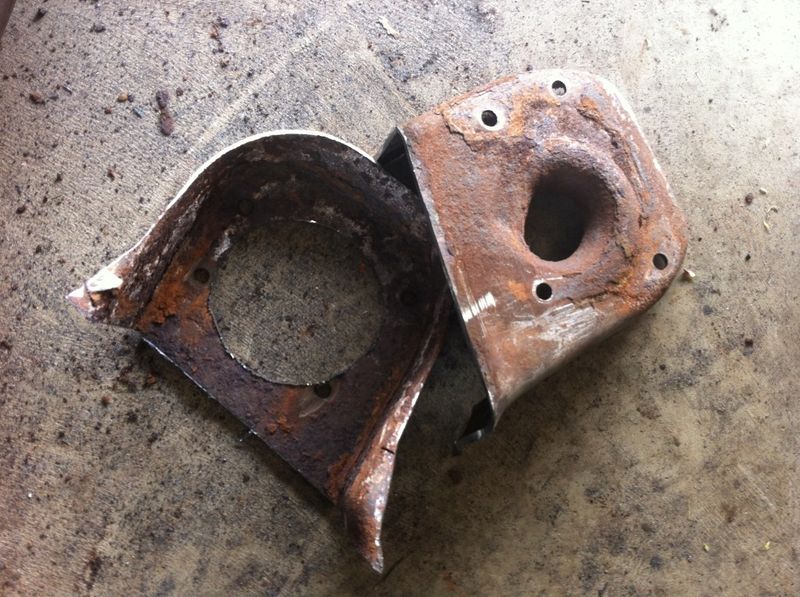

Scrap metal

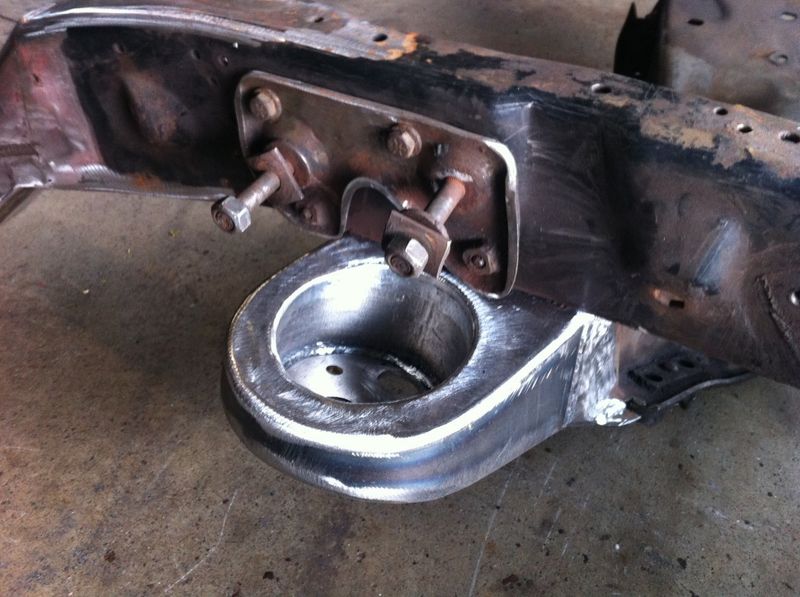

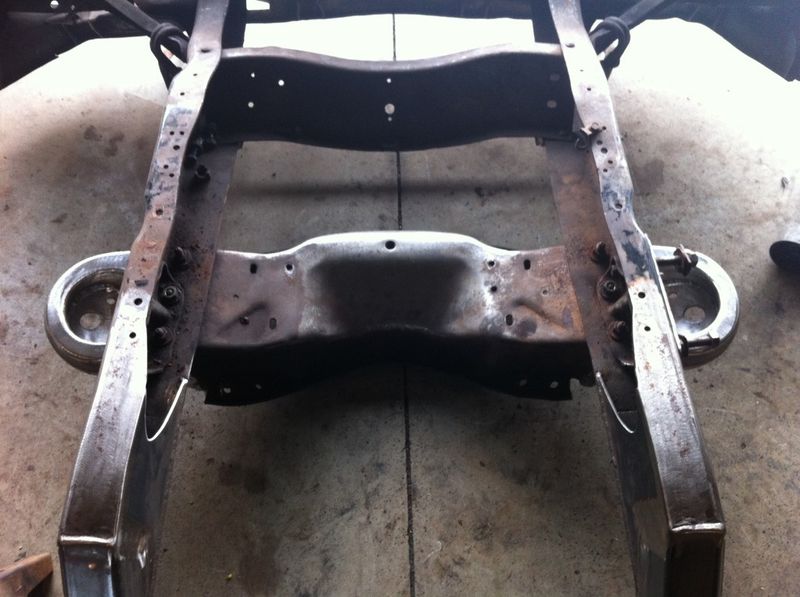

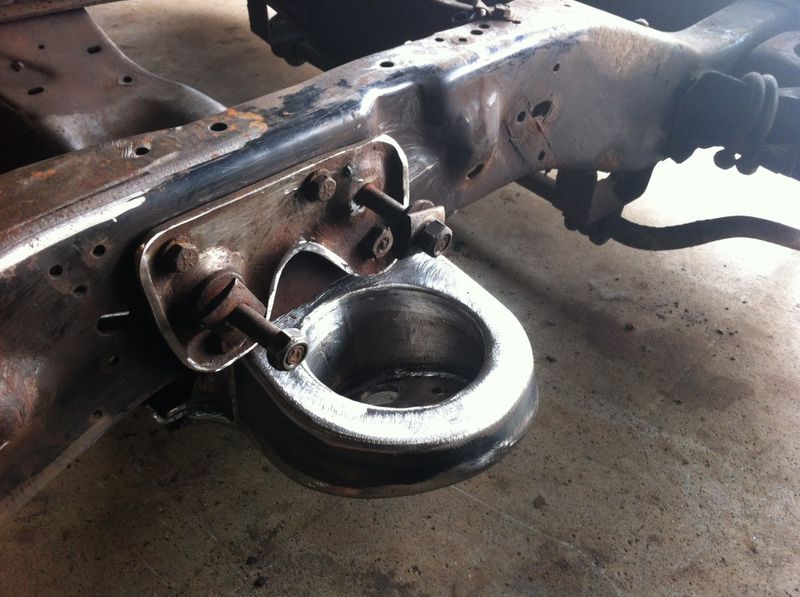

And here it is all welded, metal finished and installed in its new home

Once again I didn't take any pics of just the crossmember before I bolted it back in... I also chopped and "spruced up" the bracket that the upper control arm bolts to... Not sure if I like it enough to keep it as is or make some new control arm mounts

Another shot with the bracket on

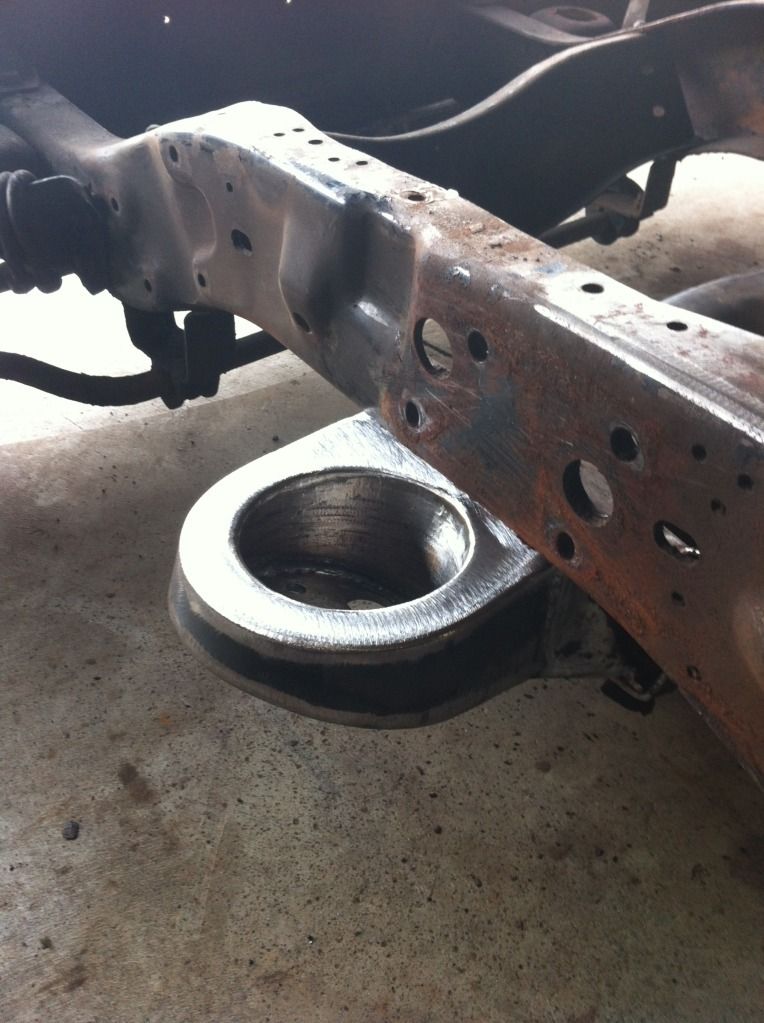

Top view




Next up is to pocket the lower arms and bolt everything up as a roller so I can push the frame out into the driveway for some full pics as well as give the shop a good clean out... I've decided to make my own upper and lower arms but I don't have the time right now before I show it off at vanfest in about a month. When I do though, I'll be selling the pocketed lower and pie cut uppers if anyone is interested down the road

BOOM!!

Darrell

keep me in mind if you do sell them, i might beinterested!

im kindah suprized that you didnt made a complete crossmember in the same holed style as the rest of the truck
i know porterbuild did a bundle of them and made good money selling them

i might be at vanfest this year with my daily driver, i'd deffinetly be interested in the arms for my 88 if they end up going forsale in the future

I'm DEFINITELY interested !!!!!!!

Really spectacular metal work! I'm sure you have motivated many to get started or get back on their projects. Thanks!!

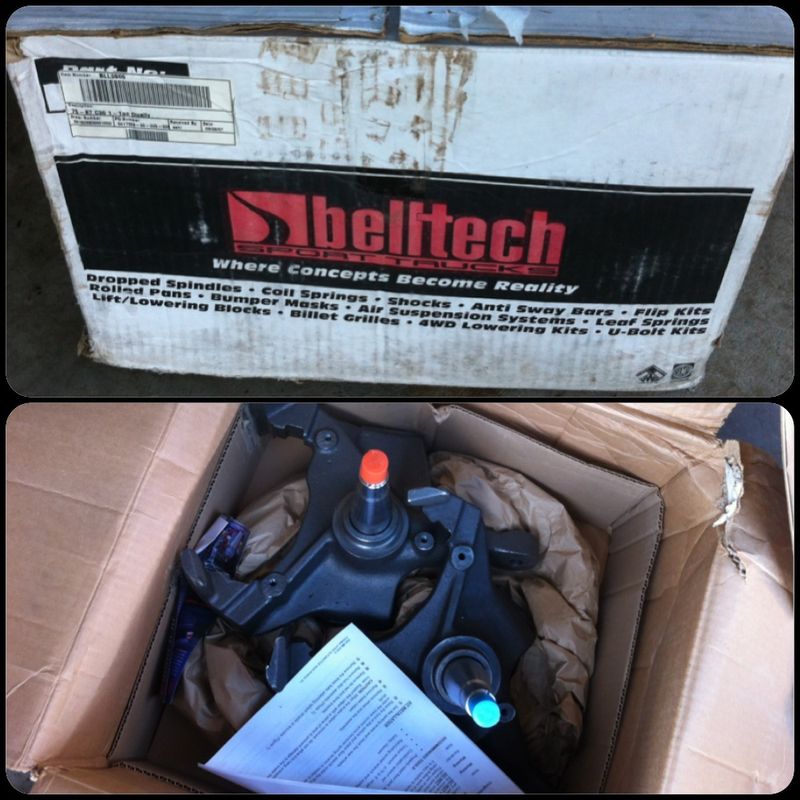

Truck is coming along great so far leading up to our local show this weekend (vanfest) Not gonna post any pics of the truck but here's a few teasers of some parts...

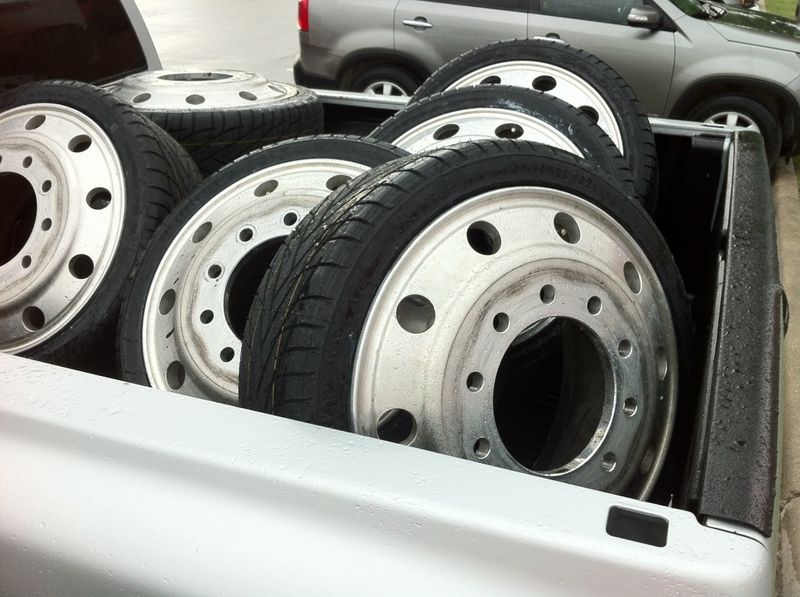

Finally ordered tires and got em all mounted up...

Walked into a smokin deal on these hard to find gems (up here anyways) today so I couldn't pass them up.


I've got a ton more to show but not till after this weekend. Anyone local, come on out to the show and say hi...

Double post*

Ok time to update this bitch...here's from where I last posted pics...

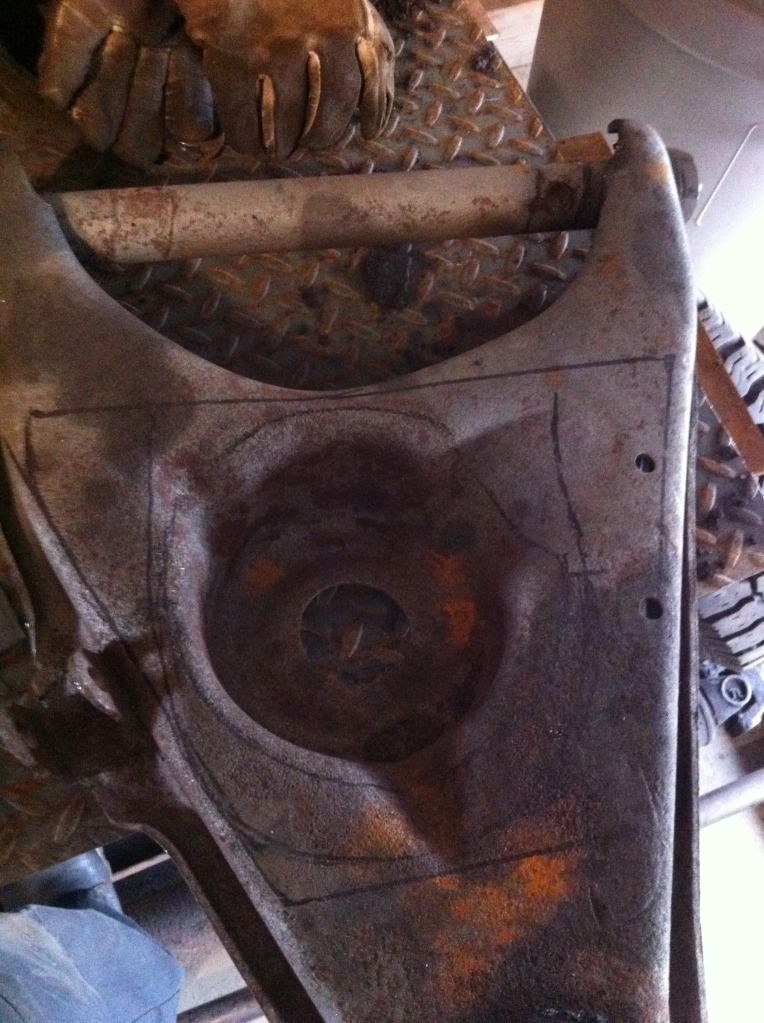

Was gonna pocket the lowers with a large piece of pipe but I was having a hard time finding some locally and I was in a hurry so I just went ahead and did em this way

Cut out

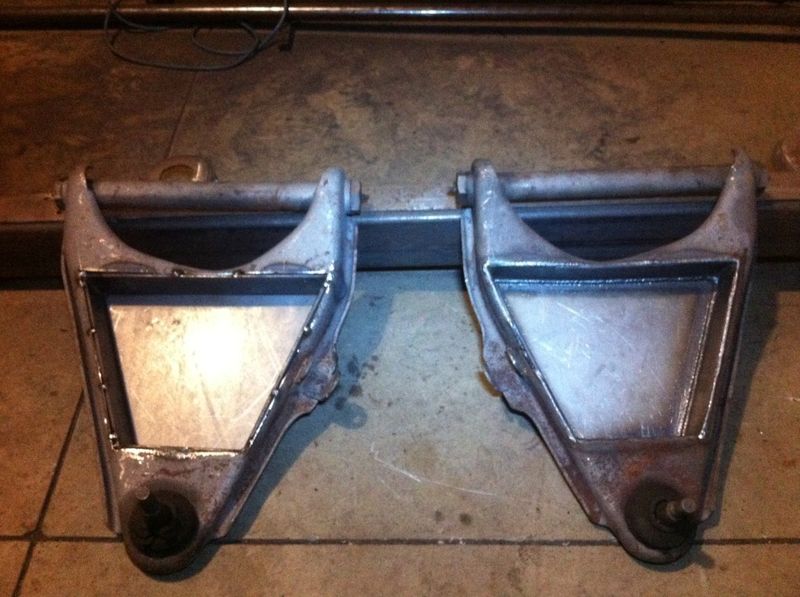

One tacked, one welded... Pocketed 2.5 inches

Lots of welding into these things

With about 2 weeks before vanfest I decided that I wanted to take the truck in its current state with the cab on so people could see what kind of truck it was. So I needed to finish welding the entire under side of the frame before we dropped the cab on.

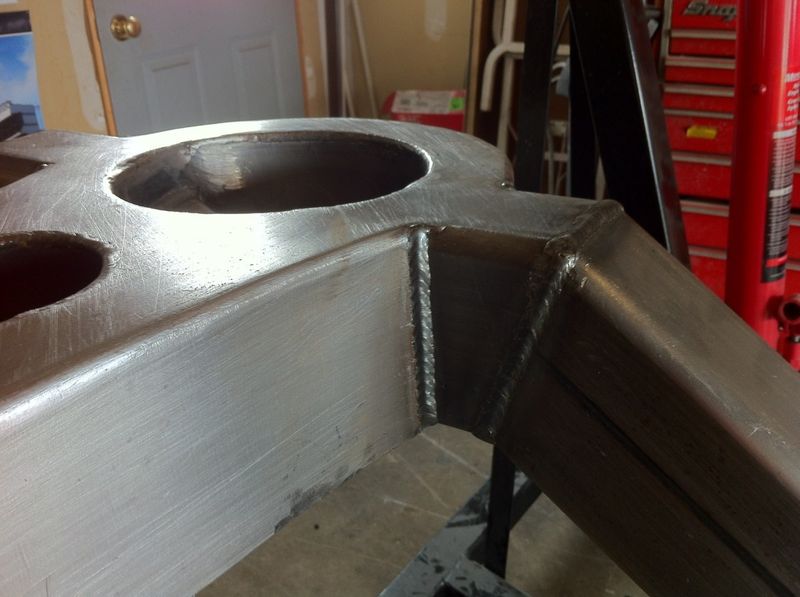

Spent nearly 2 days welding and metal finishing the rest of the frame

All welded and ready to reassemble the suspension

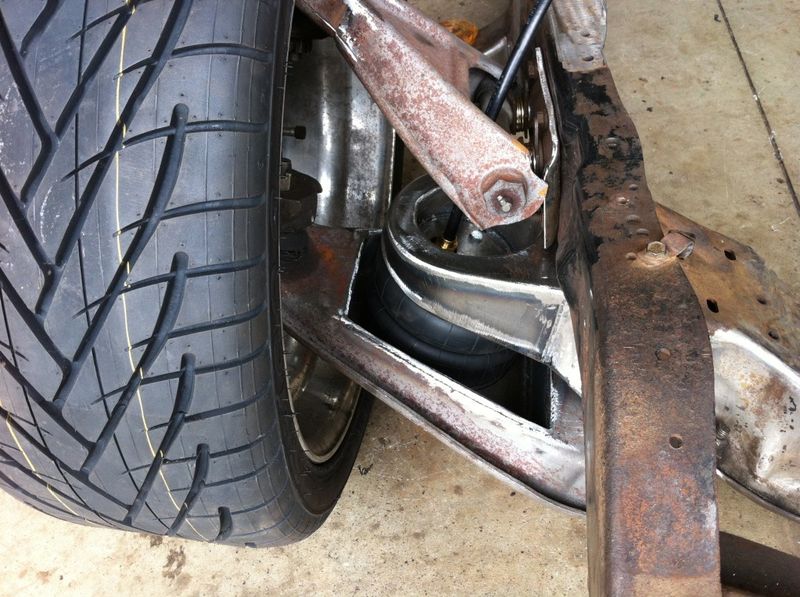

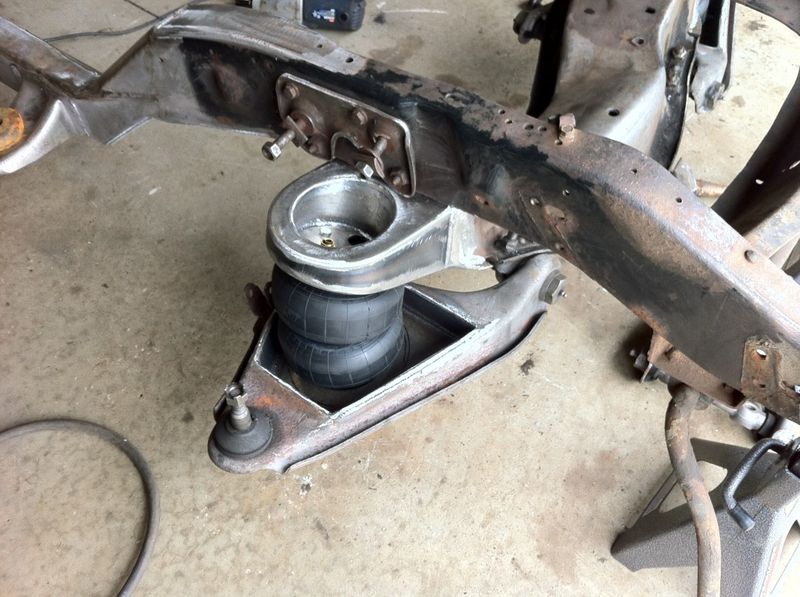

Lower arms and bags in

Pie cut uppers... This is also when I bought all my tires

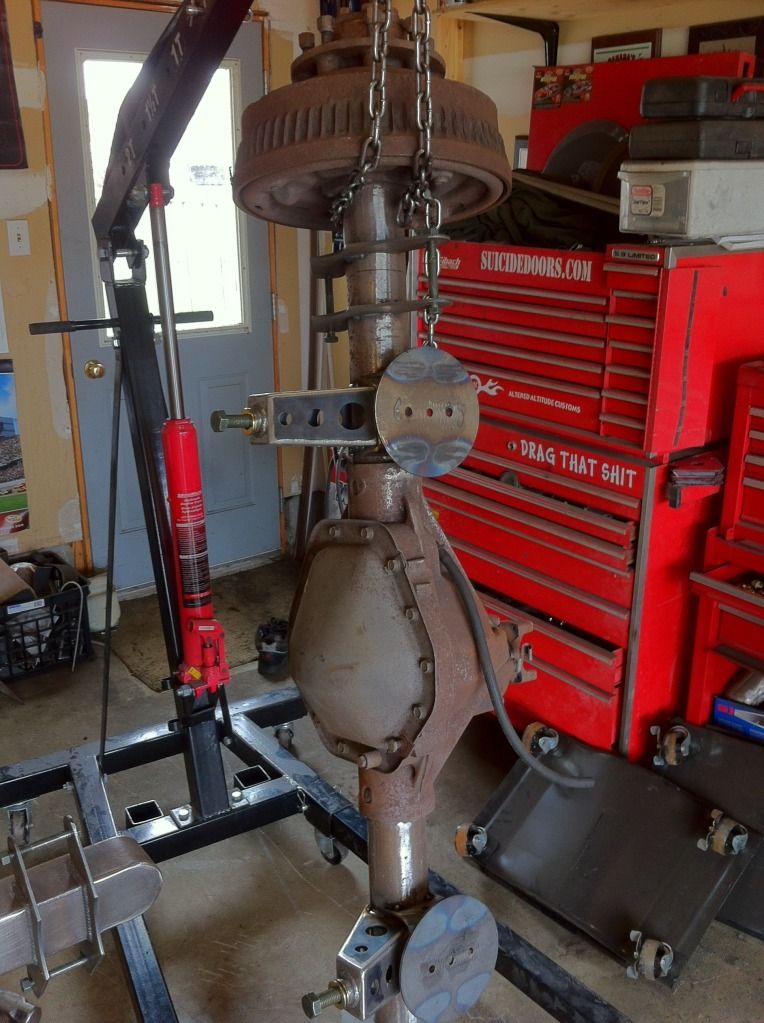

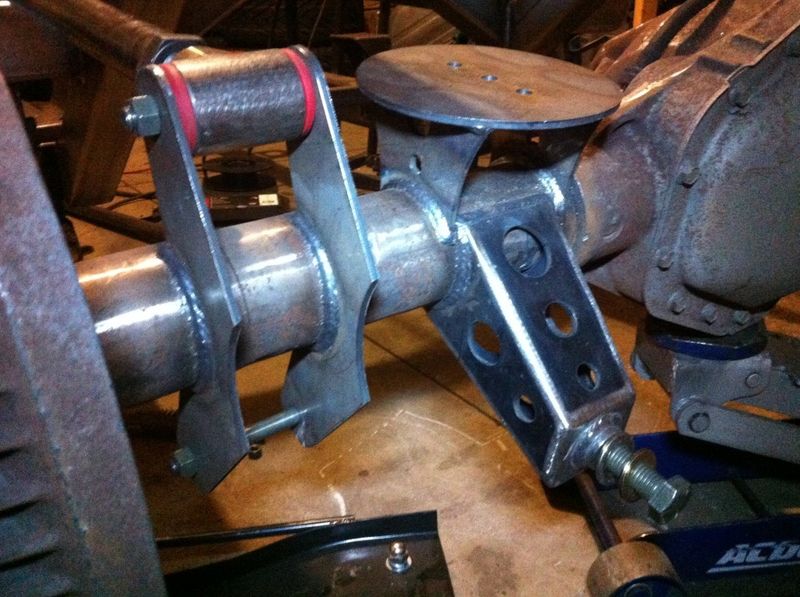

Onto the rear, I needed to finish welding all the brackets attached to the axle. I stood it on its ends so I could weld everything in 1 pass rather than any out of position welding with stops and starts

Back under the frame for reassembly. All the welds turned out beauty

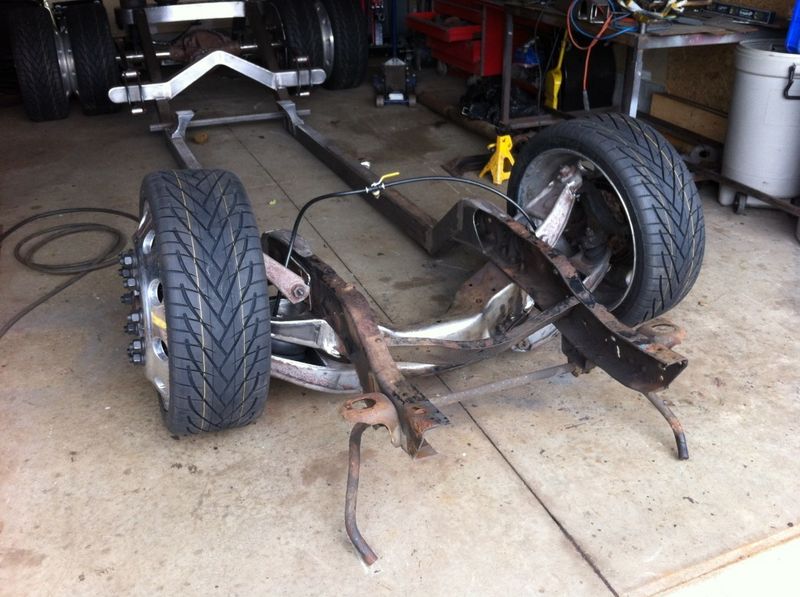

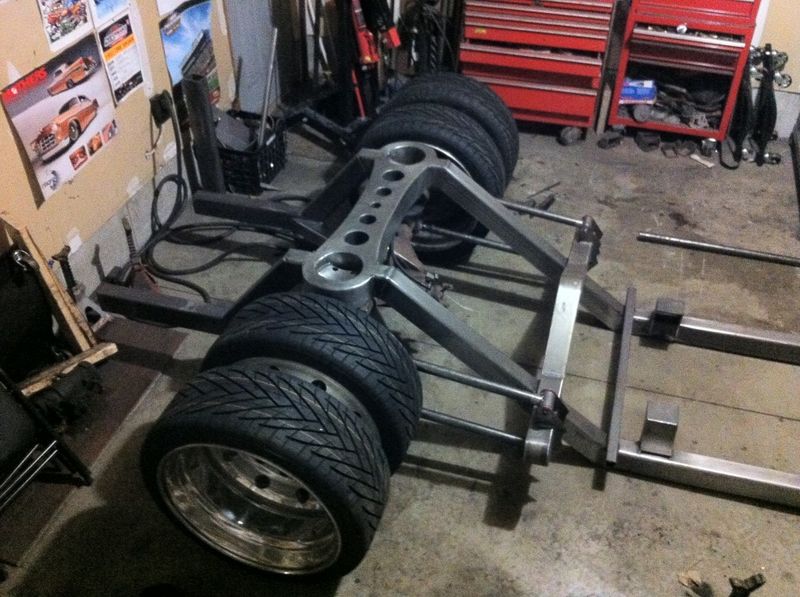

Wheels and tires mounted and we've got a full roller

Ready for the cab

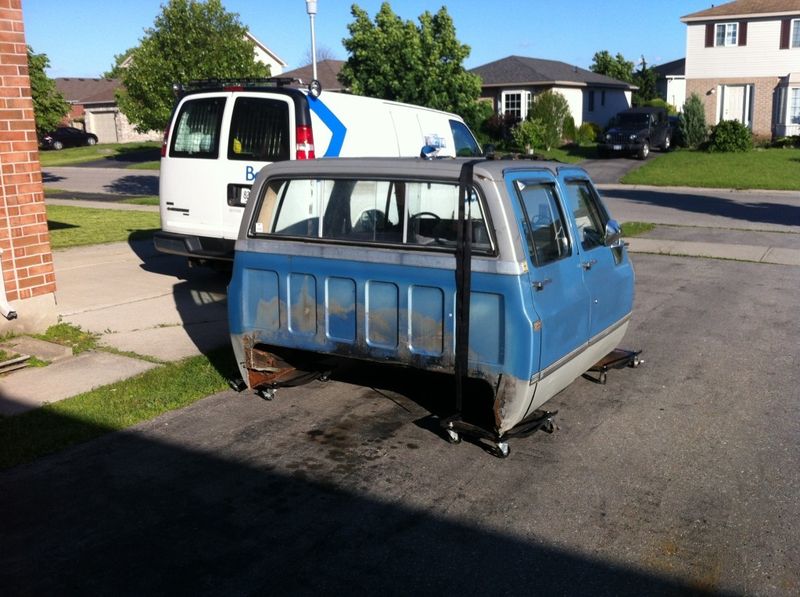

Ready for the frame... This fuckin things been sitting in my driveway for nearly 8 months!

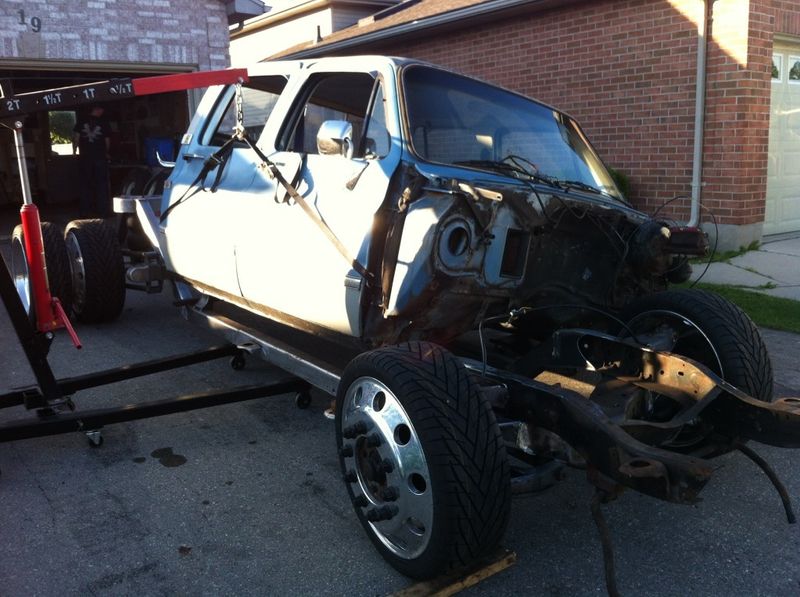

Going back on! (This is only 4 days before the show)

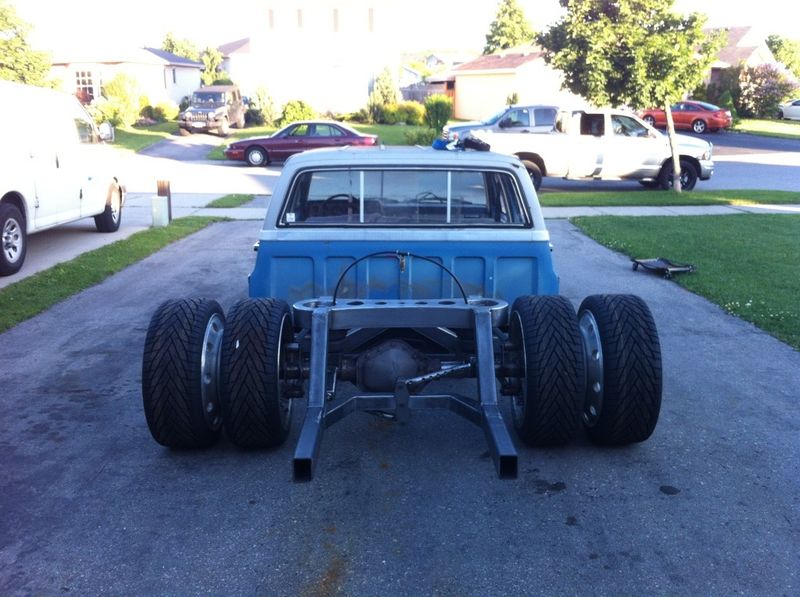

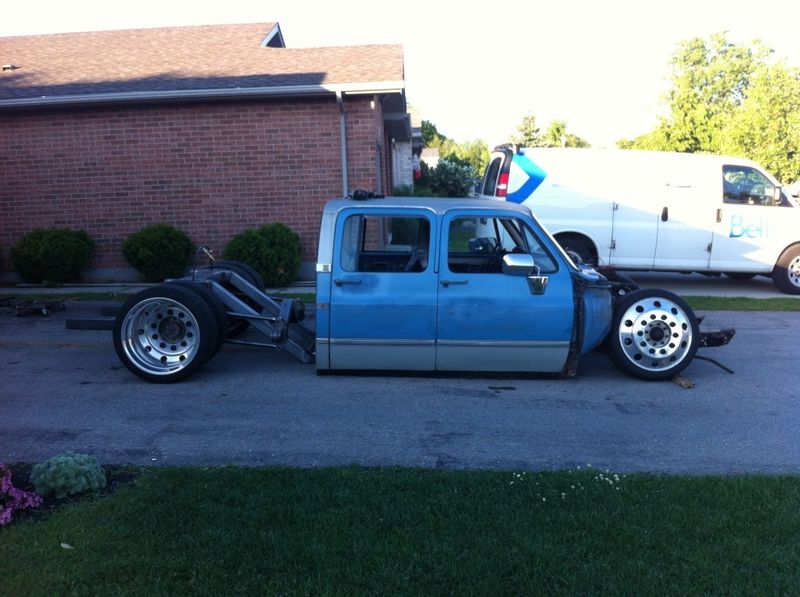

Boom!... Back on and layed out for the first time... To say I was excited would be an understatement

Big time junk in the trunk

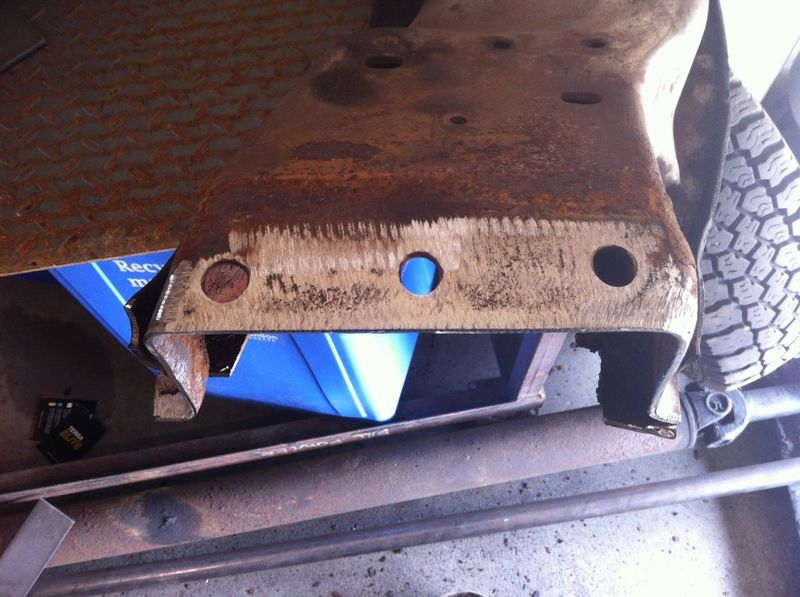

I wanted to put the front end back on with the bumper so I finally got around to dropping the front frame horns
