Project: ALMOST LEGAL

sweet. what size tank did you go wtih? what you plan on doing for a fuel tank?




-justin

We went with the slim long tank with the 4 ports in the front. as for the fuel cell were going for the 16 gallon tank from summit for $229, so that it will sit behind the cab inside the bed.

-Kyler

might think about putting it somewhere else rather than just inside the bed. everything looks simple and clean, and thought out. you wouldn't want to ruin that with a sloppy fuel cell install just 'inside the bed'

The fuel cell is a nice allum one that will go right behind the cab it should look pretty clean.. I will try and found it online so you can see the pics. Thanks for the props on the build.

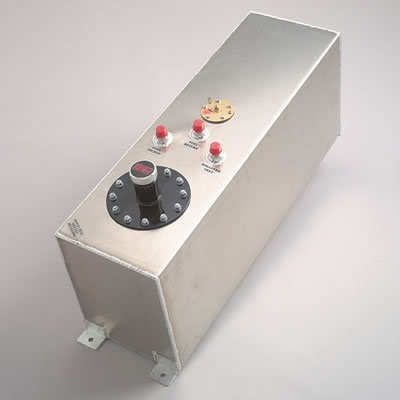

Heres the picture of the tank we plan to put in the bed...

Well this what we have so far havnt really got to work on it much but got some stuff done today. Need to run wires and lines oh ya still need comp...what should i get? The dual viairs? Allmost ready to bring the bed back in...not sure if you can see it in the picks but i got to close to the wiring for the back and hacked it off oopppsss so need to splice that back together. What do ya think?

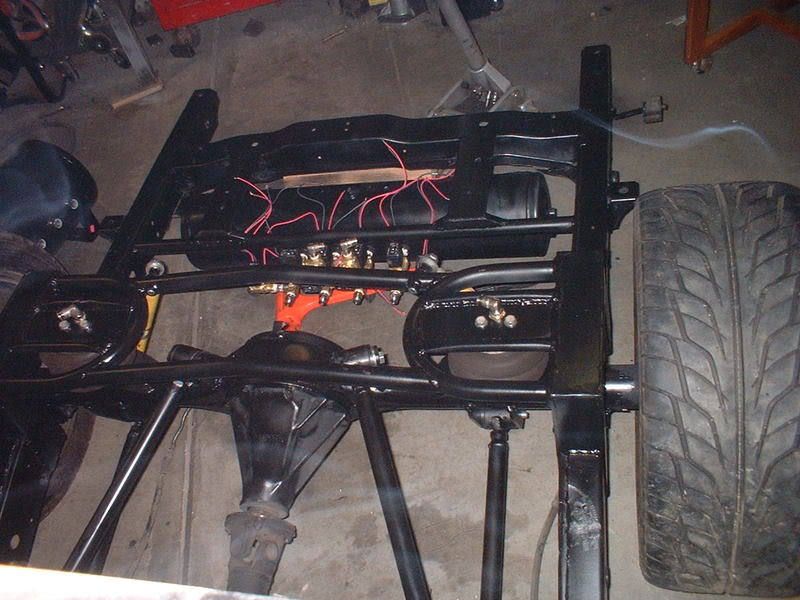

Truck down painted with tank in

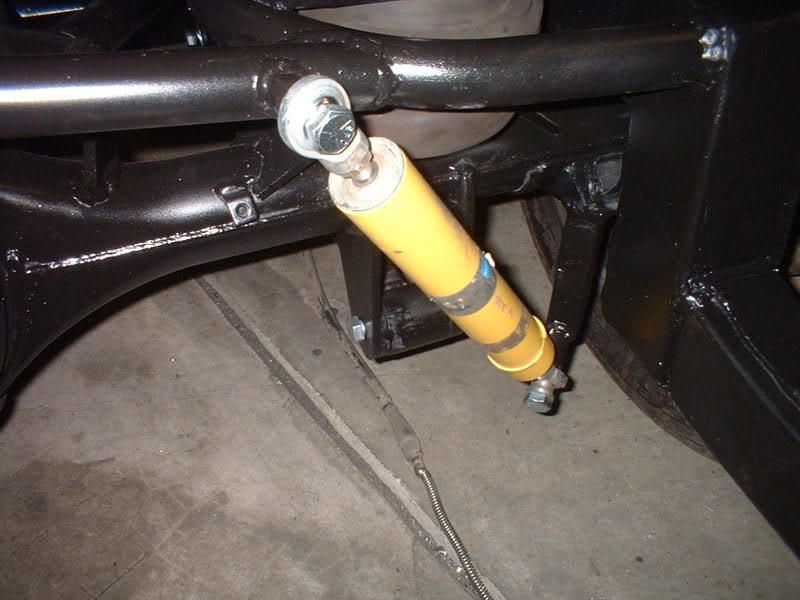

Shock mount

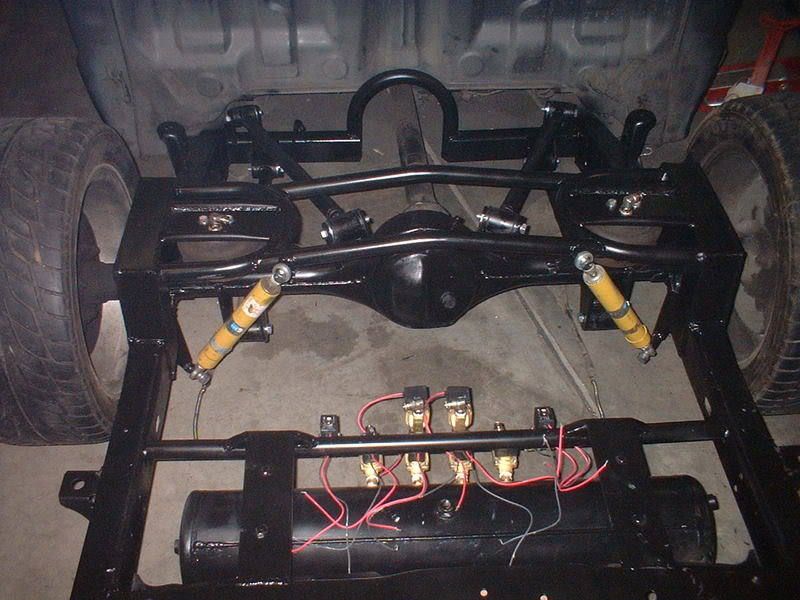

Truck up

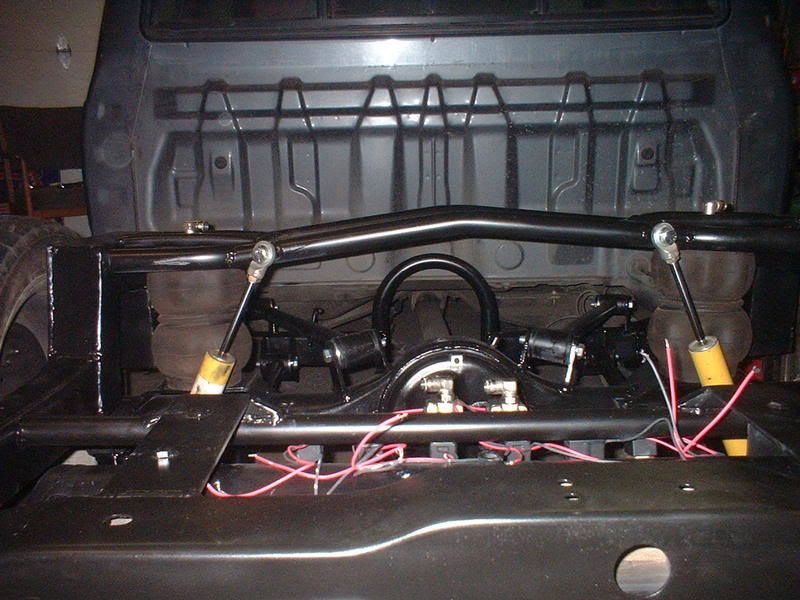

Looking back

Lower shock mount looks kinda sketchy to me. The rest looks sweet though. What bags did you end up getting for the back?

Yes, little difficult to fully visualize the lower shock mount - but more importantly, where did you get them shocks!?!? Knowing your background, I would guess they are associated with racing. Definately would make a better front shock than what I am currently using.

The lower bracket is 1 1/2" x 1" .120 wall with a dom sleeve at the bottom that is tapped for 1/2 thread. You cant really tell from the pics but they are strong...might get better ones for ya. We run coil overs on this type of setup on the racecars wich support the whole weight of the car.. It should be plenty but i will keep an eye on it. Look in the link below and you will see the type of bracket i used only its one sided instead of double.

Yes those shocks are from the racecar i tried to use them in the front but they were just to long...had them all in but when i layed out they held the front up a tad....Im gonna try and get some 6" for the front the rears are 7"

Here is a link for the shocks

so what kind of lift you gettin in the rear now?




-justin
